A25T-SVUCR 13
A25T-SVUCR 13
A25T-SVUCR 13

A25T-SVUCR 13

UGC DOR6760909
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Vendu en lots de : 1

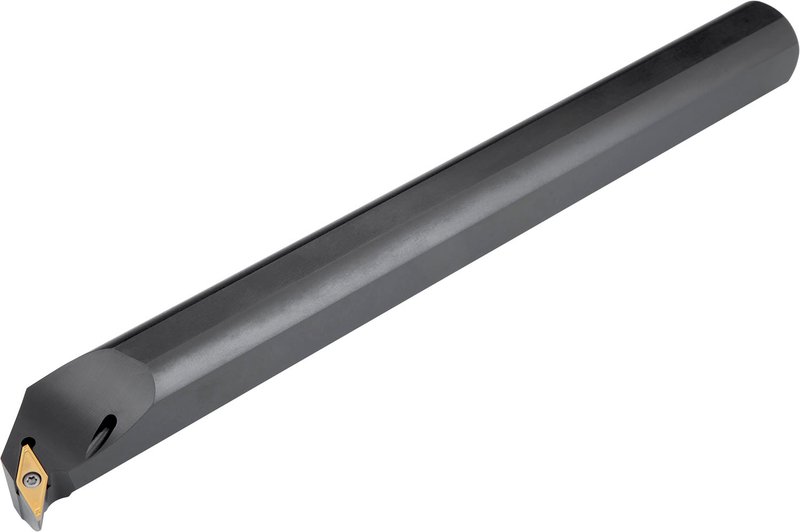

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 7,94 mm, épaisseur de 3,18 mm (désignation ISO VC.. 1303..), coupe à droite 93° avec queue déportée, en acier avec trou d'arrosage, 25 mm de diamètre x 300 mm de long pour alésage de reproduction unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SVUCR 13
Product Number6760909
Product FamilySVUB(C)(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.945 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760909
EAN3603602962553
File Type Download

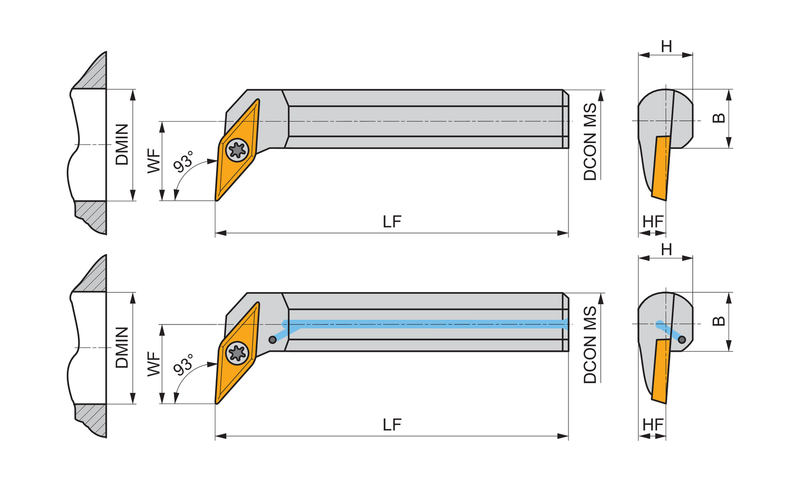

A25T-SVUCR 13 — Line Drawing PDF Download
