A10K-STFCR 09
A10K-STFCR 09
A10K-STFCR 09

A10K-STFCR 09

UGC DOR6760916
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

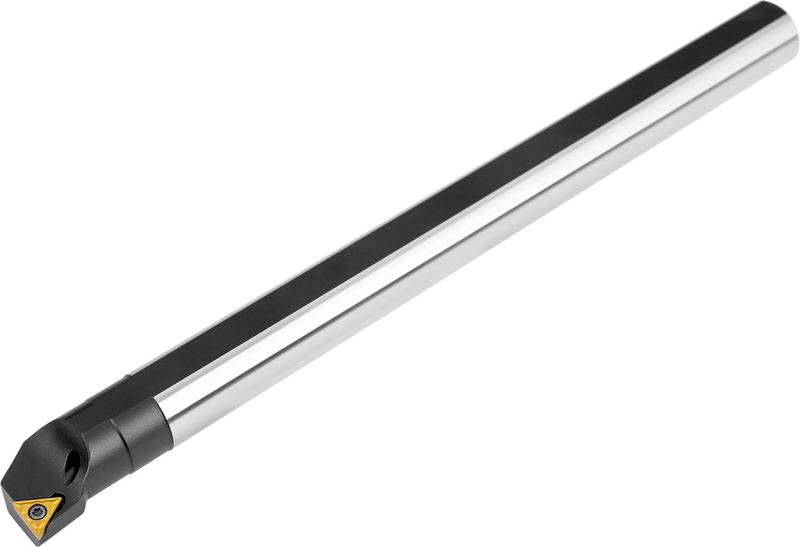

Barre d'alésage à bridage par vis pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 5,56 mm, 2,38 mm d'épaisseur (désignation ISO TC.. 0902..), coupe à droite à 90° avec queue déportée, en acier avec trou d'arrosage, 10 mm de diamètre x 125 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10K-STFCR 09
Product Number6760916
Product FamilySTFC(RL) INT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)0.354 mm
Min. Bore Dia. — in (DMIN)0.512"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760916
EAN3603602962621
File Type Download

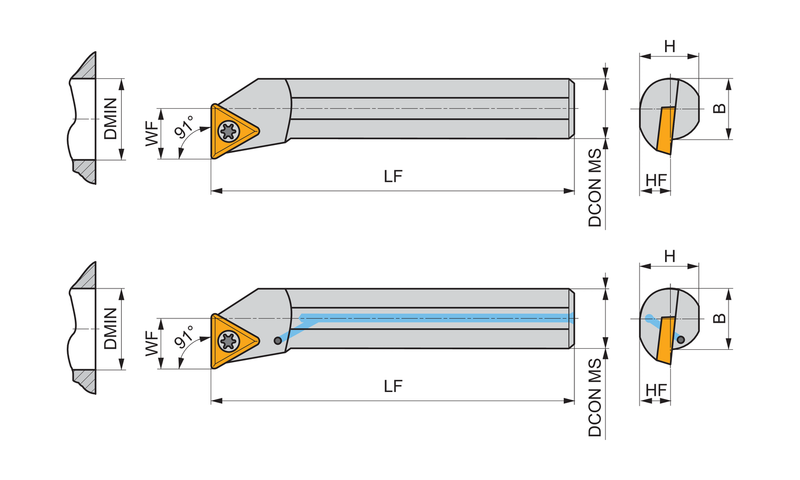

A10K-STFCR 09 — Line Drawing PDF Download
