A12M-STFCR 09
A12M-STFCR 09
A12M-STFCR 09

A12M-STFCR 09

UGC DOR6760918
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

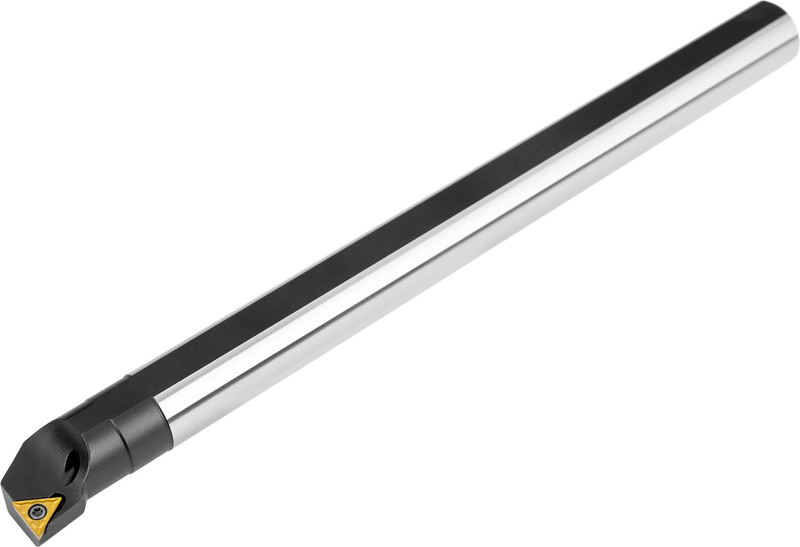

Barre d'alésage à bridage par vis pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 5,56 mm, de 2,38 mm d'épaisseur (désignation ISO TC.. 0902..), coupe à droite à 90° avec queue déportée, en acier avec trou d'arrosage, de 12 mm de diamètre et 150 mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12M-STFCR 09
Product Number6760918
Product FamilySTFC(RL) INT

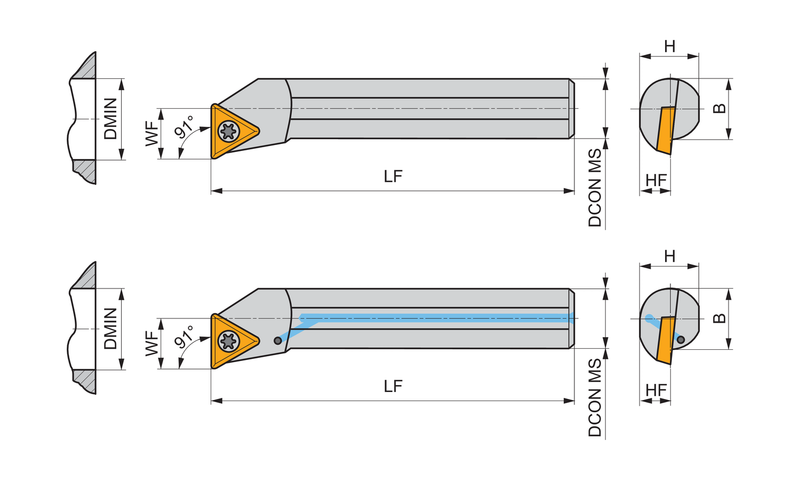

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Shank Height — mm (H)0.433 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760918
EAN3603602962645
File Type Download
A12M-STFCR 09 — Line Drawing PDF Download
