A16R-SVQCL 13
A16R-SVQCL 13
A16R-SVQCL 13

A16R-SVQCL 13

UGC DOR6760919
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.00 CAD - $205.00 CAD
$205.00 CAD
$205.00 CAD - $205.00 CAD
$205.00 CAD

Vendu en lots de : 1

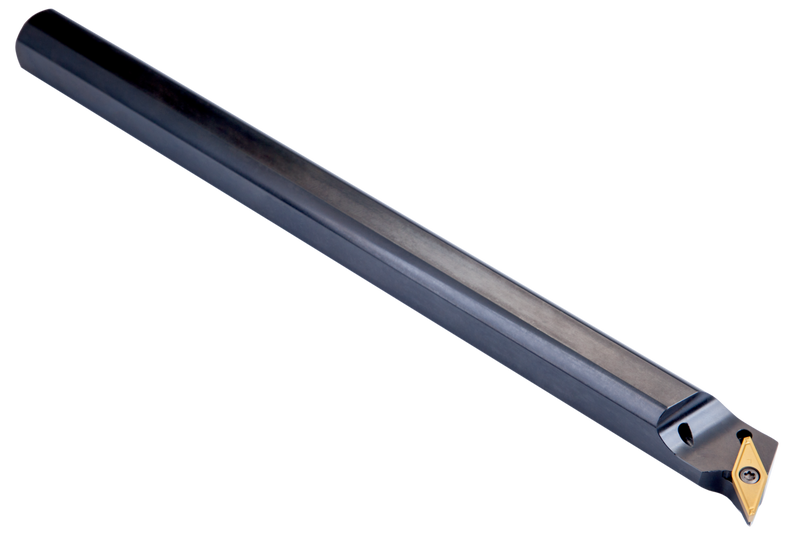

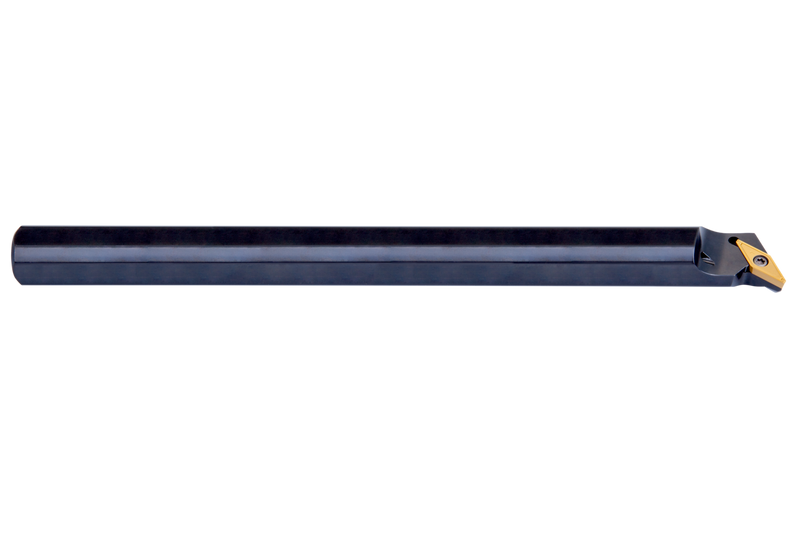

Barre d'alésage à vis pour plaquette positive en losange 35° avec un diamètre de cercle inscrit de 7,94mm, 3,18mm d'épaisseur (désignation ISO VC.. 1303.. ), coupe à gauche 107°30' avec queue déportée, acier avec trou d'arrosage, diamètre 16mm x 200mm de long pour alésage de copie unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-SVQCL 13
Product Number6760919
Product FamilySVQB(C)(RL) INT

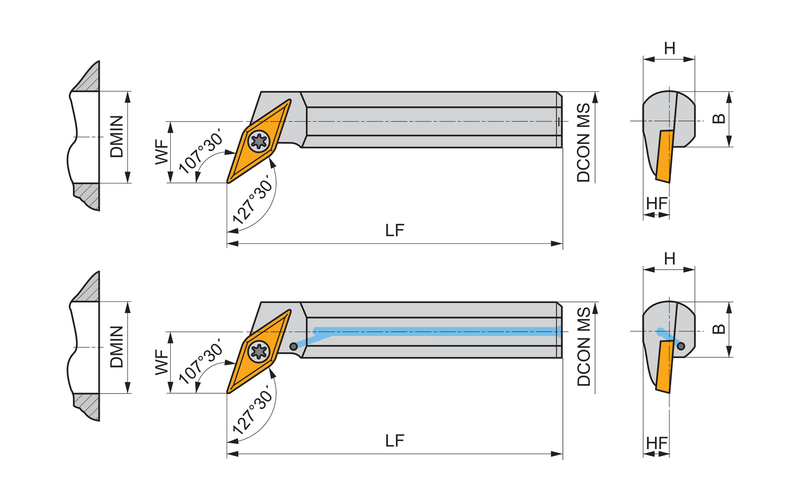

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.827"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6760919
EAN3603602962652
File Type Download
A16R-SVQCL 13 — Line Drawing PDF Download
