PHZ 90 1104-06
PHZ 90 1104-06
PHZ 90 1104-06

PHZ 90 1104-06

UGC DOR6760938
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.00 CAD - $225.00 CAD
$225.00 CAD
$225.00 CAD - $225.00 CAD
$225.00 CAD

Vendu en lots de : 1

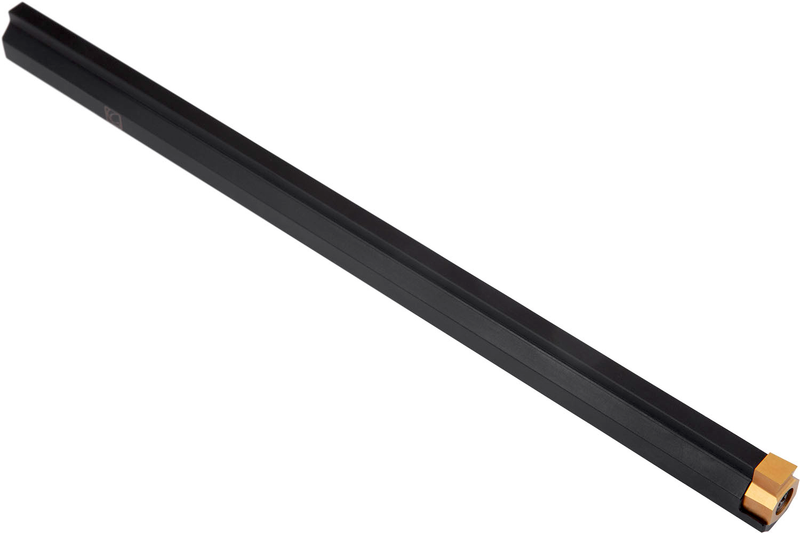

Broche CNC pour insert à un seul tranchant, taille HZ90 0604-30 pour le rainurage longitudinal de clavettes de 3 mm dans des alésages de diamètre supérieur à 9,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PHZ 90 1104-06
Product Number6760938
Product FamilyPZH
Insert Geometry
Depth of Cut Max — in (APMX)0.063"

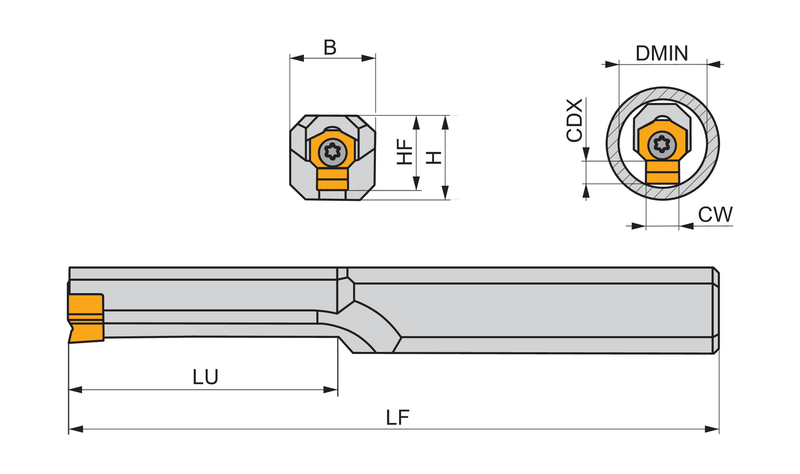

Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Shank Height — mm (H)0.445 mm
Min. Bore Dia. — in (DMIN)0.374"
Tool Information
Reference Numbers
EDP Number6760938
EAN3603602962843
File Type Download
PHZ 90 1104-06 — 3D Model STP Download
PHZ 90 1104-06 — Line Drawing PDF Download
