PHZ 90 1107-06
PHZ 90 1107-06
PHZ 90 1107-06

PHZ 90 1107-06

UGC DOR6760939
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.00 CAD - $225.00 CAD
$225.00 CAD
$225.00 CAD - $225.00 CAD
$225.00 CAD

Vendu en lots de : 1

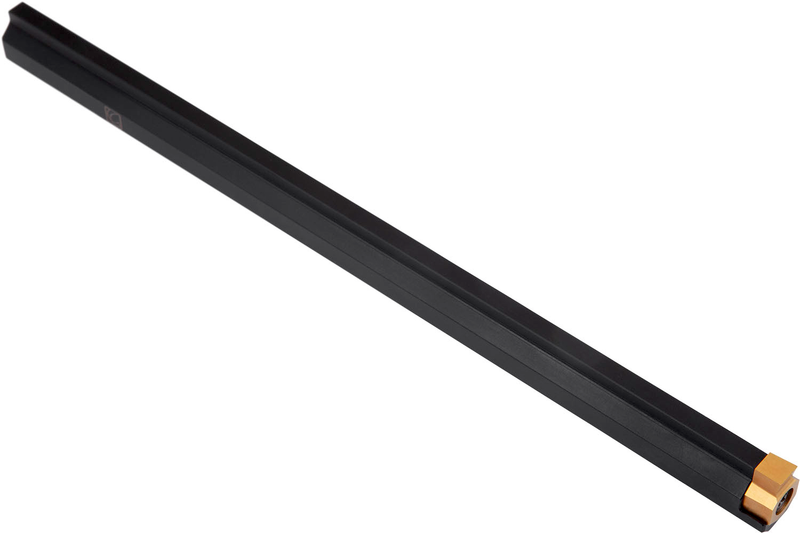

Broche CNC pour insert à une seule extrémité, taille HZ90 0604-40 ou HZ90 0604-50 pour le brochage de rainures de clavette de 4 mm dans des alésages de diamètre supérieur à 10,9 mm ou de rainures de clavette de 5 mm dans des alésages de diamètre supérieur à 11,1 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PHZ 90 1107-06
Product Number6760939
Product FamilyPHZ

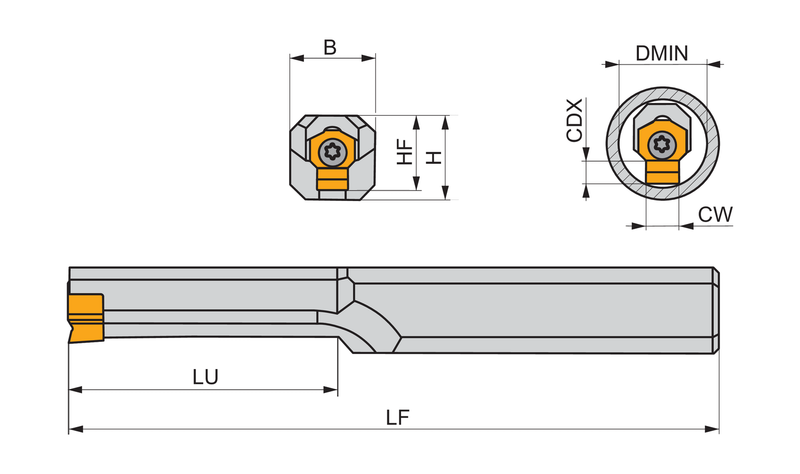

Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)2.362"
Usable Length — mm (LU)60.0 mm
Shank Height — mm (H)0.445 mm
Tool Information
Reference Numbers
EDP Number6760939
EAN3603602962850
File Type Download
PHZ 90 1107-06 — 3D Model STP Download
PHZ 90 1107-06 — Line Drawing PDF Download
