PHZ 90 1111-06
PHZ 90 1111-06
PHZ 90 1111-06

PHZ 90 1111-06

UGC DOR6760940
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$243.21 CAD - $243.21 CAD
$243.21 CAD
$243.21 CAD - $243.21 CAD
$243.21 CAD

Vendu en lots de : 1

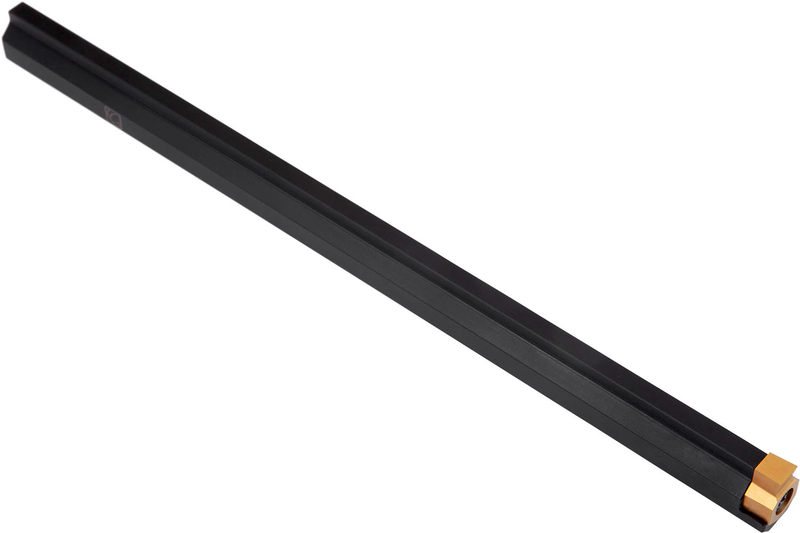

Broche CNC pour insert à un seul tranchant, taille HZ90 0604-40 ou HZ90 0604-50 pour le brochage longitudinal de gorges de clavette de 4 mm ou 5 mm dans des diamètres d'alésage supérieurs à 14 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PHZ 90 1111-06
Product Number6760940
Product FamilyPHZ

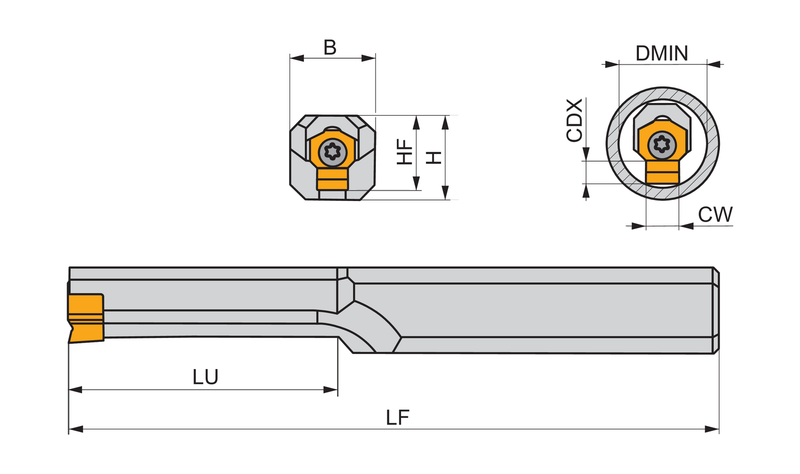

Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)2.362"
Usable Length — mm (LU)60.0 mm
Shank Height — mm (H)0.445 mm
Tool Information
Reference Numbers
EDP Number6760940
EAN3603602962867
File Type Download
PHZ 90 1111-06 — 3D Model STP Download
PHZ 90 1111-06 — Line Drawing PDF Download
