804D-46-184-S40
804D-46-184-S40
804D-46-184-S40

804D-46-184-S40

UGC DOR6760977
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,114.00 CAD - $1,114.00 CAD
$1,114.00 CAD
$1,114.00 CAD - $1,114.00 CAD
$1,114.00 CAD

Vendu en lots de : 1

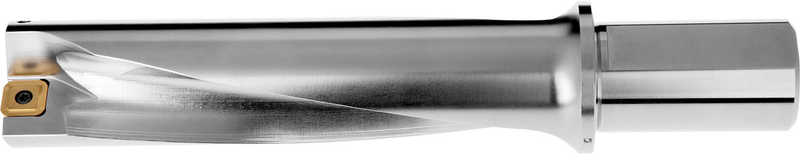

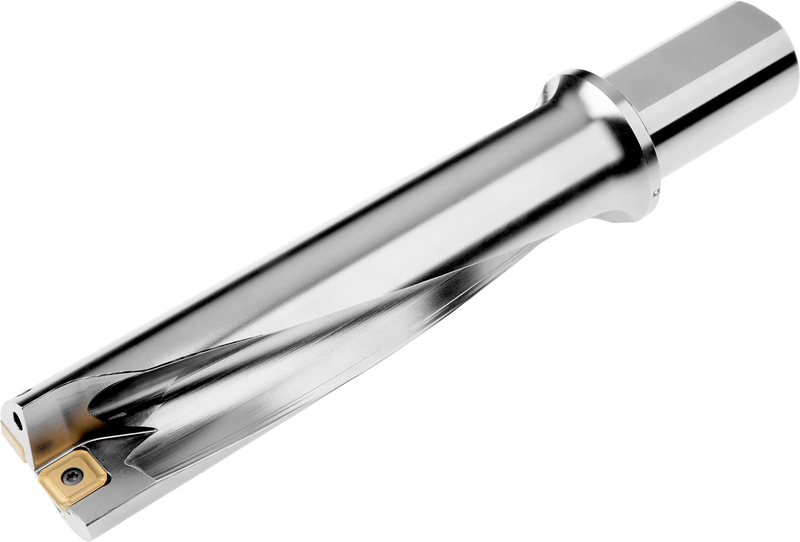

Foret à plaquettes indexables utilisant une plaquette XPET 1504.. dans la poche centrale et une plaquette SCET 1505.. dans la poche périphérique, diamètre de coupe 46mm, avec une queue cylindrique de 40mm à méplat conforme à la norme ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-46-184-S40
Product Number6760977
Product Family804D
Insert Geometry
Depth of Cut Max — in (APMX)7.2441"
Depth of Cut Max — mm (APMX)184.0 mm

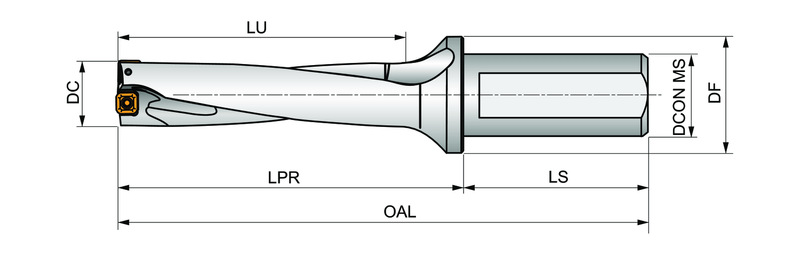

Dimensions
Cutting Diameter — in (DC)1.811"
Cutting Diameter — mm (DC)46.0 mm
Overall Length — in (OAL)10.984"
Overall Length — mm (OAL)279.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)7.5591"
Usable Length — mm (LU)192.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6760977
EAN3603602963239
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-46-184-S40 — 3D Model STP Download
804D-46-184-S40 — 2D Model DXF Download
804D-46-184-S40 — Line Drawing PDF Download
