A25R-SWLCR 08
A25R-SWLCR 08
A25R-SWLCR 08

A25R-SWLCR 08

UGC DOR6761025
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

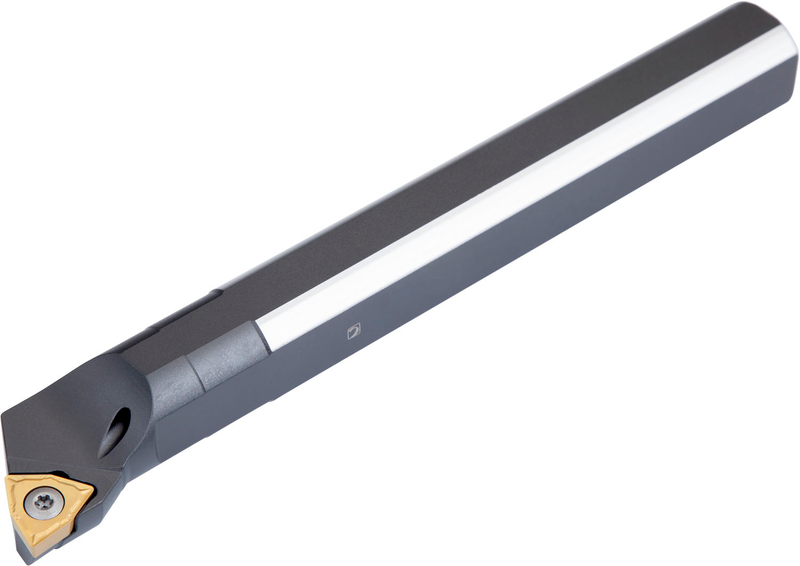

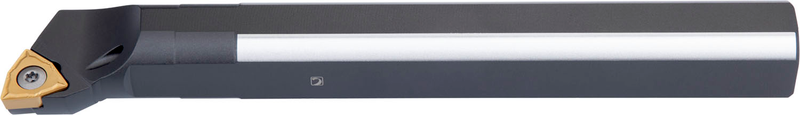

Barre d'alésage à bridage par vis pour plaquette triangulaire positive 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WC.. 0804.. ), droite 95° avec coupe latérale et frontale, queue déportée, acier avec trou d'arrosage, 25 mm de diamètre x 200 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25R-SWLCR 08
Product Number6761025
Product FamilyCVFO(AR) INT

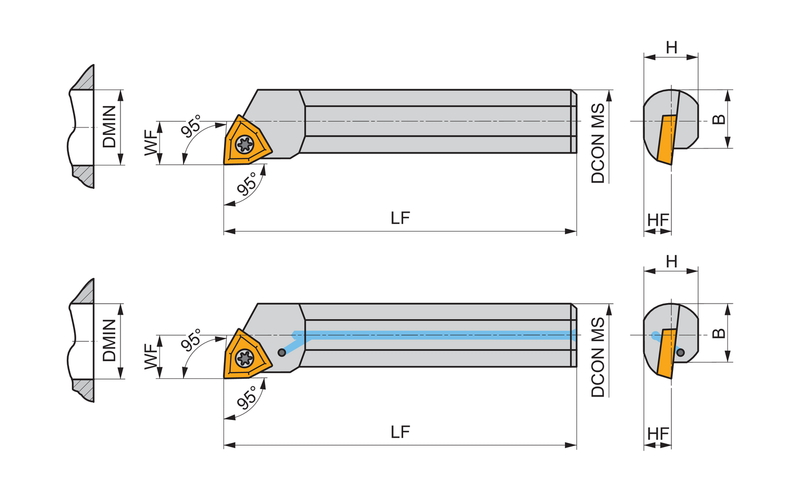

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761025
EAN3603602963710
File Type Download
A25R-SWLCR 08 — 3D Model STP Download
A25R-SWLCR 08 — Line Drawing PDF Download
