A32S-SWLCR 08
A32S-SWLCR 08
A32S-SWLCR 08

A32S-SWLCR 08

UGC DOR6761027
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

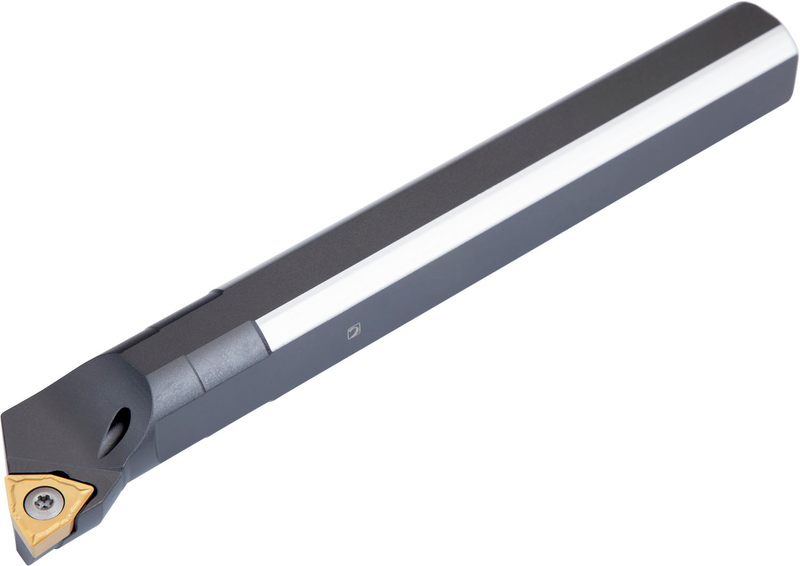

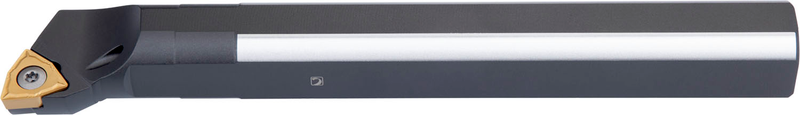

Barre d'alésage à serrage par vis pour plaquette trigon positive 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO WC.. 0804.. ), coupe à droite 95° latérale et frontale avec queue déportée, acier avec trou d'arrosage, 32 mm de diamètre x 250 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-SWLCR 08
Product Number6761027
Product FamilySWLC(RL) INT

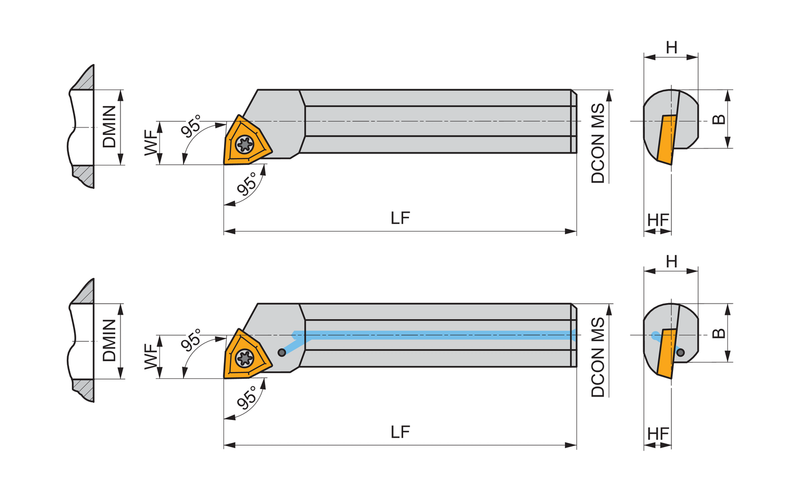

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761027
EAN3603602963734
File Type Download
A32S-SWLCR 08 — 3D Model STP Download
A32S-SWLCR 08 — Line Drawing PDF Download
