UGC DOR6761029
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.00 CAD - $365.00 CAD
$365.00 CAD
$365.00 CAD - $365.00 CAD
$365.00 CAD

Vendu en lots de : 1

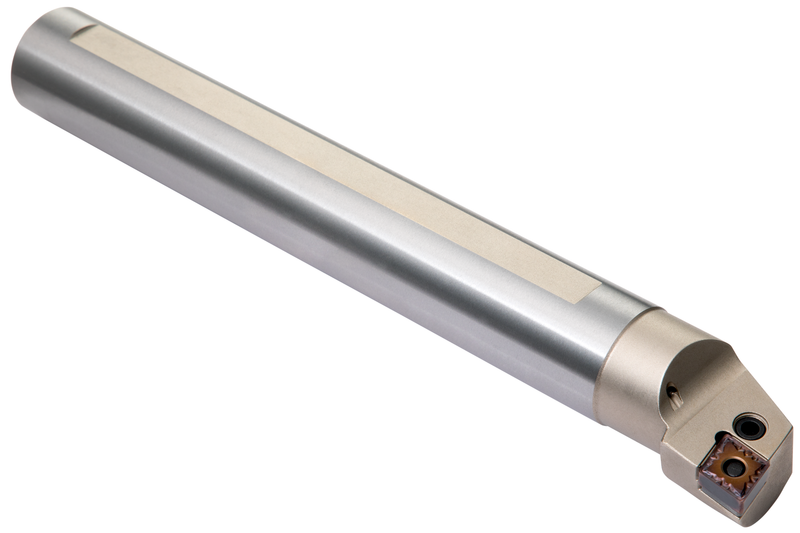

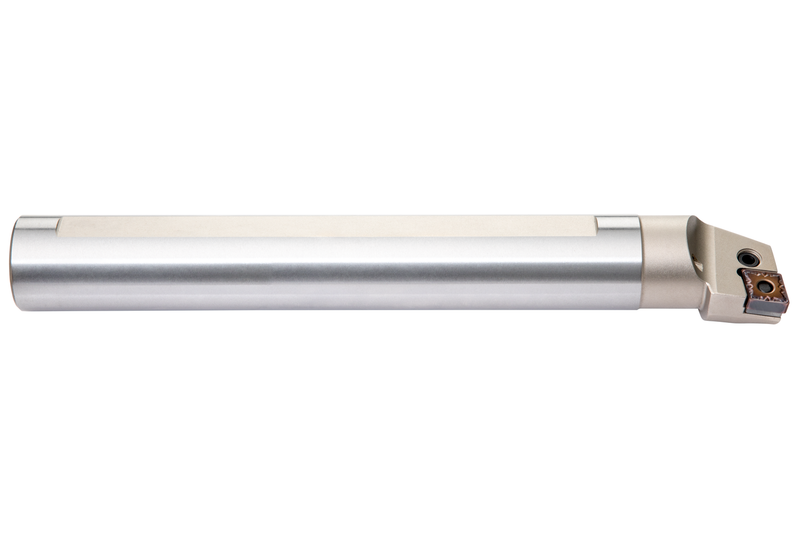

Barre d'alésage à levier pour insert négatif rhomboïdal 80° avec un diamètre de cercle inscrit de 9,525mm, 3,18mm d'épaisseur (désignation ISO CN.. 0903..), coupe latérale et frontale à 95° à gauche avec queue déportée, en acier avec trou d'arrosage, 16mm de diamètre x 150mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16M-PCLNL 09
Product Number6761029
Product FamilyPCLN(RL) INT

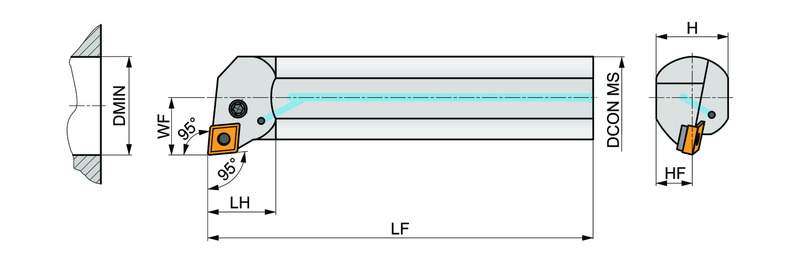

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761029
EAN3603602963758
File Type Download
A16M-PCLNL 09 — 3D Model STP Download
A16M-PCLNL 09 — 2D Model DXF Download
A16M-PCLNL 09 — Line Drawing PDF Download
