A20Q-PCLNR 09
A20Q-PCLNR 09
A20Q-PCLNR 09

A20Q-PCLNR 09

UGC DOR6761032
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$392.00 CAD - $392.00 CAD
$392.00 CAD
$392.00 CAD - $392.00 CAD
$392.00 CAD

Vendu en lots de : 1

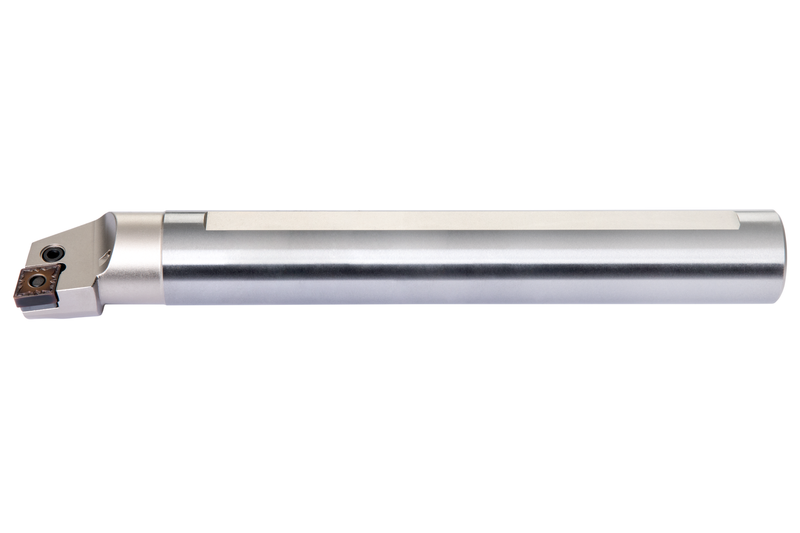

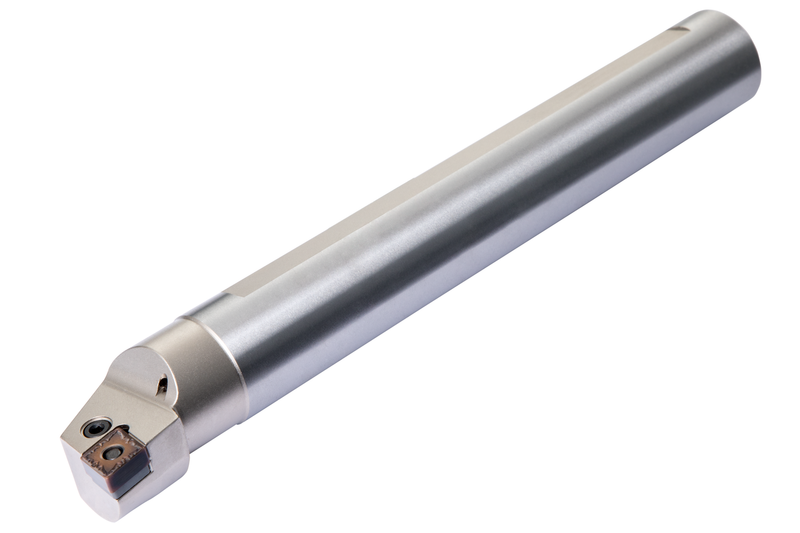

Alésoir à levier pour plaquette négative de 80° en forme de losange avec un cercle inscrit de 9,525 mm de diamètre et une épaisseur de 3,18 mm (désignation ISO CN.. 0903.. ), coupe à droite 95° latérale et frontale avec queue déportée, en acier avec trou d'arrosage, diamètre 20 mm x 180 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20Q-PCLNR 09
Product Number6761032
Product FamilyPCLN(RL) INT

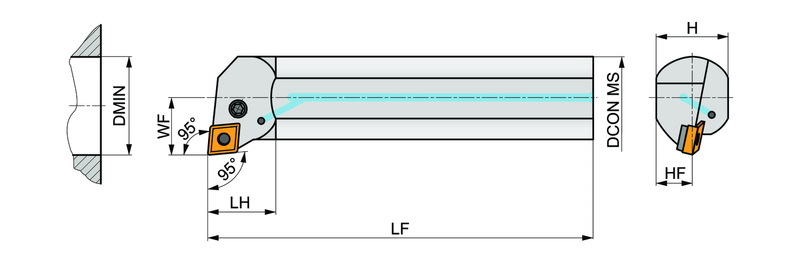

Dimensions
Functional Length — in (LF)7.087"
Functional Length — mm (LF)180.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761032
EAN3603602963789
File Type Download
A20Q-PCLNR 09 — 3D Model STP Download
A20Q-PCLNR 09 — 2D Model DXF Download
A20Q-PCLNR 09 — Line Drawing PDF Download
