A16M-PWLNL 0604
A16M-PWLNL 0604
A16M-PWLNL 0604

A16M-PWLNL 0604

UGC DOR6761033
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.00 CAD - $353.00 CAD
$353.00 CAD
$353.00 CAD - $353.00 CAD
$353.00 CAD

Vendu en lots de : 1

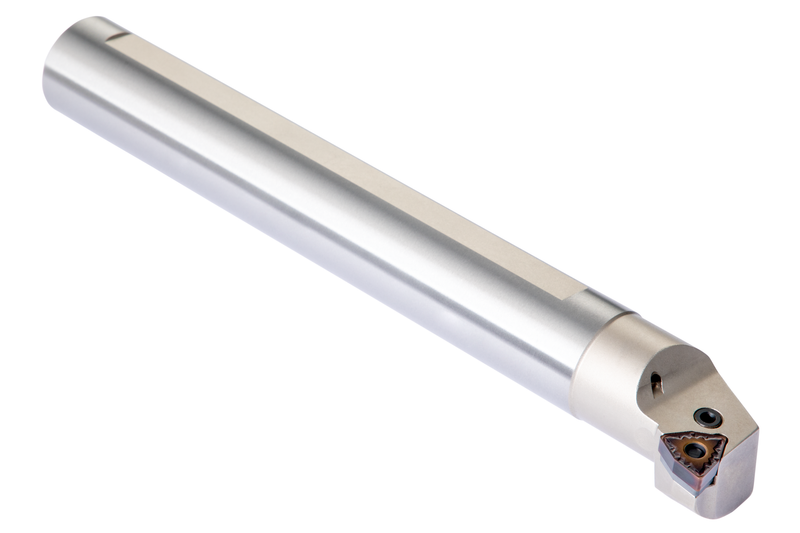

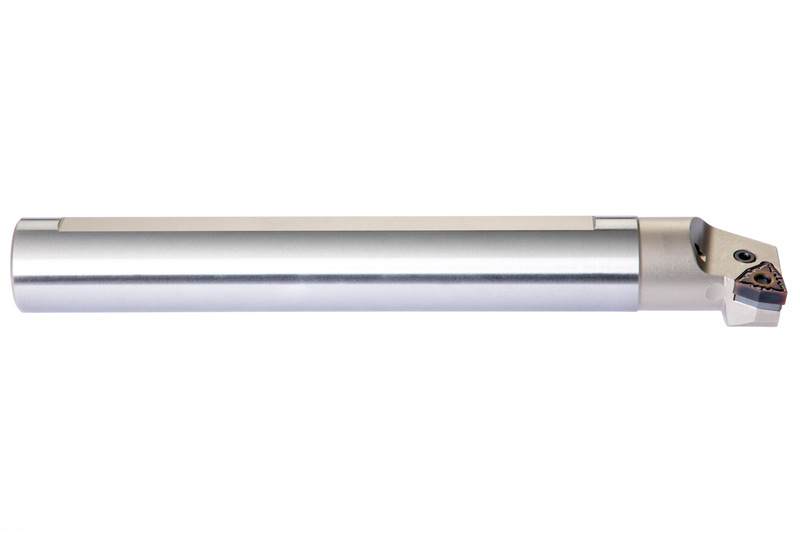

Barre d'alésage à levier pour plaquette trigone négative 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO WN.. 0604..), coupe latérale et frontale de 95° à gauche avec queue déportée, acier avec trou d'arrosage, 16 mm de diamètre x 150 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16M-PWLNL 0604
Product Number6761033
Product FamilyPWLN(RL) INT

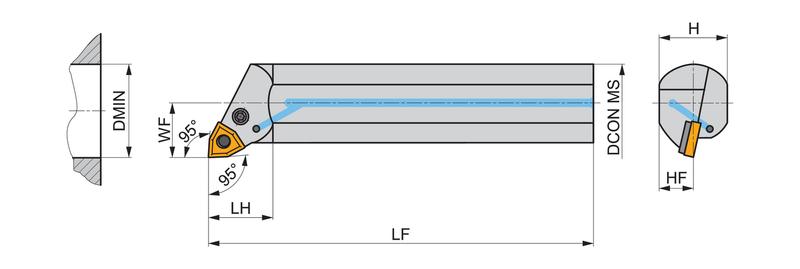

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761033
EAN3603602963796
File Type Download
A16M-PWLNL 0604 — 3D Model STP Download
A16M-PWLNL 0604 — 2D Model DXF Download
A16M-PWLNL 0604 — Line Drawing PDF Download
