42A03R-S19PD09-C
42A03R-S19PD09-C
42A03R-S19PD09-C

42A03R-S19PD09-C

UGC DOR6761256
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$660.00 CAD - $660.00 CAD
$660.00 CAD
$660.00 CAD - $660.00 CAD
$660.00 CAD

Vendu en lots de : 1

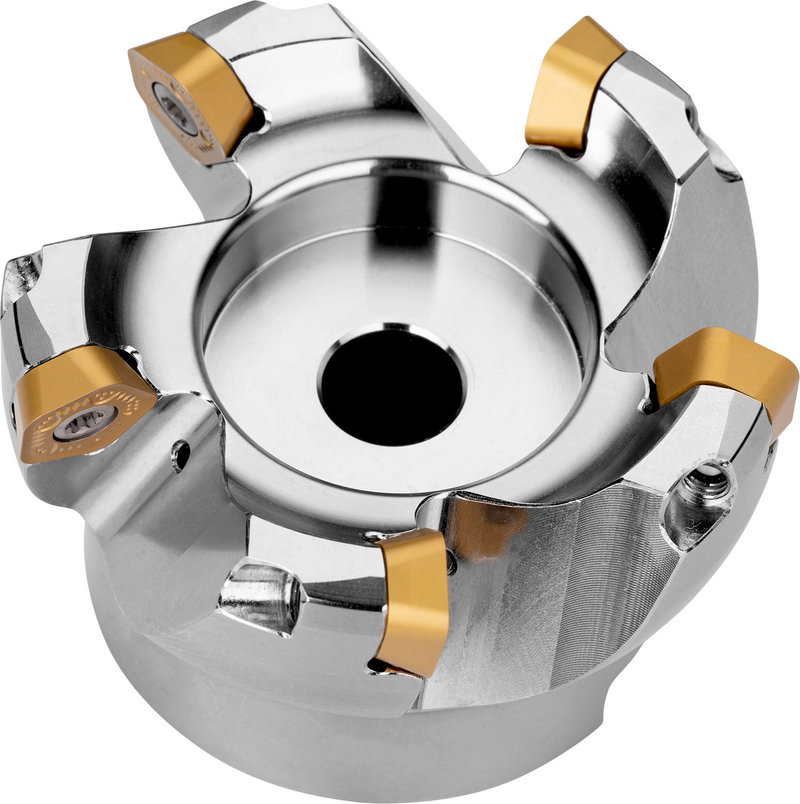

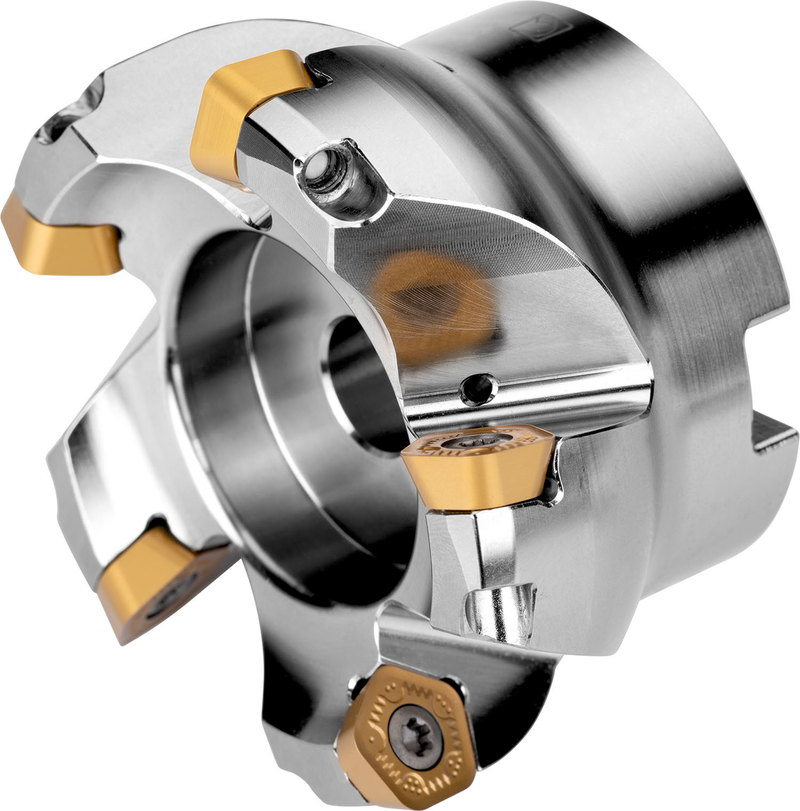

Fraise grande avance à géométrie positive/négative qui utilise 3 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 42mm avec un angle d'attaque de 19° et un alésage de connexion de 16mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage par l'outil pour le surfaçage avec une profondeur de coupe maximale de 2.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42A03R-S19PD09-C
Product Number6761256
Product FamilySPD09

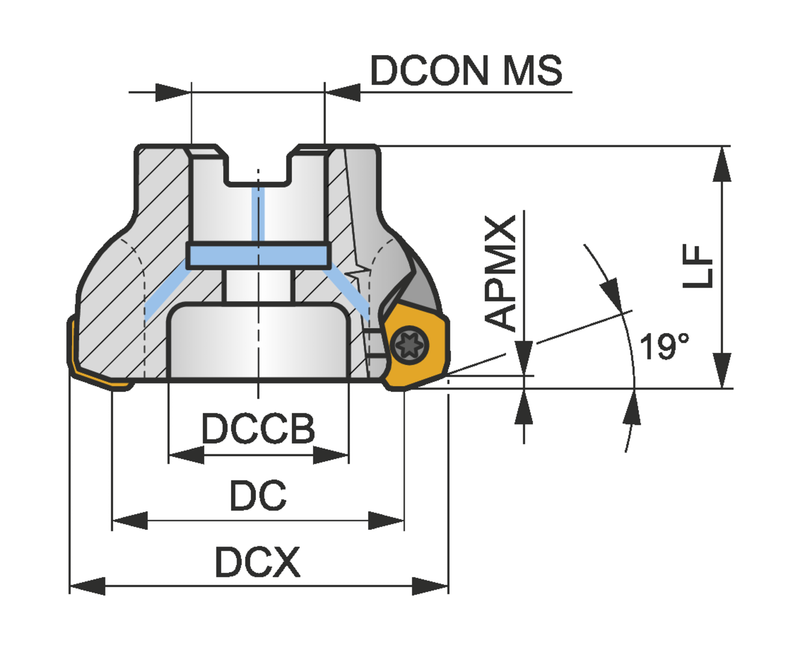

Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)1.083"
Cutting Diameter — mm (DC)27.5 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSPD09
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761256
EAN3603602966025
File Type Download
42A03R-S19PD09-C — 3D Model STP Download
42A03R-S19PD09-C — 2D Model DXF Download
42A03R-S19PD09-C — Line Drawing PDF Download
