BT 340 027 130 R
BT 340 027 130 R

BT 340 027 130 R

UGC DOR6761428
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$641.00 CAD - $641.00 CAD
$641.00 CAD
$641.00 CAD - $641.00 CAD
$641.00 CAD

Vendu en lots de : 1

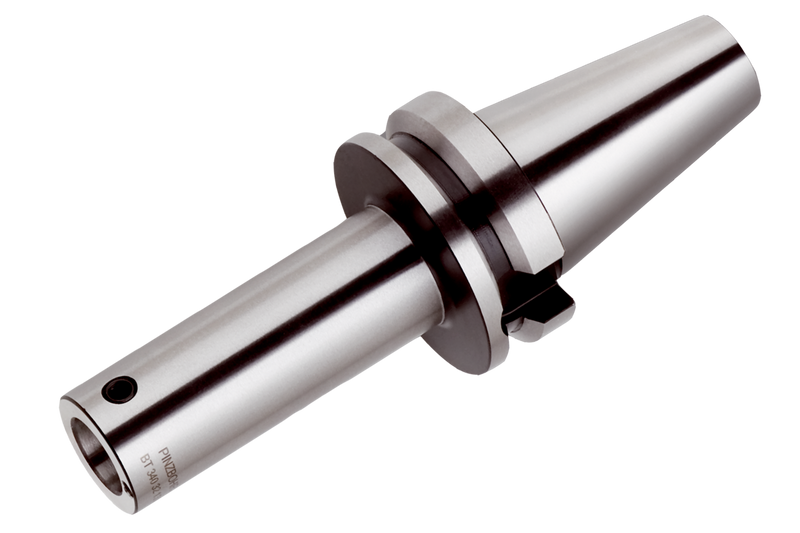

Queue d'outil pour système d'alésage modulaire taille 27 avec queue conique BT 40 selon JIS B 6339, alimentation en liquide de refroidissement par l'intérieur et longueur de dépassement de 130 (y compris la tête d'alésage)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BT 340 027 130 R
Product Number6761428
Product FamilyTP-SP

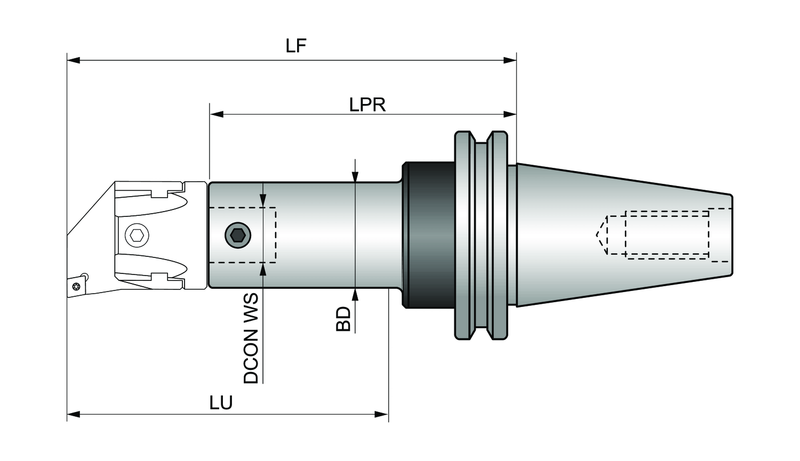

Dimensions
Usable Length — mm (LU)130.0 mm
Functional Length — mm (LF)160.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761428
EAN3603602967749
File Type Download
BT 340 027 130 R — Line Drawing PDF Download
