BT 340 042 200 R
BT 340 042 200 R

BT 340 042 200 R

UGC DOR6761434
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$819.00 CAD - $819.00 CAD
$819.00 CAD
$819.00 CAD - $819.00 CAD
$819.00 CAD

Vendu en lots de : 1

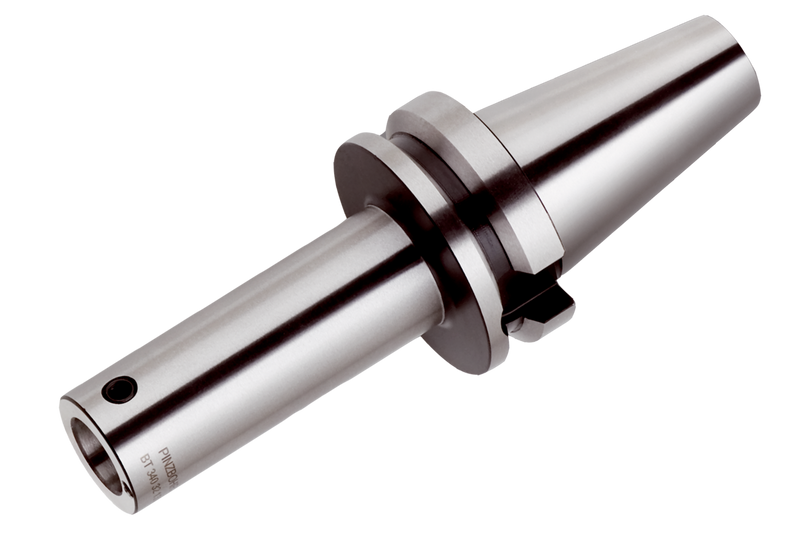

Porte-outil pour système d'alésage modulaire taille 42 avec queue conique BT 40 selon JIS B 6339, arrosage central et longueur de dépassement de 200 (tête d'alésage incluse)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BT 340 042 200 R
Product Number6761434
Product FamilyBT-BS

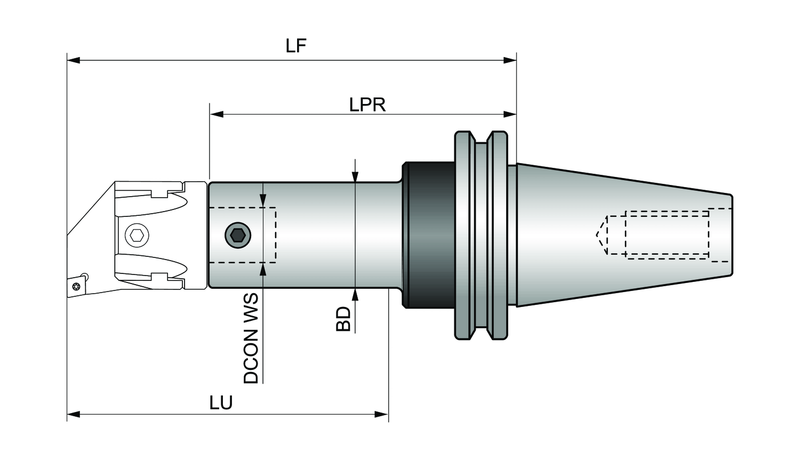

Dimensions
Usable Length — mm (LU)200.0 mm
Functional Length — mm (LF)230.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761434
EAN3603602967800
File Type Download
BT 340 042 200 R — Line Drawing PDF Download
