BT 350 022 100 R
BT 350 022 100 R

BT 350 022 100 R

UGC DOR6761443
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$783.00 CAD - $783.00 CAD
$783.00 CAD
$783.00 CAD - $783.00 CAD
$783.00 CAD

Vendu en lots de : 1

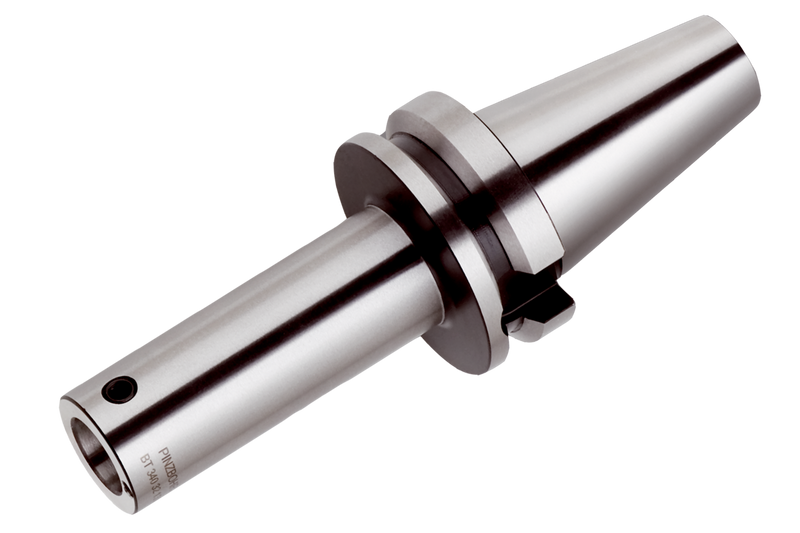

Porte-outil pour système d'alésage modulaire taille 22 avec cône BT 50 selon JIS B 6339, alimentation en liquide de refroidissement et longueur de dépassement de 100 (tête d'alésage incluse)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BT 350 022 100 R
Product Number6761443
Product FamilyBT-BS
Dimensions
Usable Length — mm (LU)100.0 mm
Functional Length — mm (LF)141.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761443
EAN3603602967893
File Type Download

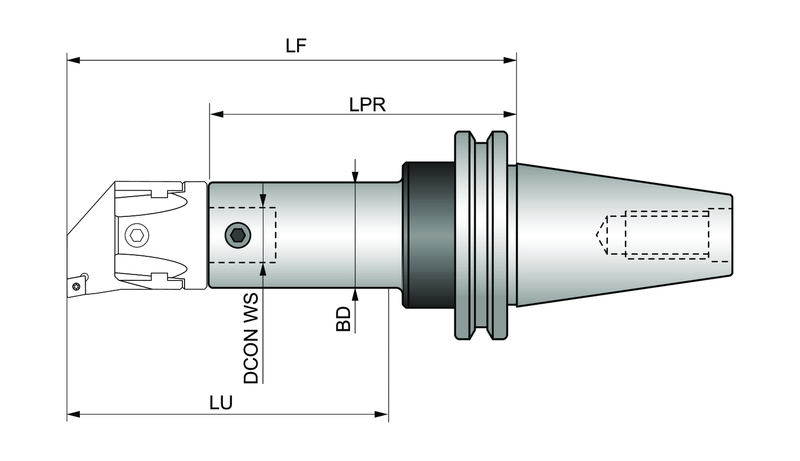

BT 350 022 100 R — Line Drawing PDF Download
