AS 350 022 080 R
AS 350 022 080 R

AS 350 022 080 R

UGC DOR6761487
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$775.00 CAD - $775.00 CAD
$775.00 CAD
$775.00 CAD - $775.00 CAD
$775.00 CAD

Vendu en lots de : 1

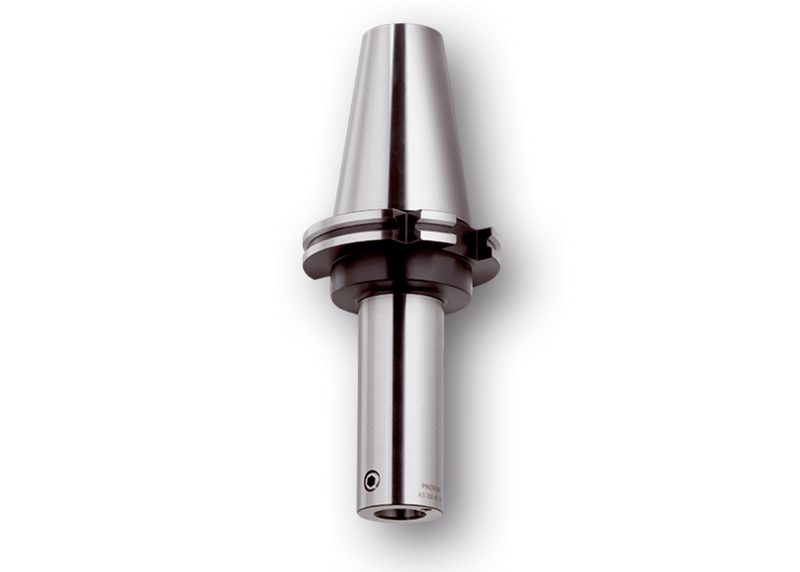

Queue d'outil pour système d'alésage modulaire taille 22 avec cône SK 50 (DIN 69871) selon ISO/DIS 7388-1, avec alimentation de liquide de coupe interne et une longueur de dépassement de 80 (tête d'alésage comprise)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)AS 350 022 080 R
Product Number6761487
Product Family69871-BS

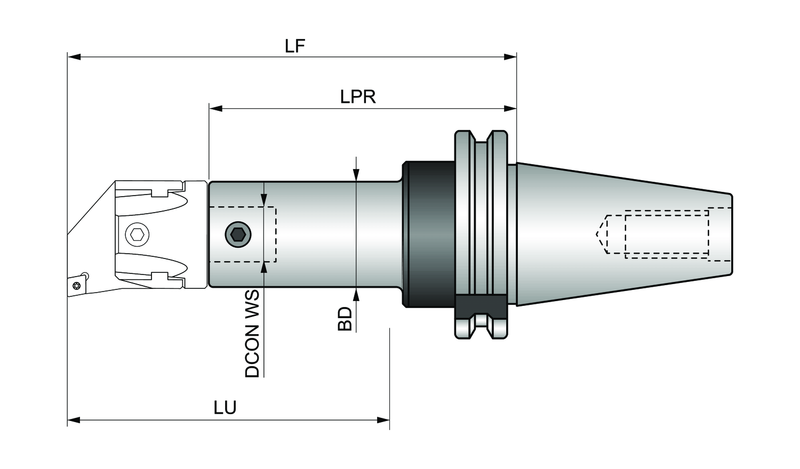

Dimensions
Usable Length — mm (LU)80.0 mm
Functional Length — mm (LF)118.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761487
EAN3603602968333
File Type Download
AS 350 022 080 R — Line Drawing PDF Download
