AS 350 042 200 R
AS 350 042 200 R

AS 350 042 200 R

UGC DOR6761496
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,068.00 CAD - $1,068.00 CAD
$1,068.00 CAD
$1,068.00 CAD - $1,068.00 CAD
$1,068.00 CAD

Vendu en lots de : 1

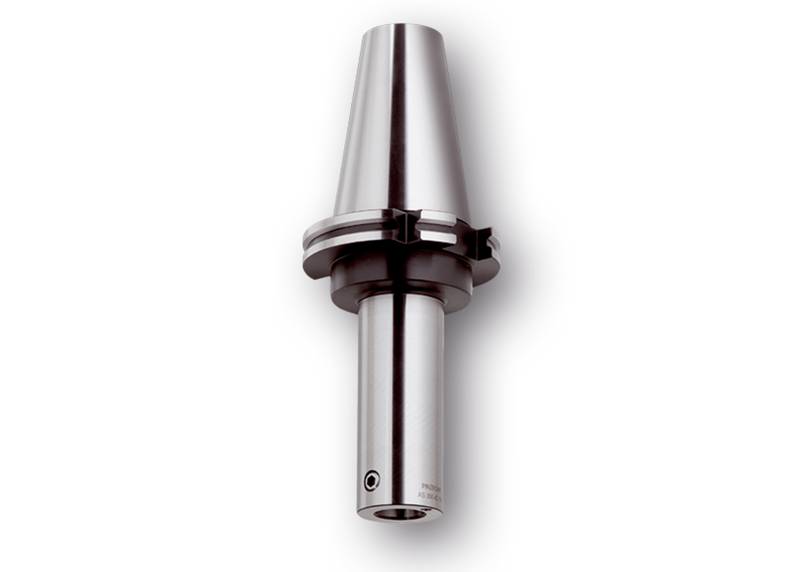

Porte-outil pour système d'alésage modulaire taille 42 avec queue conique SK 50 (DIN 69871) selon ISO/DIS 7388-1, alimentation par arrosage interne et longueur d'extension de 200 (tête d'alésage comprise)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)AS 350 042 200 R
Product Number6761496
Product Family69871-BS
Dimensions
Usable Length — mm (LU)200.0 mm
Functional Length — mm (LF)238.0 mm
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6761496
EAN3603602968425
File Type Download

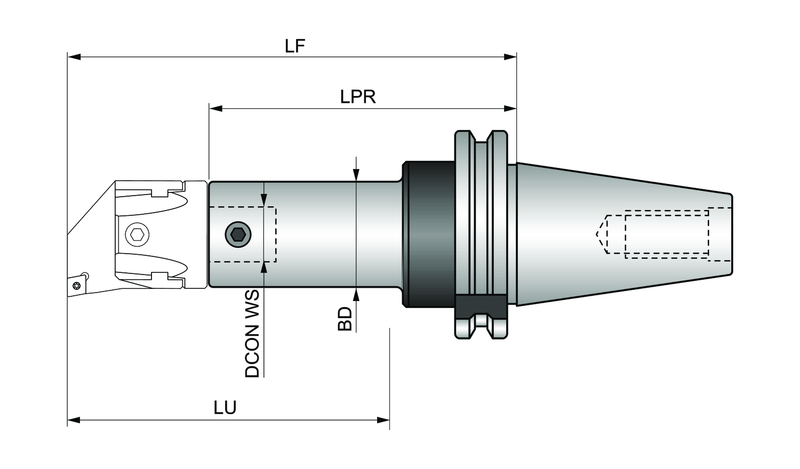

AS 350 042 200 R — Line Drawing PDF Download
