80A08R-S45HN09C-CF
80A08R-S45HN09C-CF
80A08R-S45HN09C-CF

80A08R-S45HN09C-CF

UGC DOR6761568
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,183.00 CAD - $1,183.00 CAD
$1,183.00 CAD
$1,183.00 CAD - $1,183.00 CAD
$1,183.00 CAD

Vendu en lots de : 1

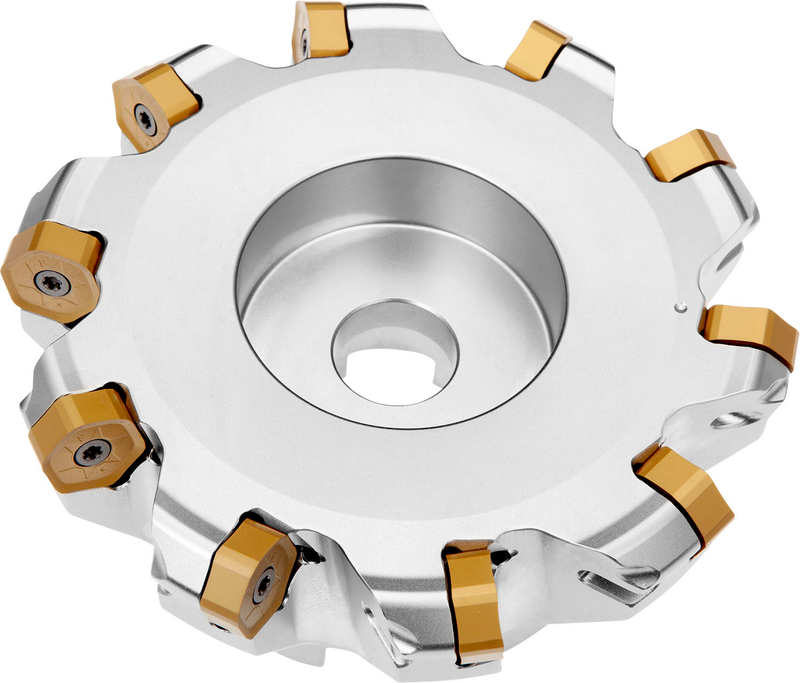

Fraise à surfacer avec géométrie double négative qui utilise 8 plaquettes double face HNGX 0906AN.. ou XNGX 0906AN.., diamètre de coupe 80 à 91,7mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 27mm selon DIN 8030-A, longueur en porte-à-faux de 50mm, arrosage centralisé et pas différentiel pour le surfaçage, l'usinage en ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A08R-S45HN09C-CF
Product Number6761568
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

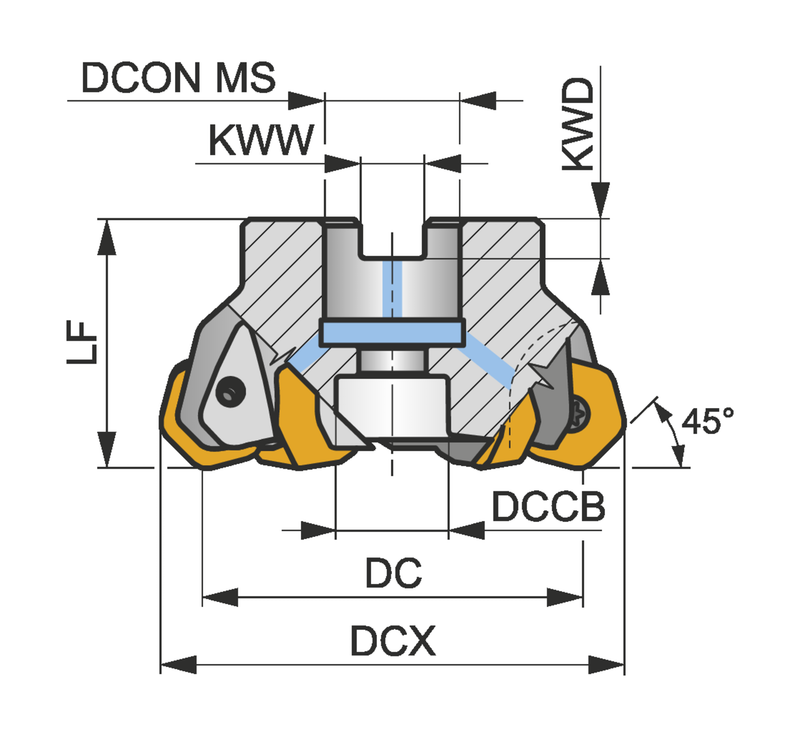

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSHN09C
ShankFraise coquille DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761568
EAN3603602969149
File Type Download
80A08R-S45HN09C-CF — 3D Model STP Download
80A08R-S45HN09C-CF — 2D Model DXF Download
80A08R-S45HN09C-CF — Line Drawing PDF Download
