100A06R-S45HN09C-CF
100A06R-S45HN09C-CF
100A06R-S45HN09C-CF

100A06R-S45HN09C-CF

UGC DOR6761571
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,231.00 CAD - $1,231.00 CAD
$1,231.00 CAD
$1,231.00 CAD - $1,231.00 CAD
$1,231.00 CAD

Vendu en lots de : 1

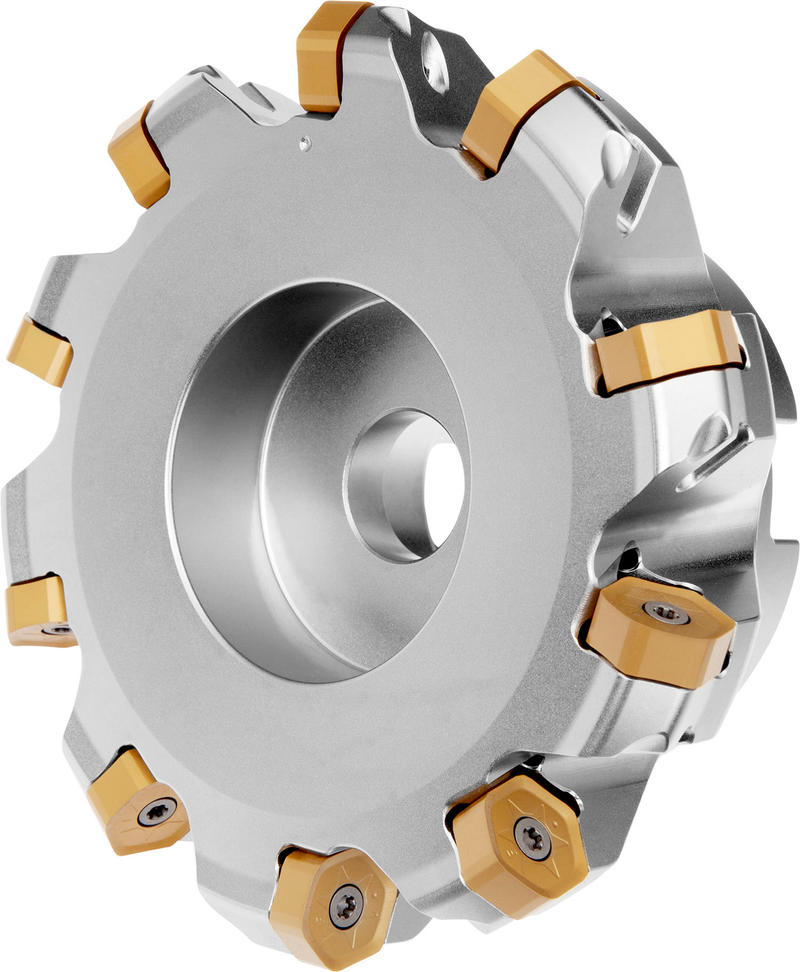

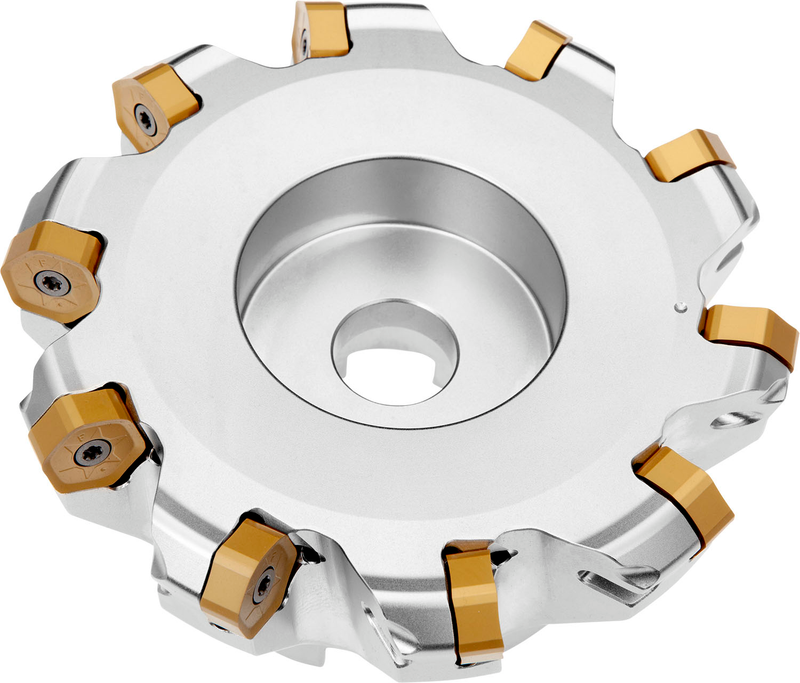

Fraise à surfacer avec une géométrie double négative qui utilise 6 plaquettes double face HNGX 0906AN.. ou XNGX 0906AN.., diamètre de coupe 100 à 111,7 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage centralisé et pas différentiel pour le surfaçage, le fraisage en rampe, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A06R-S45HN09C-CF
Product Number6761571
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

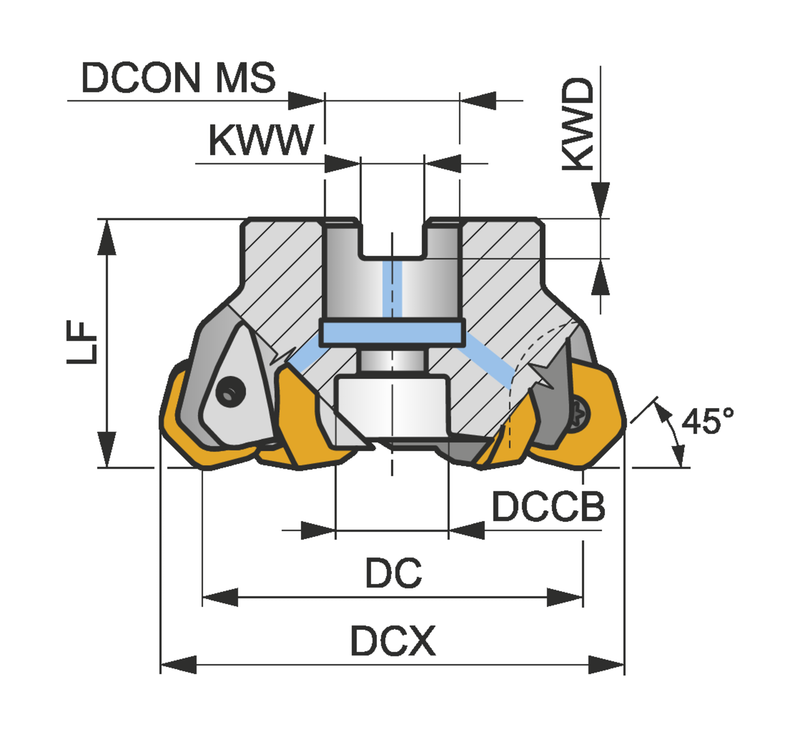

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSHN09C
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761571
EAN3603602969170
File Type Download
100A06R-S45HN09C-CF — 3D Model STP Download
100A06R-S45HN09C-CF — 2D Model DXF Download
100A06R-S45HN09C-CF — Line Drawing PDF Download
