125A10R-S45HN09C-CF
125A10R-S45HN09C-CF
125A10R-S45HN09C-CF

125A10R-S45HN09C-CF

UGC DOR6761574
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,574.00 CAD - $1,574.00 CAD
$1,574.00 CAD
$1,574.00 CAD - $1,574.00 CAD
$1,574.00 CAD

Vendu en lots de : 1

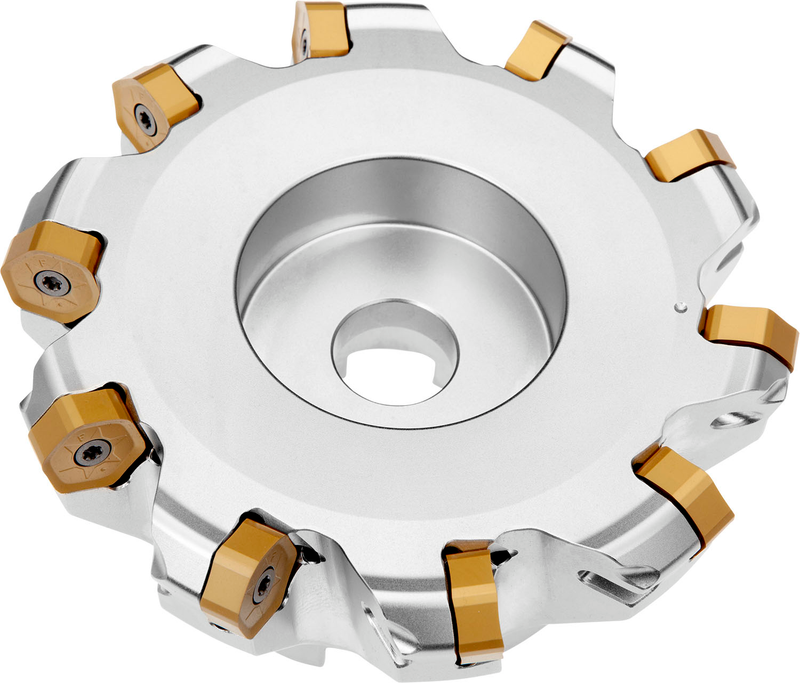

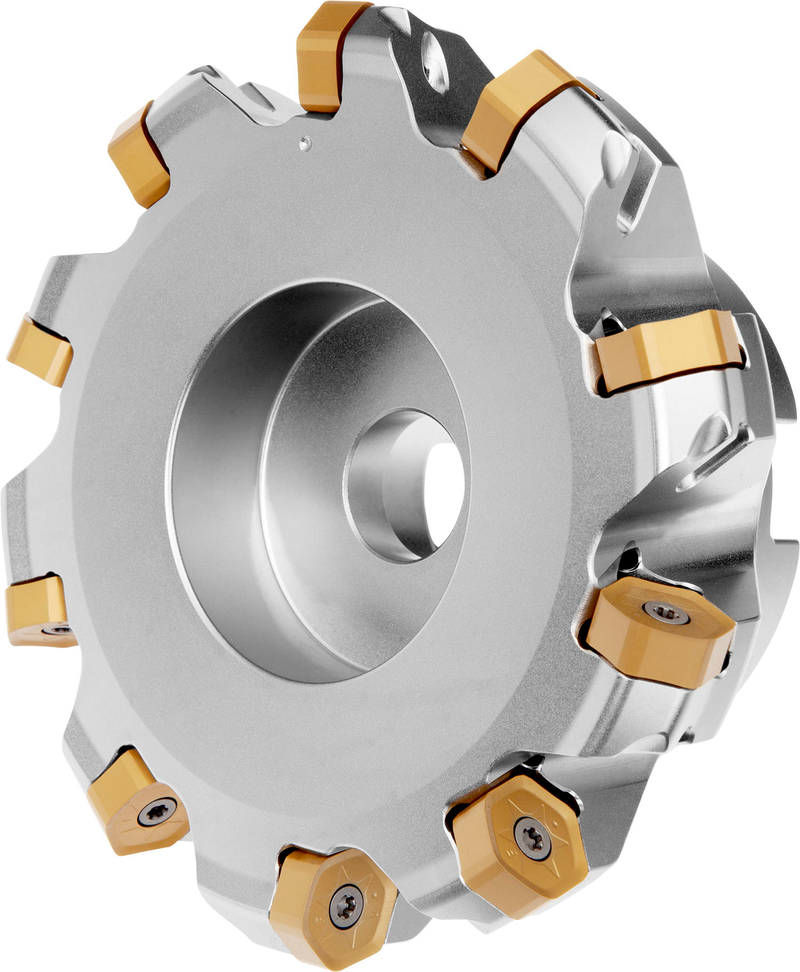

Fraise à surfacer à géométrie double négative qui utilise 10 plaquettes double face HNGX 0906AN... ou XNGX 0906AN..., diamètre de coupe 125 à maximum 136,7 mm avec un angle d'attaque de 45° et un alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm, arrosage central et pas différentiel pour le surfaçage, l'usinage en rampe, le fraisage progressif en plongée et le chanfreinage avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A10R-S45HN09C-CF
Product Number6761574
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

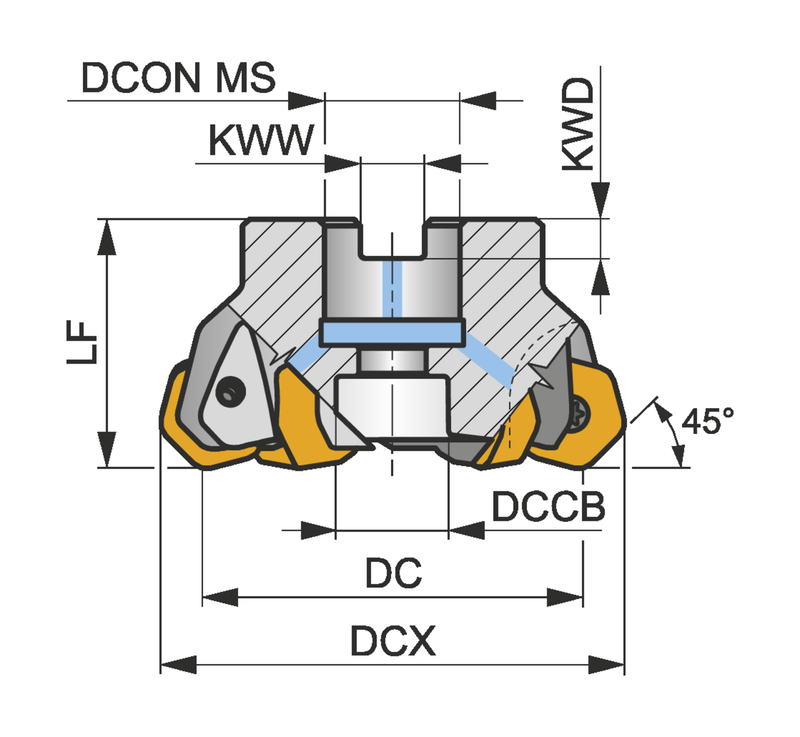

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSHN09C
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761574
EAN3603602969200
File Type Download
125A10R-S45HN09C-CF — 3D Model STP Download
125A10R-S45HN09C-CF — 2D Model DXF Download
125A10R-S45HN09C-CF — Line Drawing PDF Download
