125A06R-S45HN09C-CF
125A06R-S45HN09C-CF
125A06R-S45HN09C-CF

125A06R-S45HN09C-CF

UGC DOR6761575
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,437.00 CAD - $1,437.00 CAD
$1,437.00 CAD
$1,437.00 CAD - $1,437.00 CAD
$1,437.00 CAD

Vendu en lots de : 1

Fraise à surfacer à géométrie double négative qui utilise 6 plaquettes double face HNGX 0906AN.. ou XNGX 0906AN.., diamètre de coupe de 125 à 136,7 mm maximum avec un angle d'attaque de 45° et un alésage de raccordement de 40 mm selon DIN 8030-A, une longueur de dépassement de 63 mm, un arrosage interne et un pas différentiel pour le surfaçage, le ramping, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A06R-S45HN09C-CF
Product Number6761575
Product FamilySHN09C
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

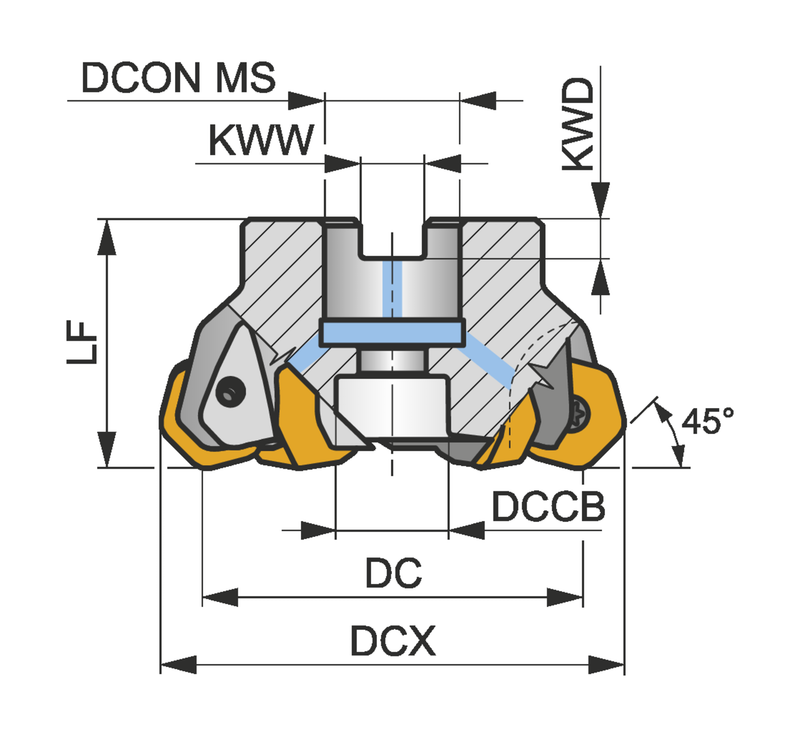

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSHN09C
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761575
EAN3603602969217
File Type Download
125A06R-S45HN09C-CF — 3D Model STP Download
125A06R-S45HN09C-CF — 2D Model DXF Download
125A06R-S45HN09C-CF — Line Drawing PDF Download
