12L2R045A20-SZP12
12L2R045A20-SZP12
12L2R045A20-SZP12

12L2R045A20-SZP12

UGC DOR6761621
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$520.00 CAD - $520.00 CAD
$520.00 CAD
$520.00 CAD - $520.00 CAD
$520.00 CAD

Vendu en lots de : 1

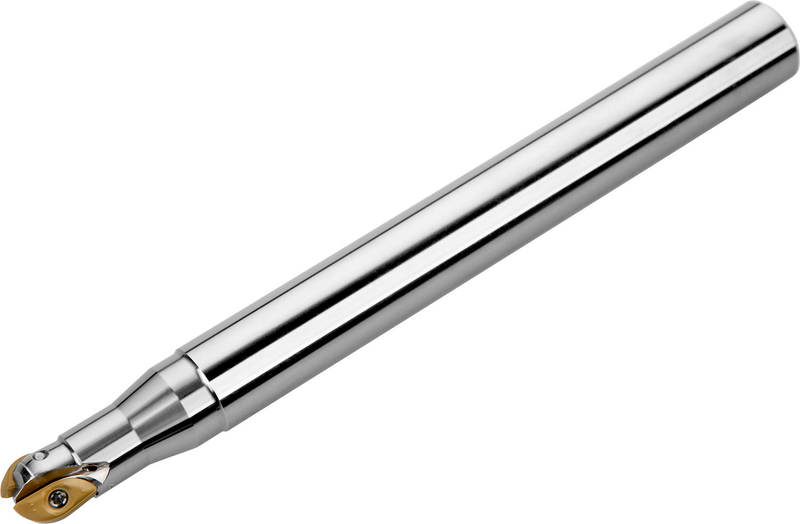

Fraise à copier avec double géométrie négative qui utilise 2 plaquettes simple face ZP 12.., diamètre de coupe de 12mm avec queue cylindrique de 20mm selon DIN 1835A, longueur totale de 200mm pour le fraisage en plongée avec une profondeur de coupe maximale de 10,7mm

For more information about this product, click here

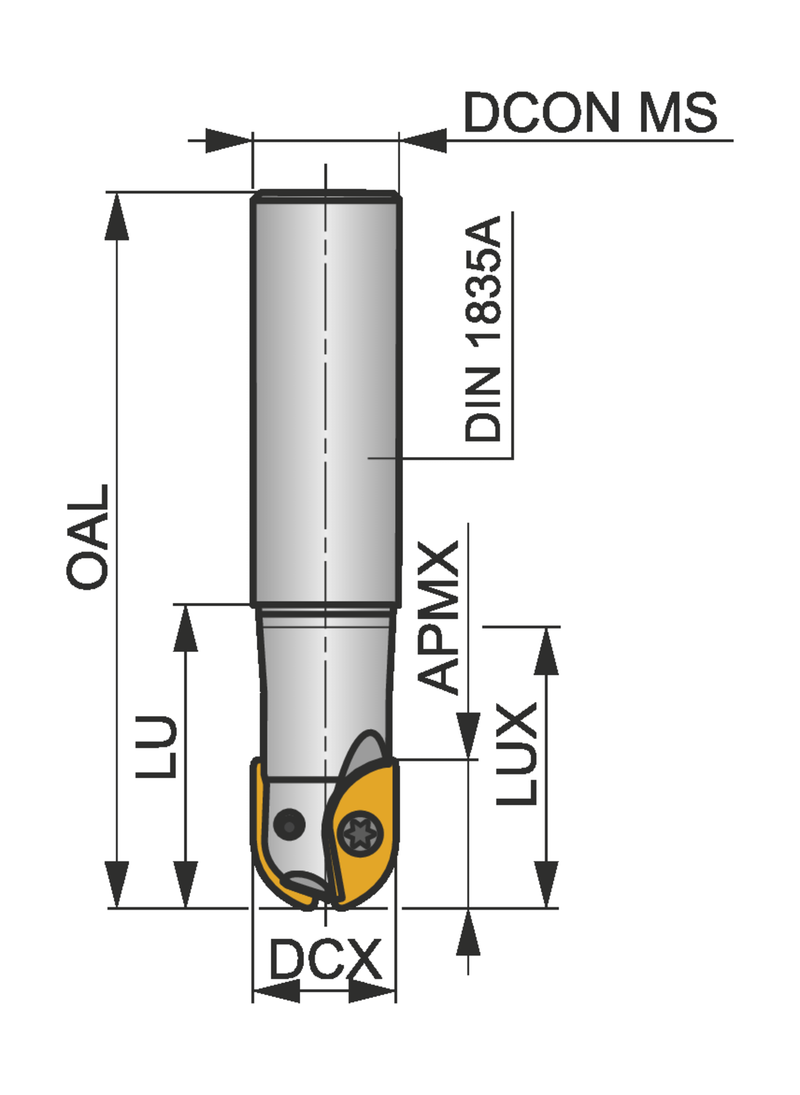

Identification
Ordering Code (ANSI/ISO)12L2R045A20-SZP12
Product Number6761621
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)10.7 mm
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6761621
EAN3603602969675
File Type Download
12L2R045A20-SZP12 — 3D Model STP Download
12L2R045A20-SZP12 — 2D Model DXF Download
12L2R045A20-SZP12 — Line Drawing PDF Download
