10L2R050A16-SZP10
10L2R050A16-SZP10
10L2R050A16-SZP10

10L2R050A16-SZP10

UGC DOR6761626
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$520.00 CAD - $520.00 CAD
$520.00 CAD
$520.00 CAD - $520.00 CAD
$520.00 CAD

Vendu en lots de : 1

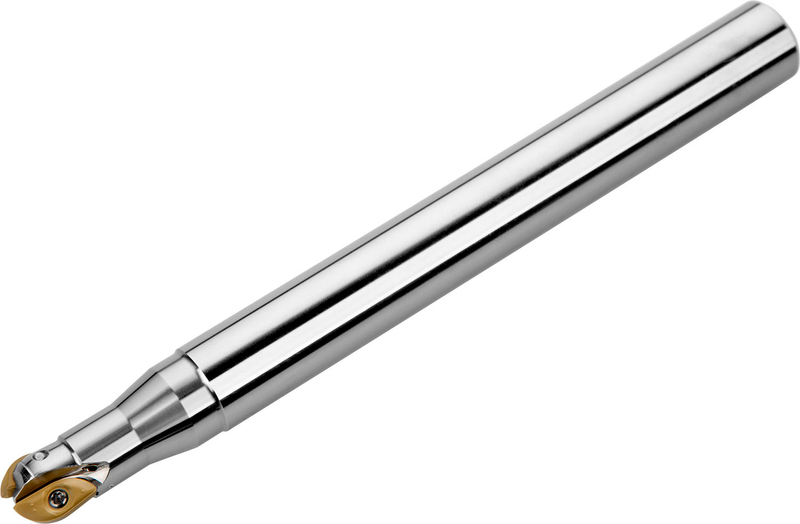

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 10.., diamètre de coupe 10 mm avec queue cylindrique de 16 mm selon DIN 1835A, longueur fonctionnelle 50 mm et longueur totale 160 mm pour le copiage avec une profondeur de coupe maximale de 8,9 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)10L2R050A16-SZP10
Product Number6761626
Product FamilyL2-SZP

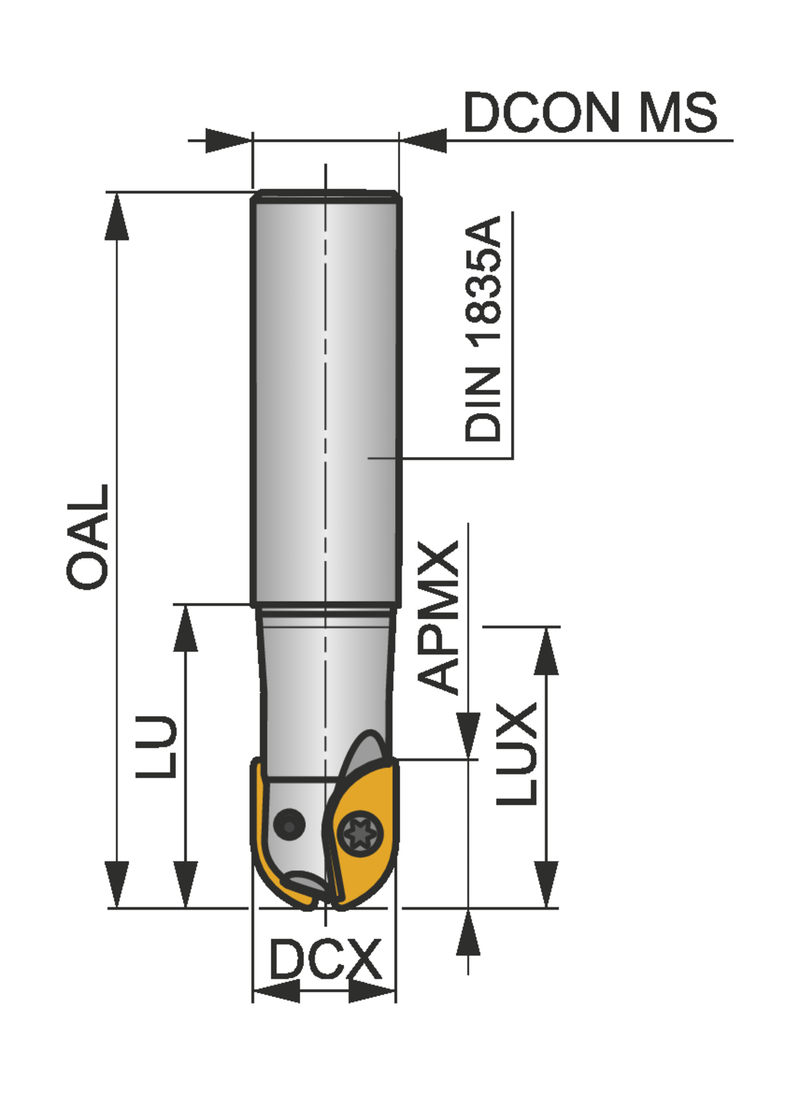

Insert Geometry
Depth of Cut Max — mm (APMX)8.9 mm
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6761626
EAN3603602969729
File Type Download
10L2R050A16-SZP10 — 3D Model STP Download
10L2R050A16-SZP10 — 2D Model DXF Download
10L2R050A16-SZP10 — Line Drawing PDF Download
