16L2R045A20-SZP16-C
16L2R045A20-SZP16-C
16L2R045A20-SZP16-C

16L2R045A20-SZP16-C

UGC DOR6761627
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

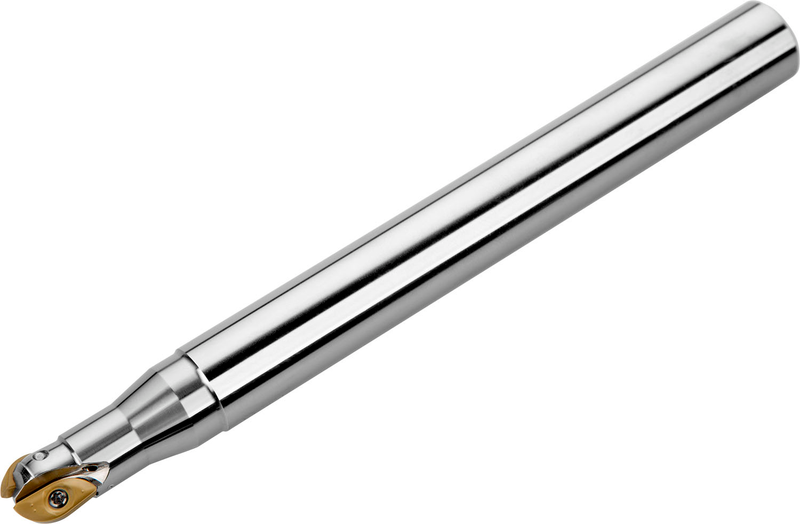

Fraise à copier avec géométrie doublement négative qui utilise 2 plaquettes simple-face ZP 16.., diamètre de coupe 16mm avec queue cylindrique de 20mm selon DIN 1835A, longueur totale 200mm, arrosage par l'intérieur pour fraisage en copiage avec une profondeur de coupe maximale de 14,4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16L2R045A20-SZP16-C
Product Number6761627
Product FamilyL2-SZP

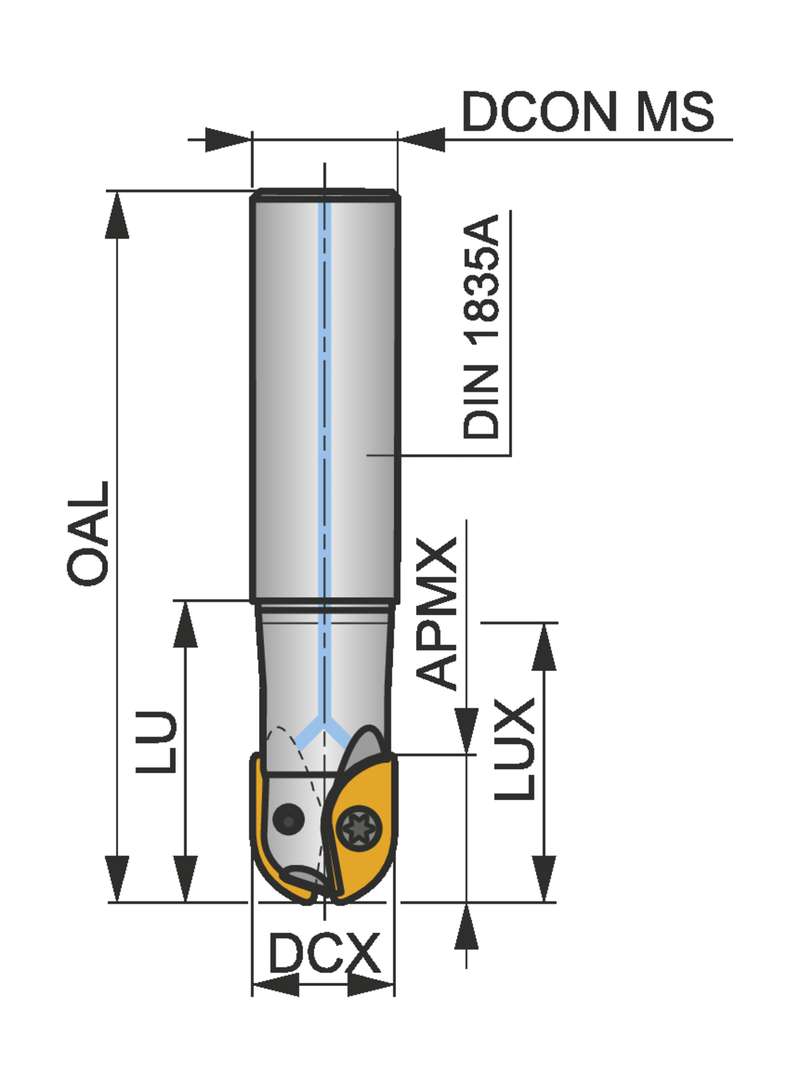

Insert Geometry
Depth of Cut Max — mm (APMX)14.4 mm
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761627
EAN3603602969736
File Type Download
16L2R045A20-SZP16-C — 3D Model STP Download
16L2R045A20-SZP16-C — 2D Model DXF Download
16L2R045A20-SZP16-C — Line Drawing PDF Download
