20L2R055A25-SZP20-C
20L2R055A25-SZP20-C
20L2R055A25-SZP20-C

20L2R055A25-SZP20-C

UGC DOR6761628
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$595.00 CAD - $595.00 CAD
$595.00 CAD
$595.00 CAD - $595.00 CAD
$595.00 CAD

Vendu en lots de : 1

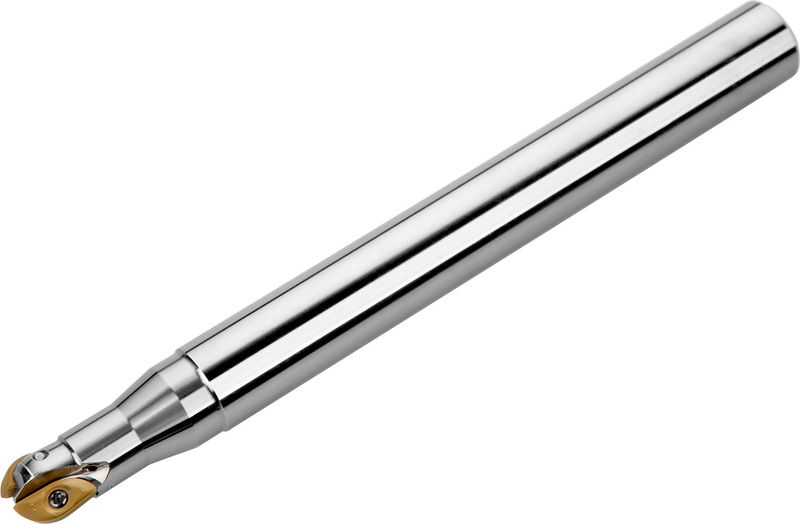

Fraise à copier avec géométrie double négative qui utilise 2 plaquettes simple face ZP 20.., diamètre de coupe 20mm avec queue cylindrique 25mm selon DIN 1835A, longueur totale 200mm, arrosage par l'intérieur pour le copiage avec une profondeur de coupe maximale de 17,9mm

For more information about this product, click here

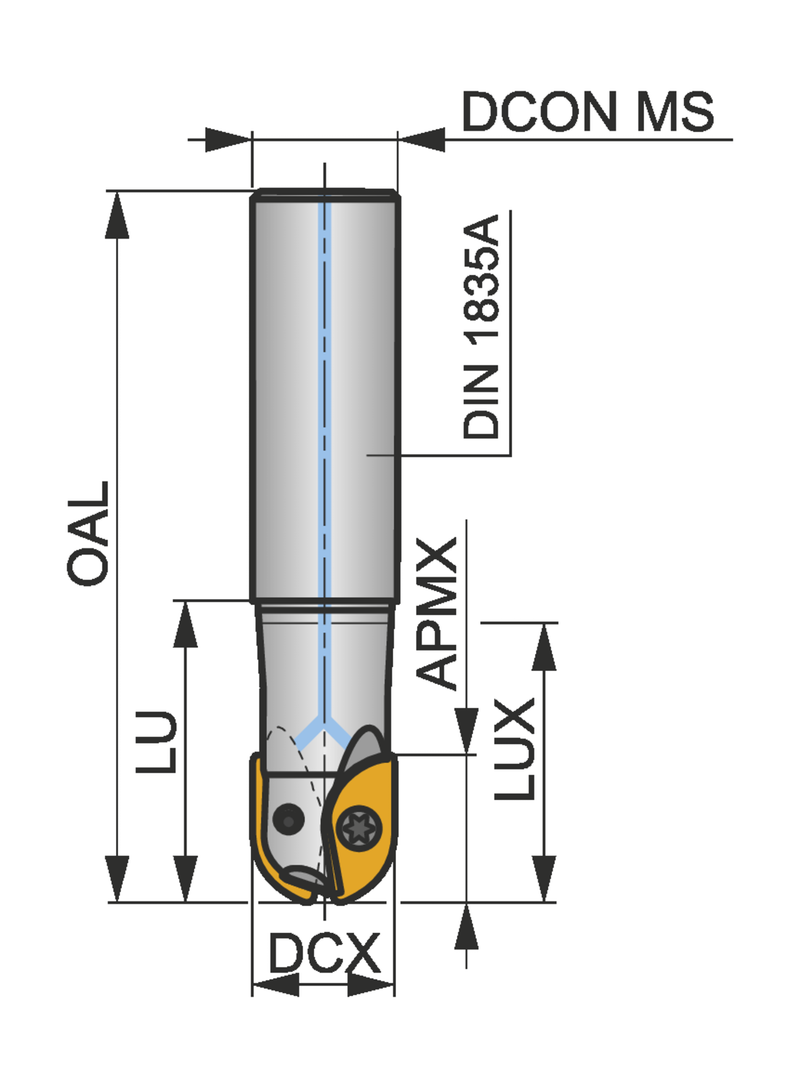

Identification
Ordering Code (ANSI/ISO)20L2R055A25-SZP20-C
Product Number6761628
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)17.9 mm
Dimensions
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761628
EAN3603602969743
File Type Download
20L2R055A25-SZP20-C — 3D Model STP Download
20L2R055A25-SZP20-C — 2D Model DXF Download
20L2R055A25-SZP20-C — Line Drawing PDF Download
