25L2R060A25-SZP25-C
25L2R060A25-SZP25-C
25L2R060A25-SZP25-C

25L2R060A25-SZP25-C

UGC DOR6761630
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$656.00 CAD - $656.00 CAD
$656.00 CAD
$656.00 CAD - $656.00 CAD
$656.00 CAD

Vendu en lots de : 1

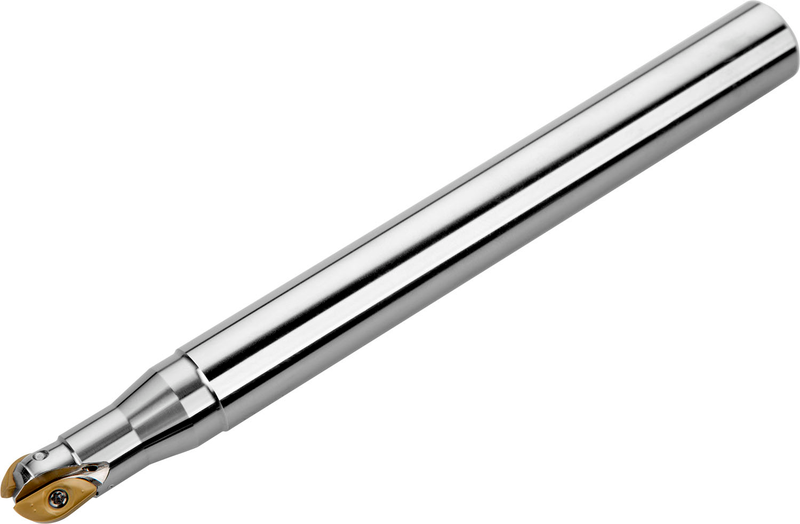

Fraise à copier avec double géométrie négative, utilisant 2 plaquettes ZP 25.. à simple face, diamètre de coupe 25mm avec queue cylindrique 25mm selon DIN 1835A, longueur fonctionnelle 60mm et longueur totale 250mm, arrosage central pour le fraisage à copier avec une profondeur de coupe maximale de 22,3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25L2R060A25-SZP25-C
Product Number6761630
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)22.3 mm

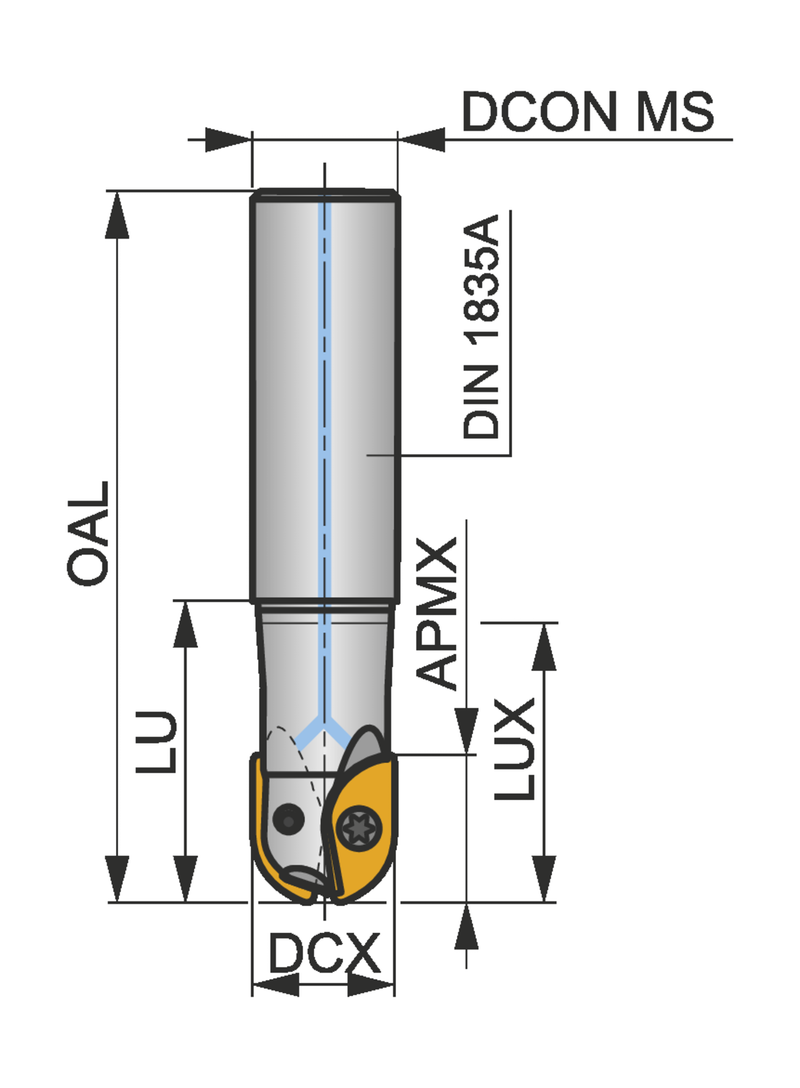

Dimensions
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761630
EAN3603602969767
File Type Download
25L2R060A25-SZP25-C — 3D Model STP Download
25L2R060A25-SZP25-C — 2D Model DXF Download
25L2R060A25-SZP25-C — Line Drawing PDF Download
