25L2R065A32-SZP25-C
25L2R065A32-SZP25-C
25L2R065A32-SZP25-C

25L2R065A32-SZP25-C

UGC DOR6761631
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$656.00 CAD - $656.00 CAD
$656.00 CAD
$656.00 CAD - $656.00 CAD
$656.00 CAD

Vendu en lots de : 1

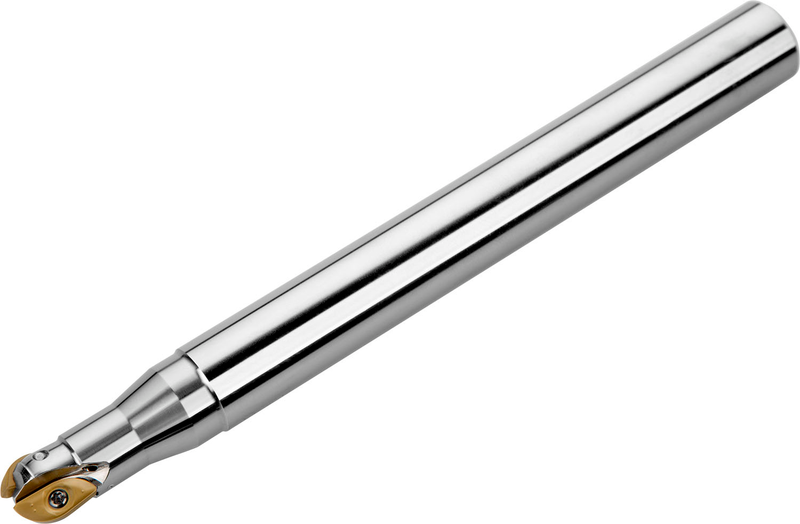

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 25..., diamètre de coupe 25mm avec queue cylindrique 32mm selon DIN 1835A, longueur totale 250mm, arrosage interne pour fraisage en plongée avec une profondeur de coupe maximale de 22,3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25L2R065A32-SZP25-C
Product Number6761631
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)22.3 mm

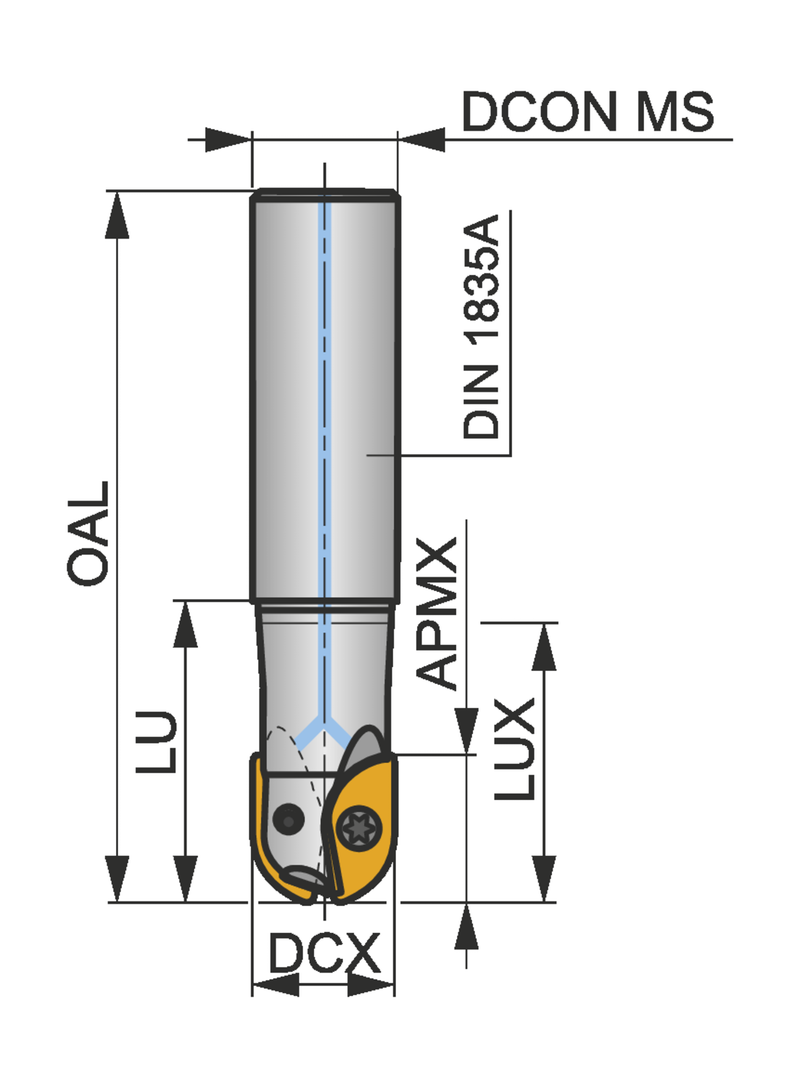

Dimensions
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761631
EAN3603602969774
File Type Download
25L2R065A32-SZP25-C — 3D Model STP Download
25L2R065A32-SZP25-C — 2D Model DXF Download
25L2R065A32-SZP25-C — Line Drawing PDF Download
