32L2R070A32-SZP32-C
32L2R070A32-SZP32-C
32L2R070A32-SZP32-C

32L2R070A32-SZP32-C

UGC DOR6761632
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$754.00 CAD - $754.00 CAD
$754.00 CAD
$754.00 CAD - $754.00 CAD
$754.00 CAD

Vendu en lots de : 1

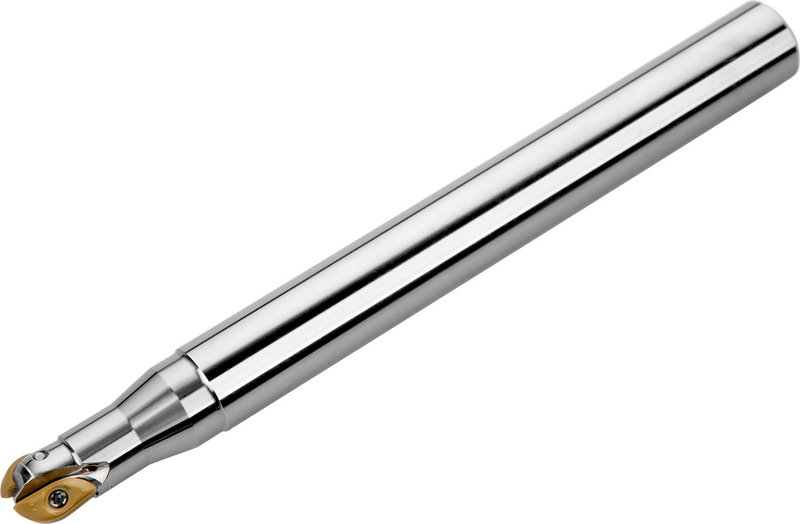

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 32.., diamètre de coupe 32mm avec queue cylindrique 32mm selon DIN 1835A, longueur totale 250mm, arrosage central pour le fraisage en copie avec une profondeur de coupe maximale de 28,6mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32L2R070A32-SZP32-C
Product Number6761632
Product FamilyL2-SZP

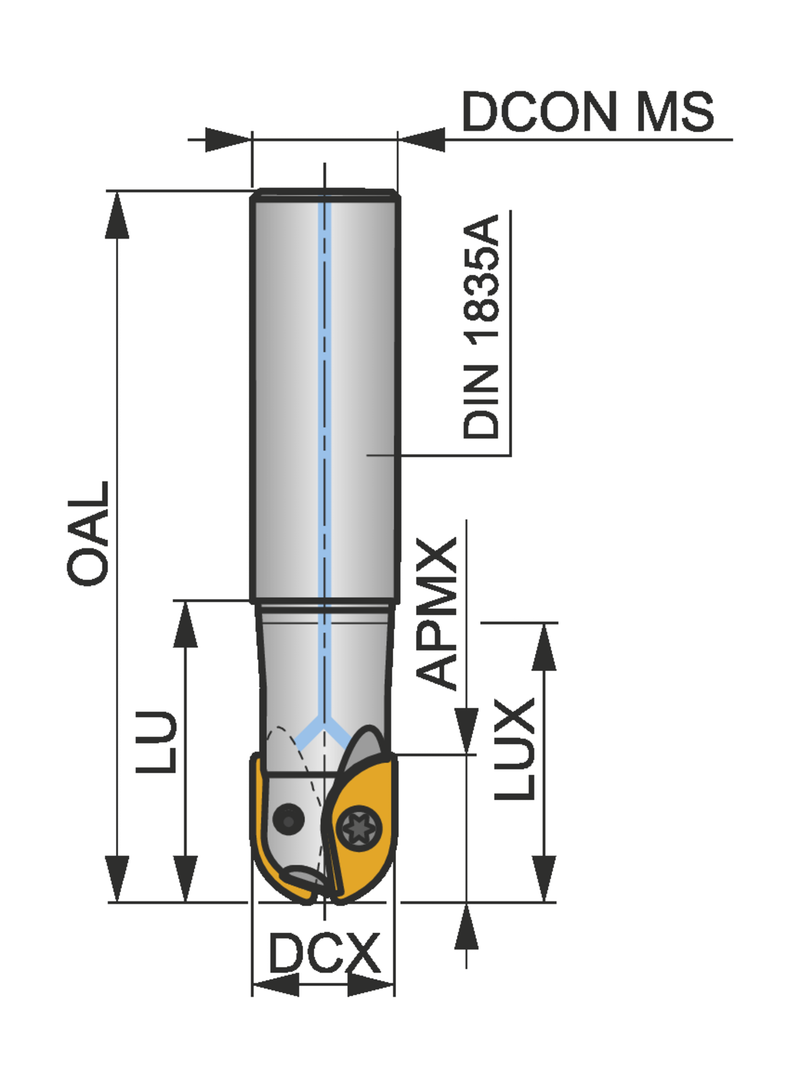

Insert Geometry
Depth of Cut Max — mm (APMX)28.6 mm
Dimensions
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761632
EAN3603602969781
File Type Download
32L2R070A32-SZP32-C — 3D Model STP Download
32L2R070A32-SZP32-C — 2D Model DXF Download
32L2R070A32-SZP32-C — Line Drawing PDF Download
