12L2R040B20-SZP12
12L2R040B20-SZP12
12L2R040B20-SZP12

12L2R040B20-SZP12

UGC DOR6761633
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$520.00 CAD - $520.00 CAD
$520.00 CAD
$520.00 CAD - $520.00 CAD
$520.00 CAD

Vendu en lots de : 1

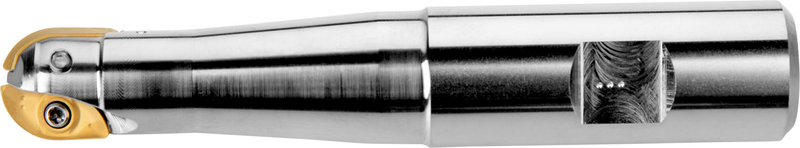

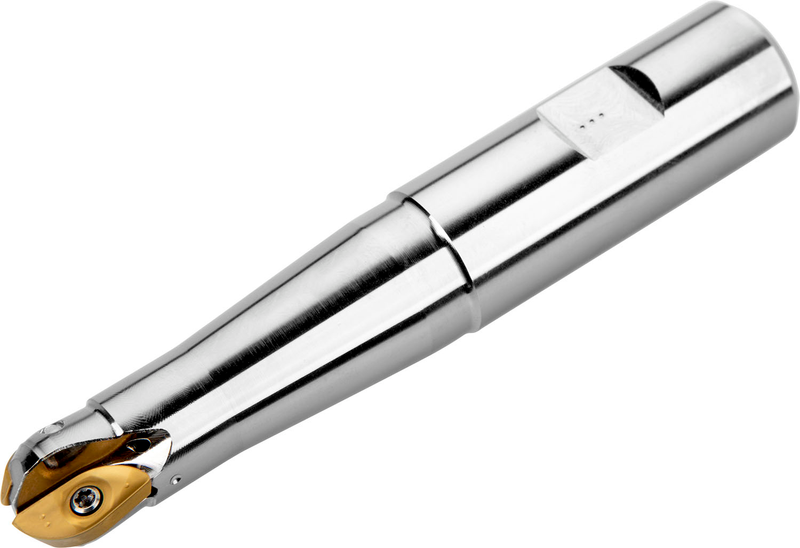

Fraise à copier négative double utilisant 2 plaquettes ZP 12.. simple face, diamètre de coupe 12 mm avec queue Weldon 20 mm selon DIN 1835B, longueur fonctionnelle 40 mm et longueur totale 91 mm pour le copiage avec une profondeur de coupe maximale de 10,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12L2R040B20-SZP12
Product Number6761633
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)10.7 mm

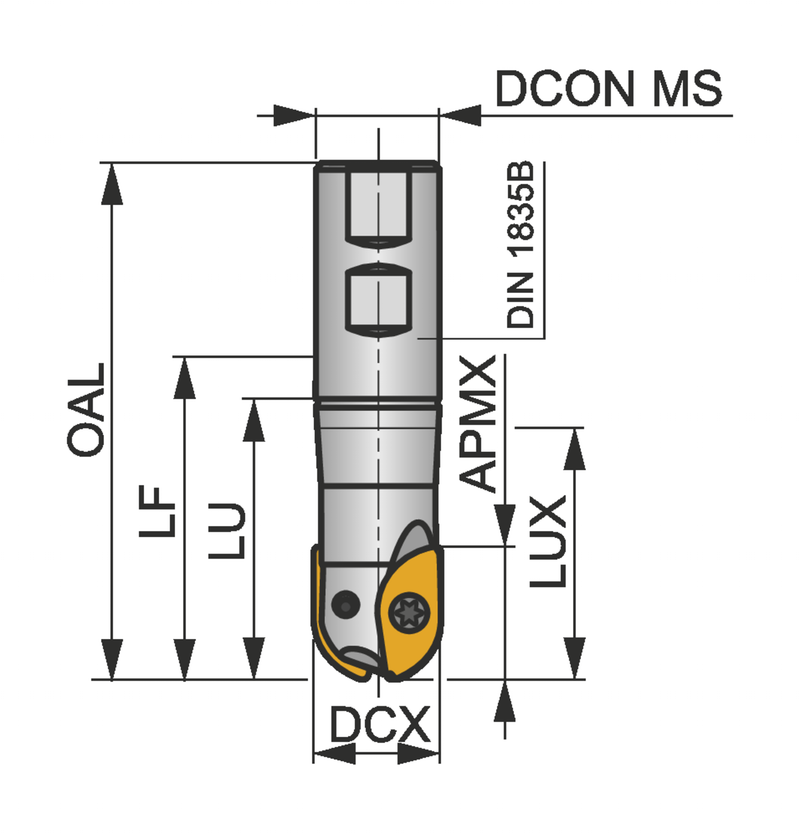

Dimensions
Overall Length — in (OAL)3.583"
Overall Length — mm (OAL)91.0 mm
Usable Length — mm (LU)40.0 mm
Functional Length — mm (LF)66.5 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Reference Numbers
EDP Number6761633
EAN3603602969798
File Type Download
12L2R040B20-SZP12 — 3D Model STP Download
12L2R040B20-SZP12 — 2D Model DXF Download
12L2R040B20-SZP12 — Line Drawing PDF Download
