16L2R060B20-SZP16-C
16L2R060B20-SZP16-C
16L2R060B20-SZP16-C

16L2R060B20-SZP16-C

UGC DOR6761636
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

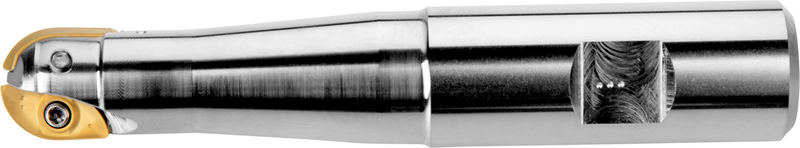

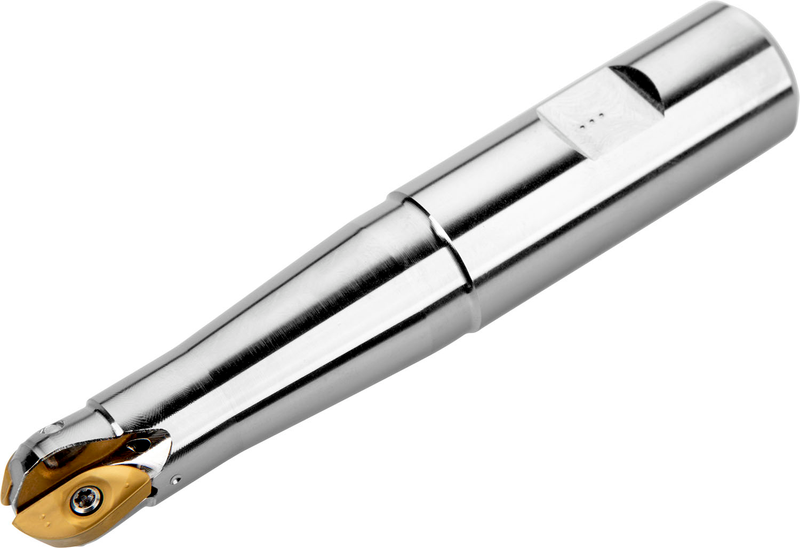

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 16.., diamètre de coupe 16mm avec queue Weldon 20mm selon DIN 1835B, longueur fonctionnelle 60mm et longueur totale 111mm, arrosage interne pour le fraisage à copier avec une profondeur de coupe maximale de 14,4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16L2R060B20-SZP16-C
Product Number6761636
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)14.4 mm

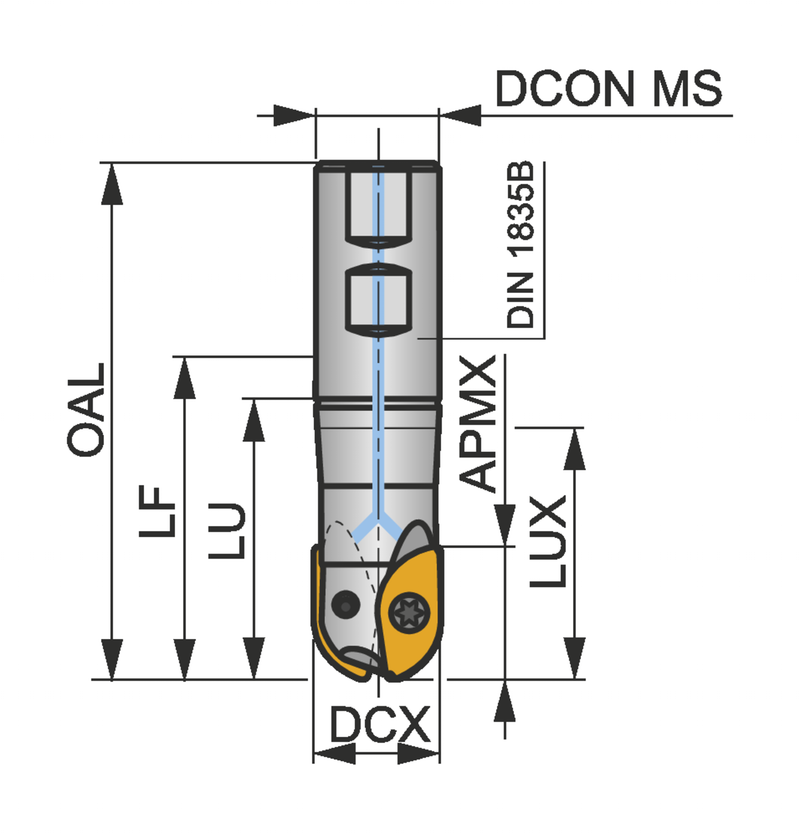

Dimensions
Overall Length — in (OAL)4.37"
Overall Length — mm (OAL)111.0 mm
Usable Length — mm (LU)60.0 mm
Functional Length — mm (LF)86.5 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761636
EAN3603602969828
File Type Download
16L2R060B20-SZP16-C — 3D Model STP Download
16L2R060B20-SZP16-C — 2D Model DXF Download
16L2R060B20-SZP16-C — Line Drawing PDF Download
