32L2R070B32-SZP32-C
32L2R070B32-SZP32-C
32L2R070B32-SZP32-C

32L2R070B32-SZP32-C

UGC DOR6761641
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$754.00 CAD - $754.00 CAD
$754.00 CAD
$754.00 CAD - $754.00 CAD
$754.00 CAD

Vendu en lots de : 1

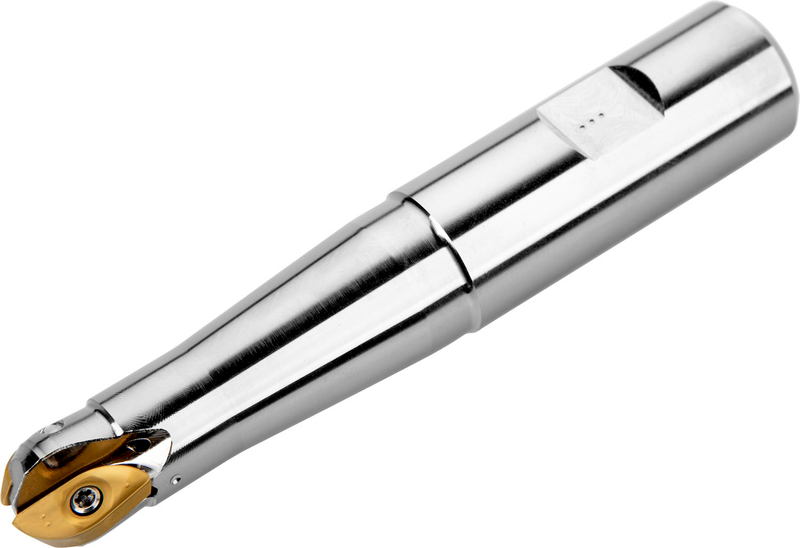

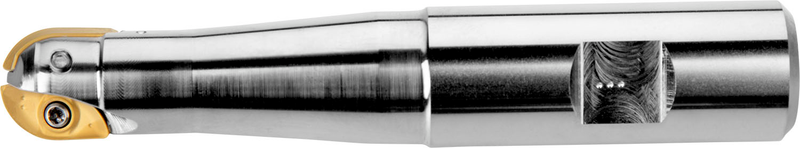

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 32.., diamètre de coupe 32mm avec queue Weldon 32mm selon DIN 1835B, longueur utile 70mm et longueur totale 131mm, arrosage central pour fraisage en copiage avec une profondeur de coupe maximale de 28,6mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32L2R070B32-SZP32-C
Product Number6761641
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)28.6 mm

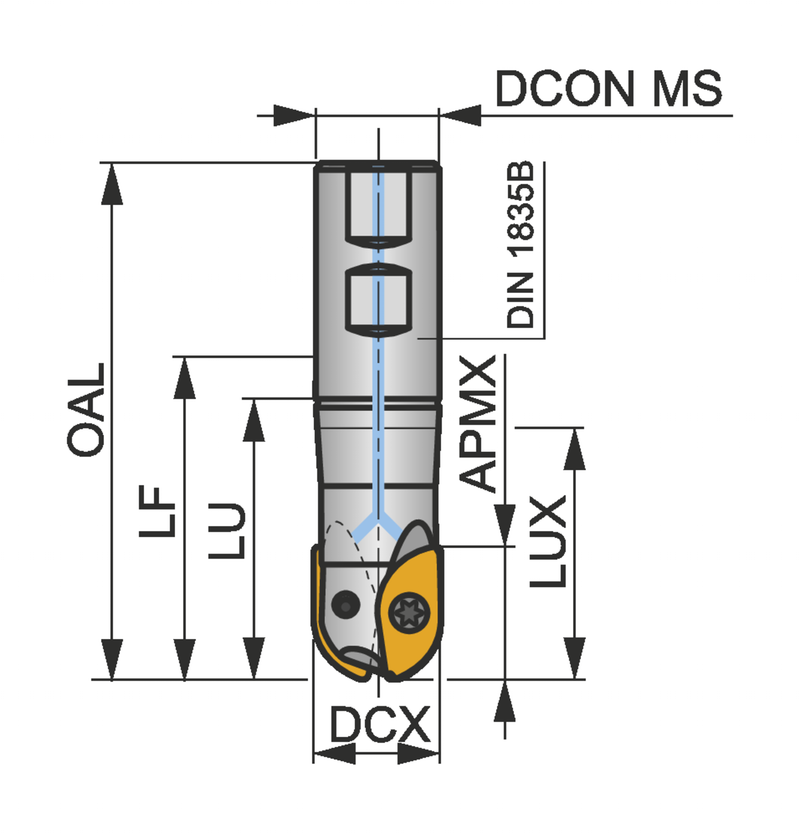

Dimensions
Overall Length — in (OAL)5.157"
Overall Length — mm (OAL)131.0 mm
Usable Length — mm (LU)70.0 mm
Functional Length — mm (LF)95.5 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761641
EAN3603602969873
File Type Download
32L2R070B32-SZP32-C — 3D Model STP Download
32L2R070B32-SZP32-C — 2D Model DXF Download
32L2R070B32-SZP32-C — Line Drawing PDF Download
