40L2R070B32-SZP40-C
40L2R070B32-SZP40-C
40L2R070B32-SZP40-C

40L2R070B32-SZP40-C

UGC DOR6761643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,051.00 CAD - $1,051.00 CAD
$1,051.00 CAD
$1,051.00 CAD - $1,051.00 CAD
$1,051.00 CAD

Vendu en lots de : 1

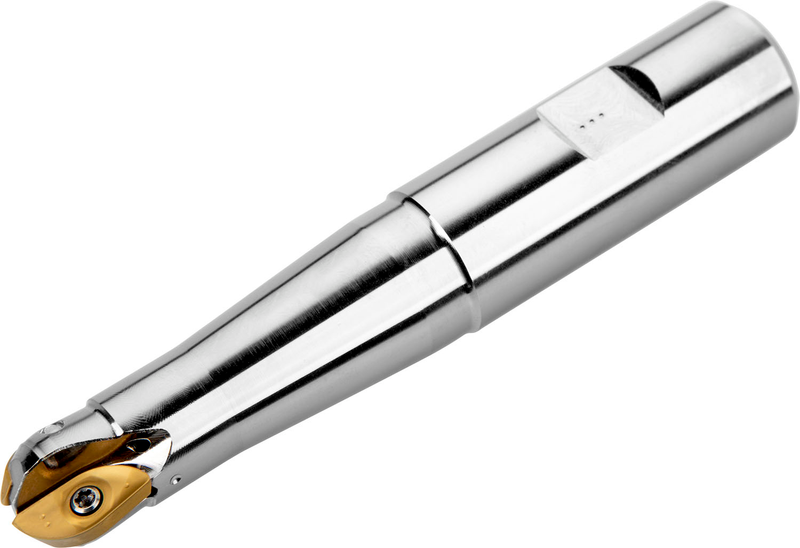

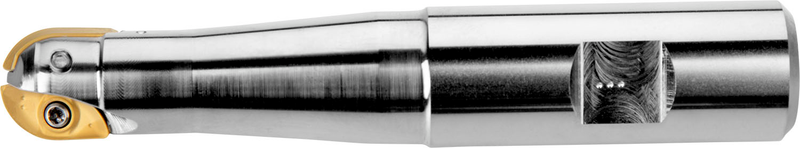

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 40..., diamètre de coupe 40 mm avec queue Weldon 32 mm selon DIN 1835B, longueur utile 70 mm et longueur totale 131 mm, arrosage central pour le fraisage par copiage avec une profondeur de coupe maximale de 35,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40L2R070B32-SZP40-C
Product Number6761643
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)35.7 mm

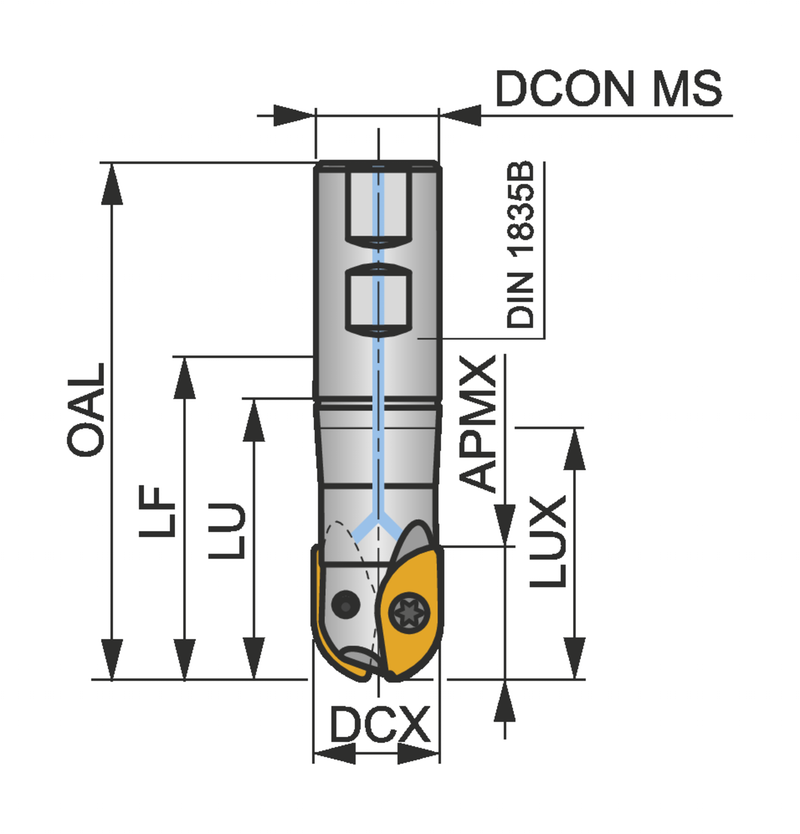

Dimensions
Overall Length — in (OAL)5.157"
Overall Length — mm (OAL)131.0 mm
Usable Length — mm (LU)70.0 mm
Functional Length — mm (LF)95.5 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761643
EAN3603602969897
File Type Download
40L2R070B32-SZP40-C — 3D Model STP Download
40L2R070B32-SZP40-C — 2D Model DXF Download
40L2R070B32-SZP40-C — Line Drawing PDF Download
