40L2R100B40-SZP40-C
40L2R100B40-SZP40-C
40L2R100B40-SZP40-C

40L2R100B40-SZP40-C

UGC DOR6761644
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,051.00 CAD - $1,051.00 CAD
$1,051.00 CAD
$1,051.00 CAD - $1,051.00 CAD
$1,051.00 CAD

Vendu en lots de : 1

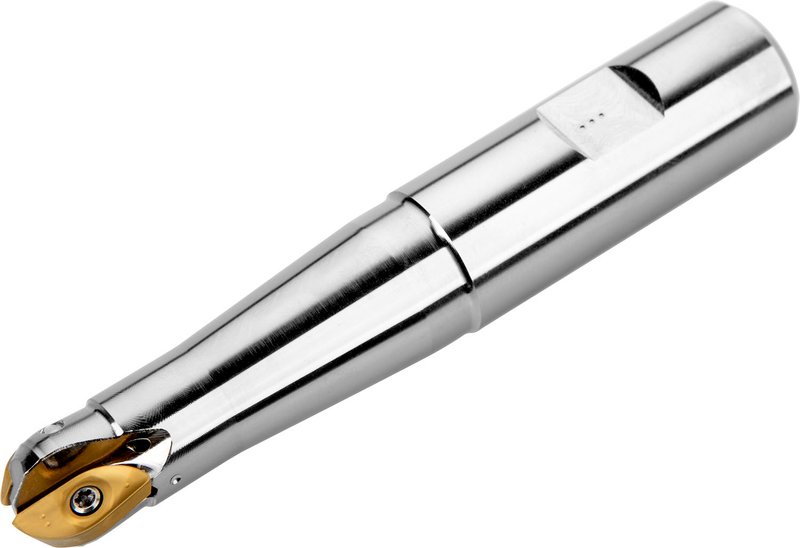

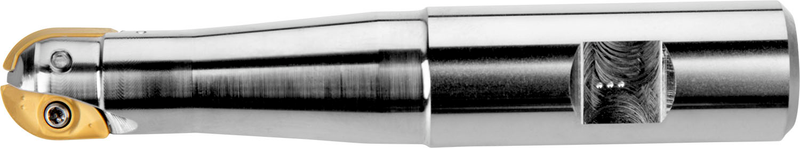

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 40.., diamètre de coupe 40mm avec queue Weldon 40mm selon DIN 1835B, longueur fonctionnelle 100mm et longueur totale 171mm, arrosage central pour fraisage en copiage avec une profondeur de coupe maximale de 35,7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40L2R100B40-SZP40-C
Product Number6761644
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)35.7 mm

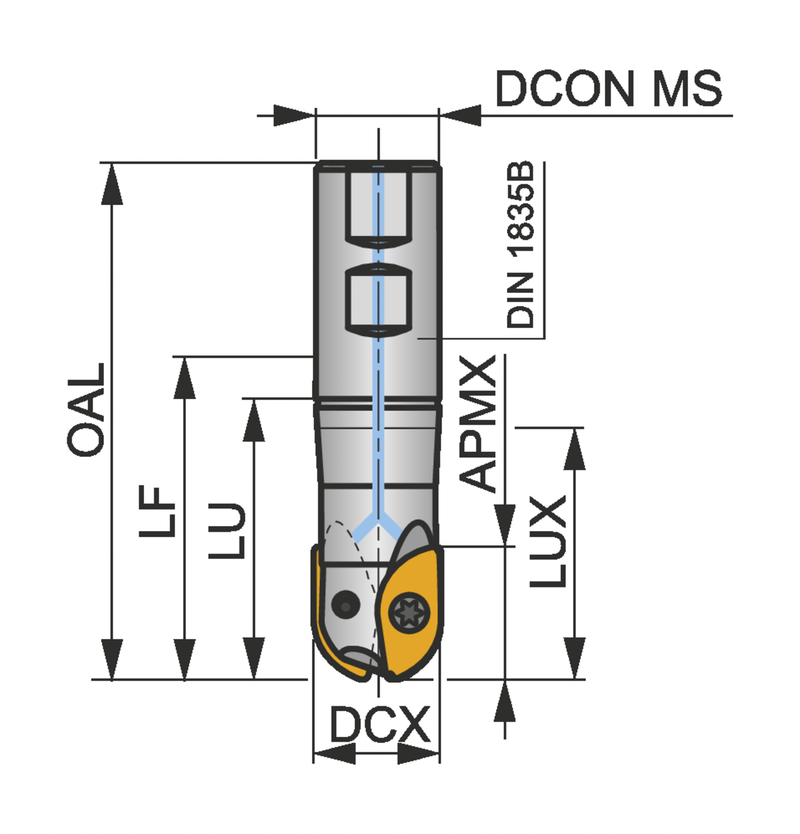

Dimensions
Overall Length — in (OAL)6.732"
Overall Length — mm (OAL)171.0 mm
Usable Length — mm (LU)100.0 mm
Functional Length — mm (LF)131.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue de Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761644
EAN3603602969903
File Type Download
40L2R100B40-SZP40-C — 3D Model STP Download
40L2R100B40-SZP40-C — 2D Model DXF Download
40L2R100B40-SZP40-C — Line Drawing PDF Download
