50L2R100B50-SZP50-C
50L2R100B50-SZP50-C
50L2R100B50-SZP50-C

50L2R100B50-SZP50-C

UGC DOR6761645
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,379.00 CAD - $1,379.00 CAD
$1,379.00 CAD
$1,379.00 CAD - $1,379.00 CAD
$1,379.00 CAD

Vendu en lots de : 1

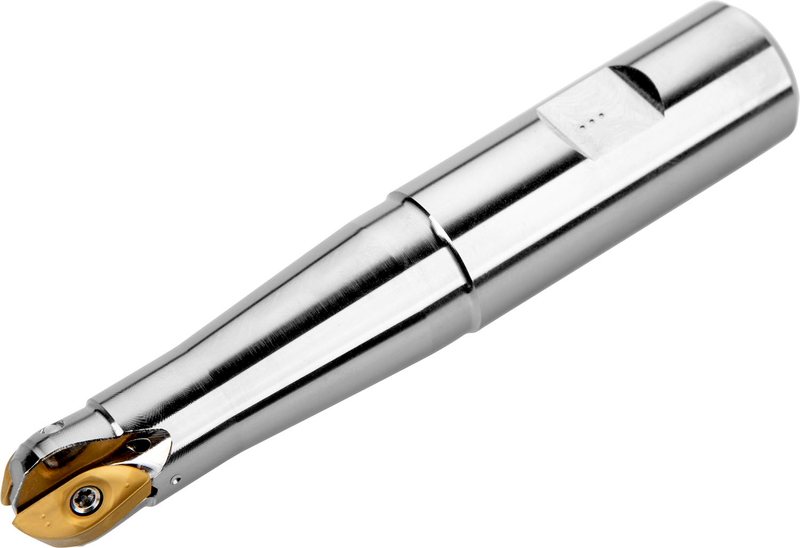

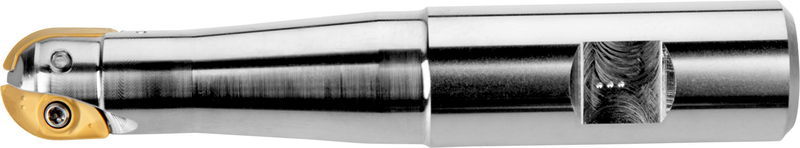

Fraise à copier avec géométrie double négative utilisant 2 plaquettes simples ZP 50.., diamètre de coupe 50 mm avec queue Weldon de 50 mm selon DIN 1835B, longueur fonctionnelle de 100 mm et longueur totale de 181 mm, arrosage par l'intérieur pour le copiage avec une profondeur de coupe maximale de 44,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50L2R100B50-SZP50-C
Product Number6761645
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)44.7 mm

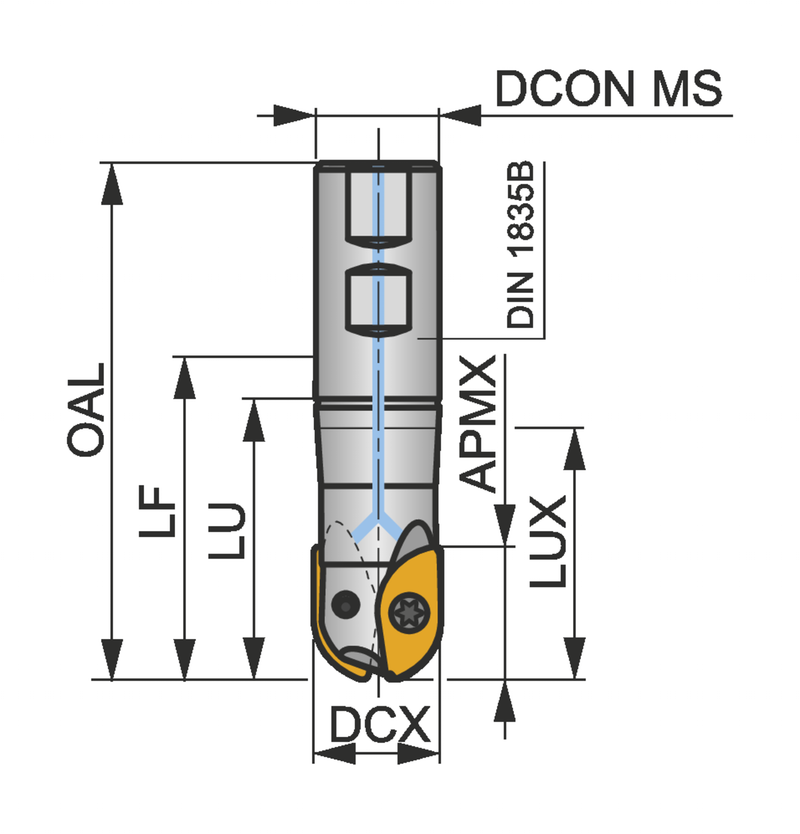

Dimensions
Overall Length — in (OAL)7.126"
Overall Length — mm (OAL)181.0 mm
Usable Length — mm (LU)100.0 mm
Functional Length — mm (LF)136.5 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue de Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761645
EAN3603602969910
File Type Download
50L2R100B50-SZP50-C — 3D Model STP Download
50L2R100B50-SZP50-C — 2D Model DXF Download
50L2R100B50-SZP50-C — Line Drawing PDF Download
