12L2R090E02-SZP12
12L2R090E02-SZP12
12L2R090E02-SZP12

12L2R090E02-SZP12

UGC DOR6761649
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$575.00 CAD - $575.00 CAD
$575.00 CAD
$575.00 CAD - $575.00 CAD
$575.00 CAD

Vendu en lots de : 1

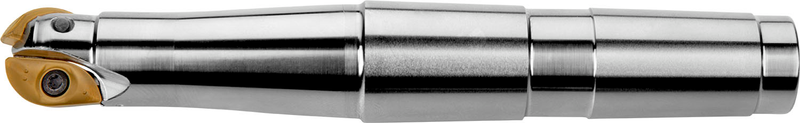

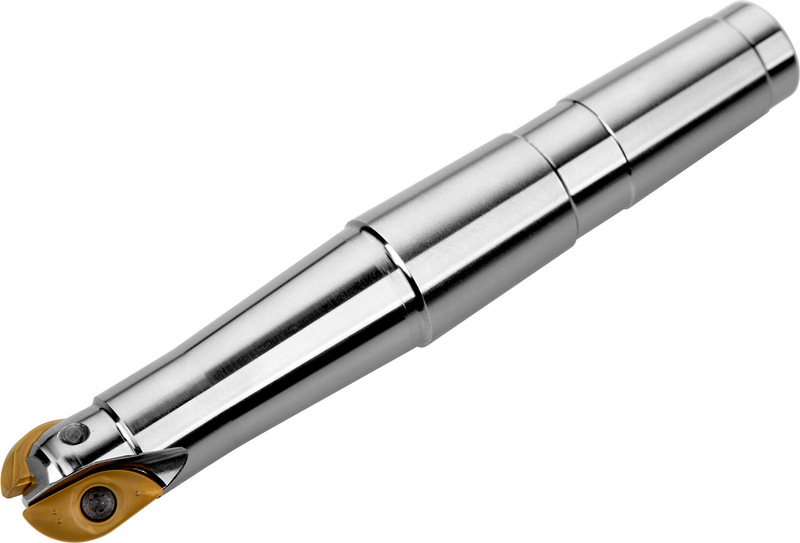

Fraise à copier avec double géométrie négative utilisant 2 plaquettes ZP 12.. à simple face, diamètre de coupe 12 mm avec queue conique Morse CM 2 selon DIN 228-1A, longueur totale 154 mm pour fraisage à copier avec une profondeur de coupe maximale de 10,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12L2R090E02-SZP12
Product Number6761649
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)10.7 mm

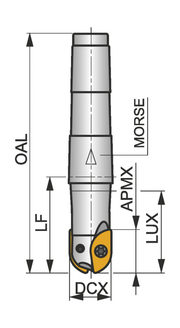

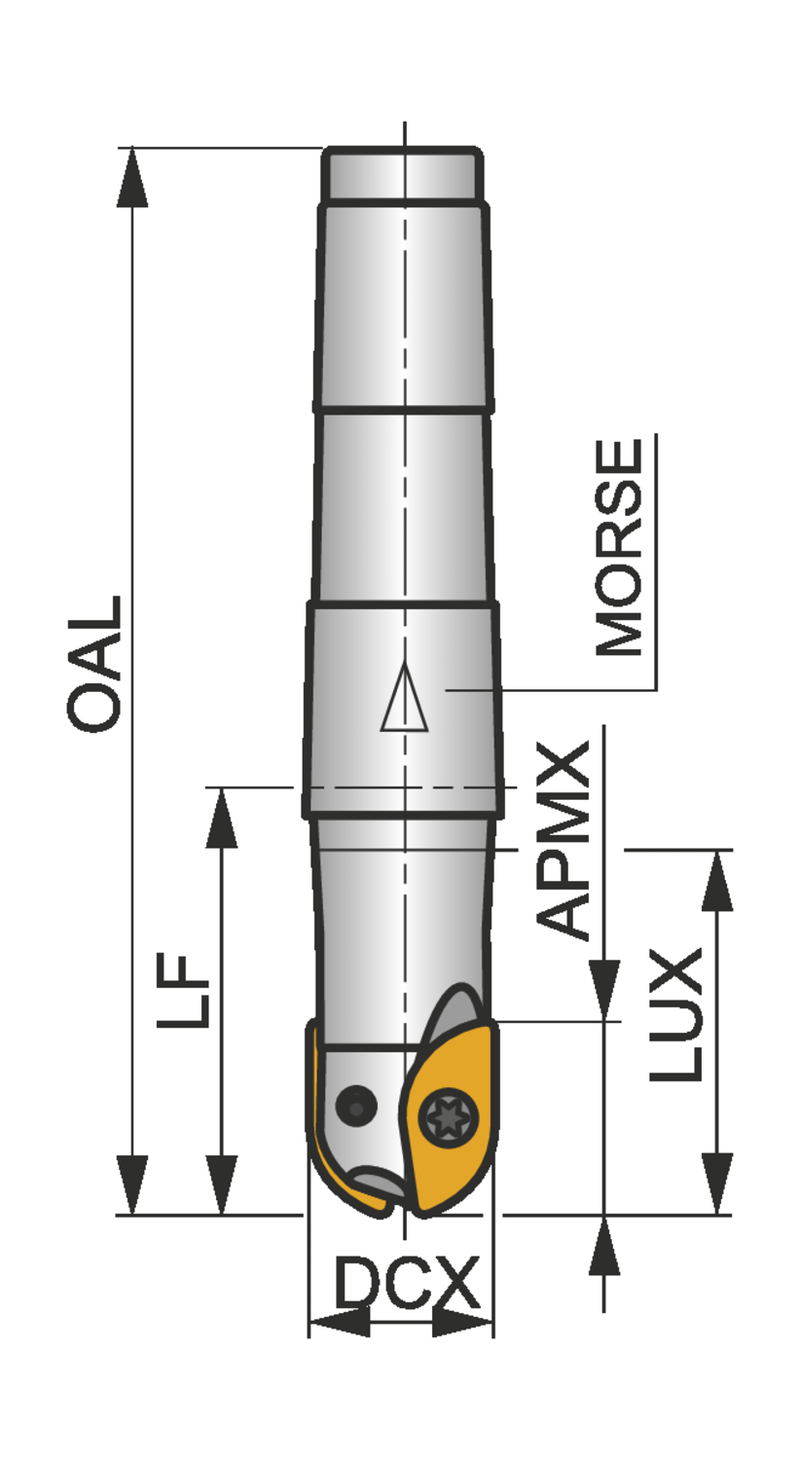

Dimensions
Overall Length — in (OAL)6.063"
Overall Length — mm (OAL)154.0 mm
Functional Length — mm (LF)90.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue conique Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6761649
EAN3603602969958
File Type Download
12L2R090E02-SZP12 — 3D Model STP Download
12L2R090E02-SZP12 — 2D Model DXF Download
12L2R090E02-SZP12 — Line Drawing PDF Download
