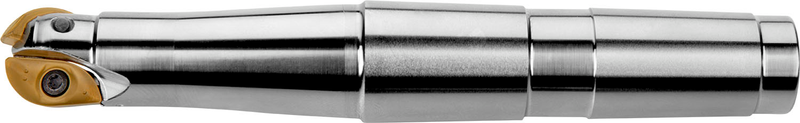

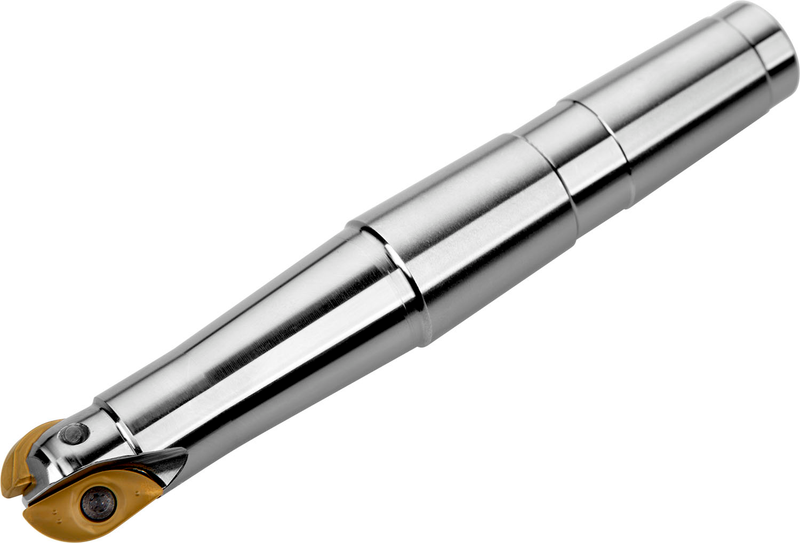

Fraise à copier avec géométrie double négative qui utilise 2 plaquettes simple face ZP 16.., diamètre de coupe de 16mm avec queue cône morse CM 2 selon DIN 228-1A, longueur totale de 124mm pour le fraisage à copier avec une profondeur de coupe maximale de 14,4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16L2R060E02-SZP16
Product Number6761651
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)14.4 mm

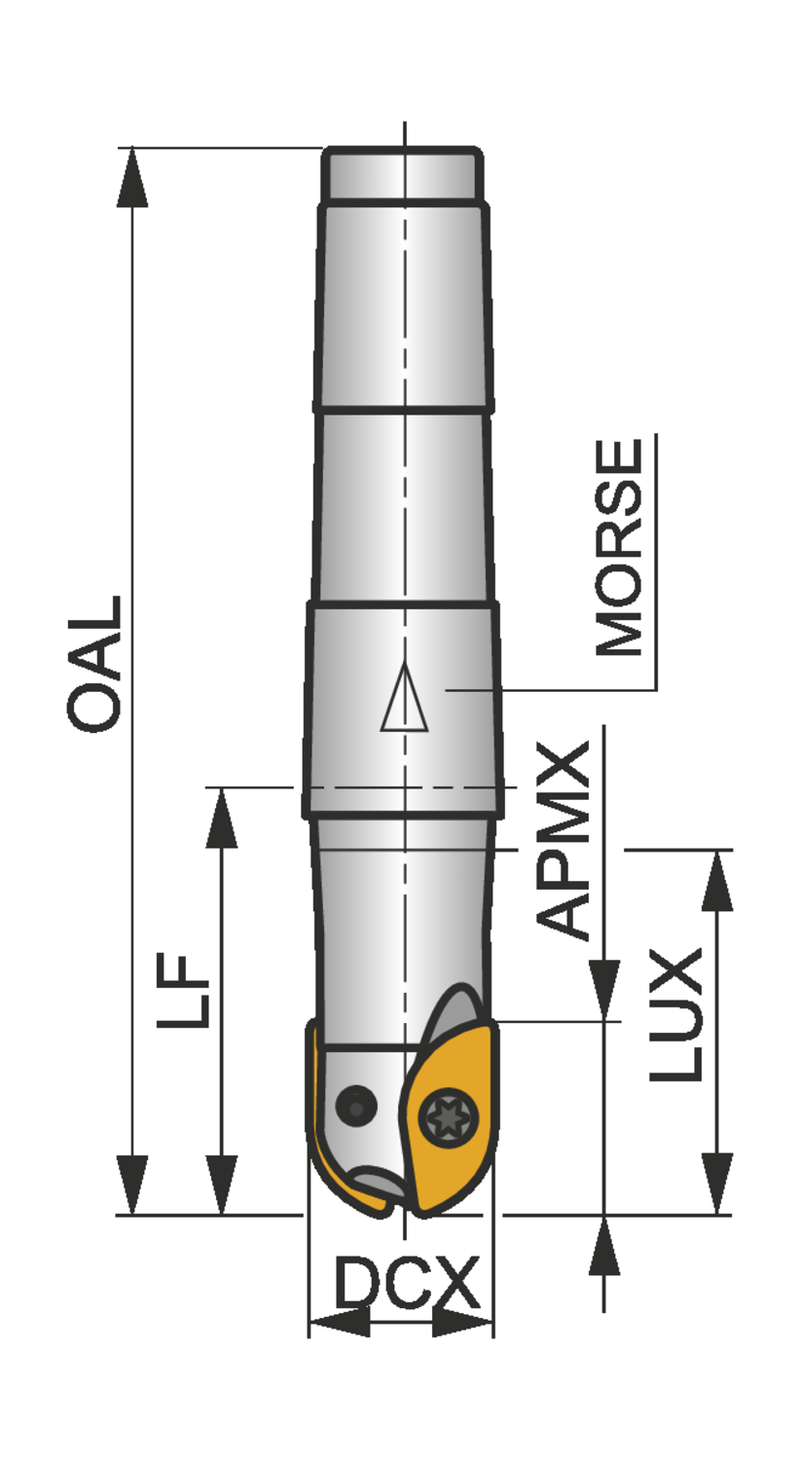

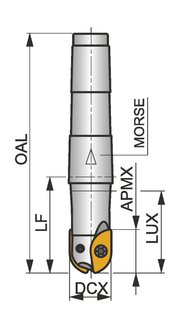

Dimensions
Overall Length — in (OAL)4.882"
Overall Length — mm (OAL)124.0 mm
Functional Length — mm (LF)60.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue de cône Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6761651
EAN3603602969972
File Type Download
16L2R060E02-SZP16 — 3D Model STP Download
16L2R060E02-SZP16 — 2D Model DXF Download
16L2R060E02-SZP16 — Line Drawing PDF Download
