20L2R070E03-SZP20
20L2R070E03-SZP20
20L2R070E03-SZP20

20L2R070E03-SZP20

UGC DOR6761654
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$645.00 CAD - $645.00 CAD
$645.00 CAD
$645.00 CAD - $645.00 CAD
$645.00 CAD

Vendu en lots de : 1

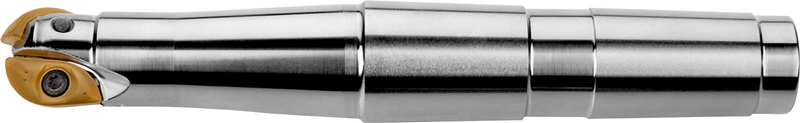

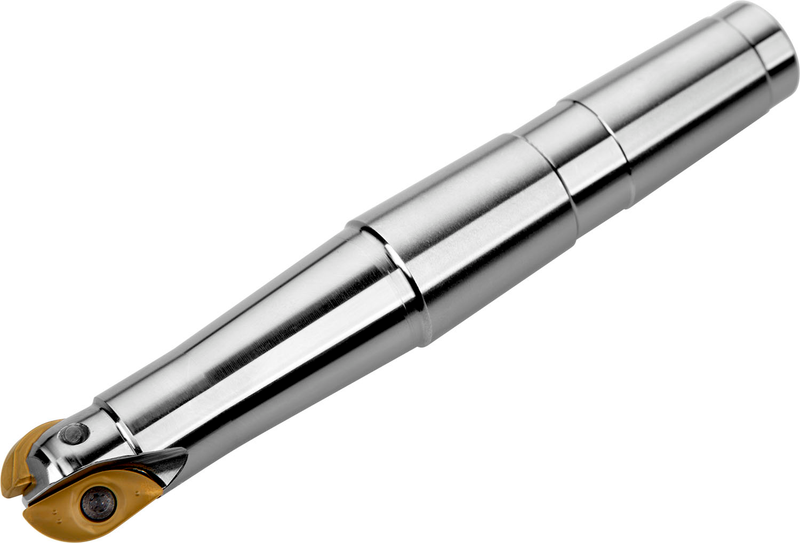

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simples ZP 20.., diamètre de coupe 20mm avec queue cône morse MT 3 selon DIN 228-1A, longueur totale 151mm pour copiage avec une profondeur de coupe maximale de 17,9mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20L2R070E03-SZP20
Product Number6761654
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)17.9 mm

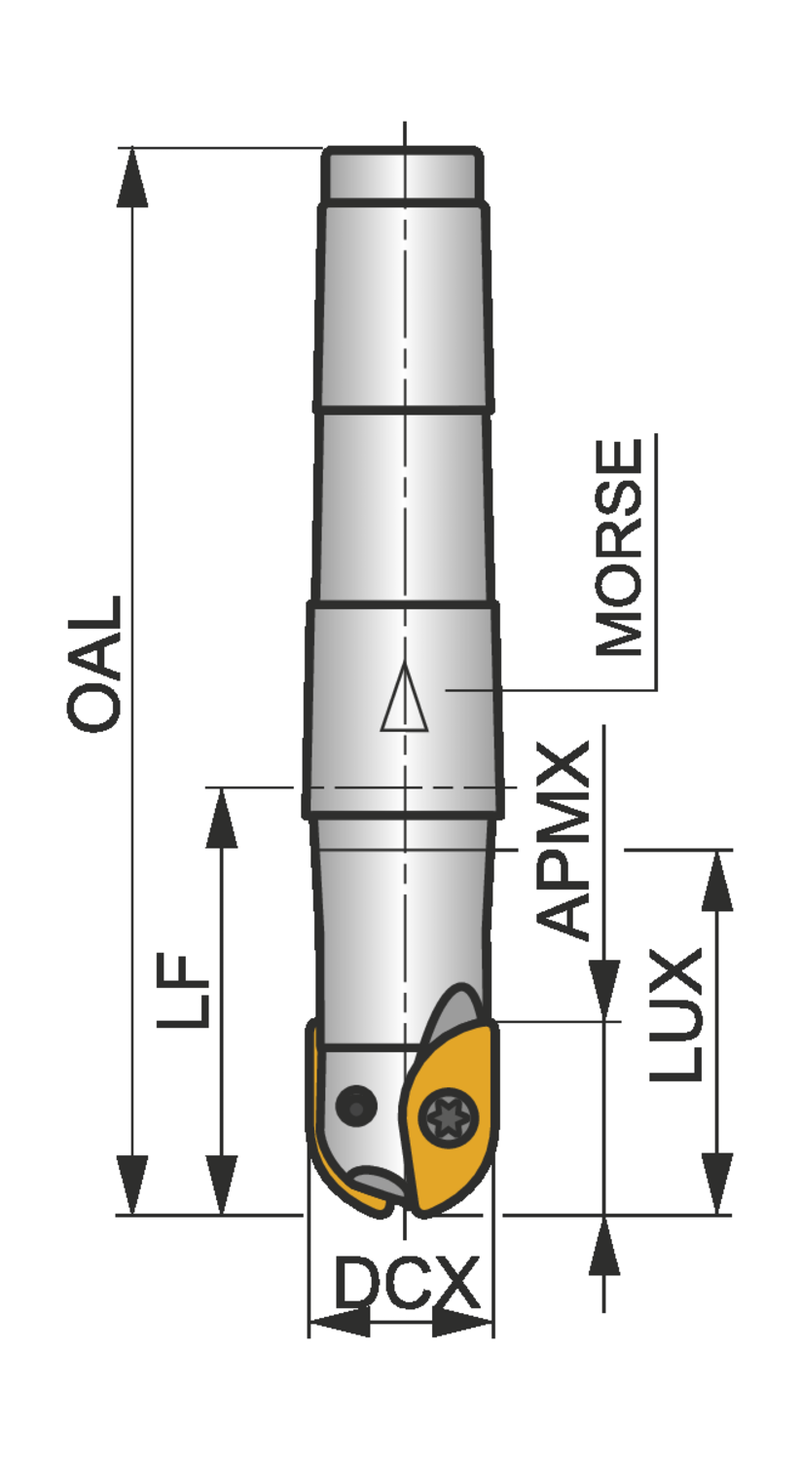

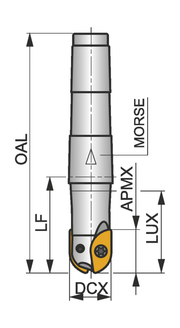

Dimensions
Overall Length — in (OAL)5.945"
Overall Length — mm (OAL)151.0 mm
Functional Length — mm (LF)70.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankCône Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6761654
EAN3603602970008
File Type Download
20L2R070E03-SZP20 — 3D Model STP Download
20L2R070E03-SZP20 — 2D Model DXF Download
20L2R070E03-SZP20 — Line Drawing PDF Download
