25L2R110E04-SZP25
25L2R110E04-SZP25
25L2R110E04-SZP25

25L2R110E04-SZP25

UGC DOR6761657
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$718.00 CAD - $718.00 CAD
$718.00 CAD
$718.00 CAD - $718.00 CAD
$718.00 CAD

Vendu en lots de : 1

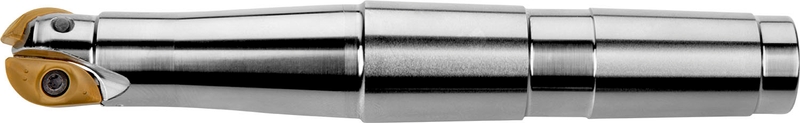

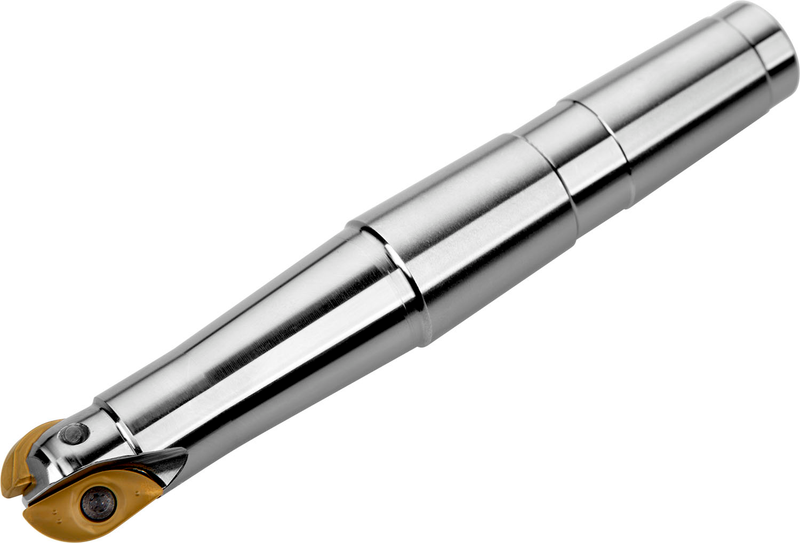

Fraise à copier avec double géométrie négative qui utilise 2 plaquettes simple face ZP 25..., diamètre de coupe 25mm avec queue conique Morse MT 4 selon DIN 228-1A, longueur totale 213mm pour le copiage avec une profondeur de coupe maximale de 22,3mm

For more information about this product, click here

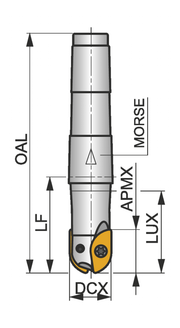

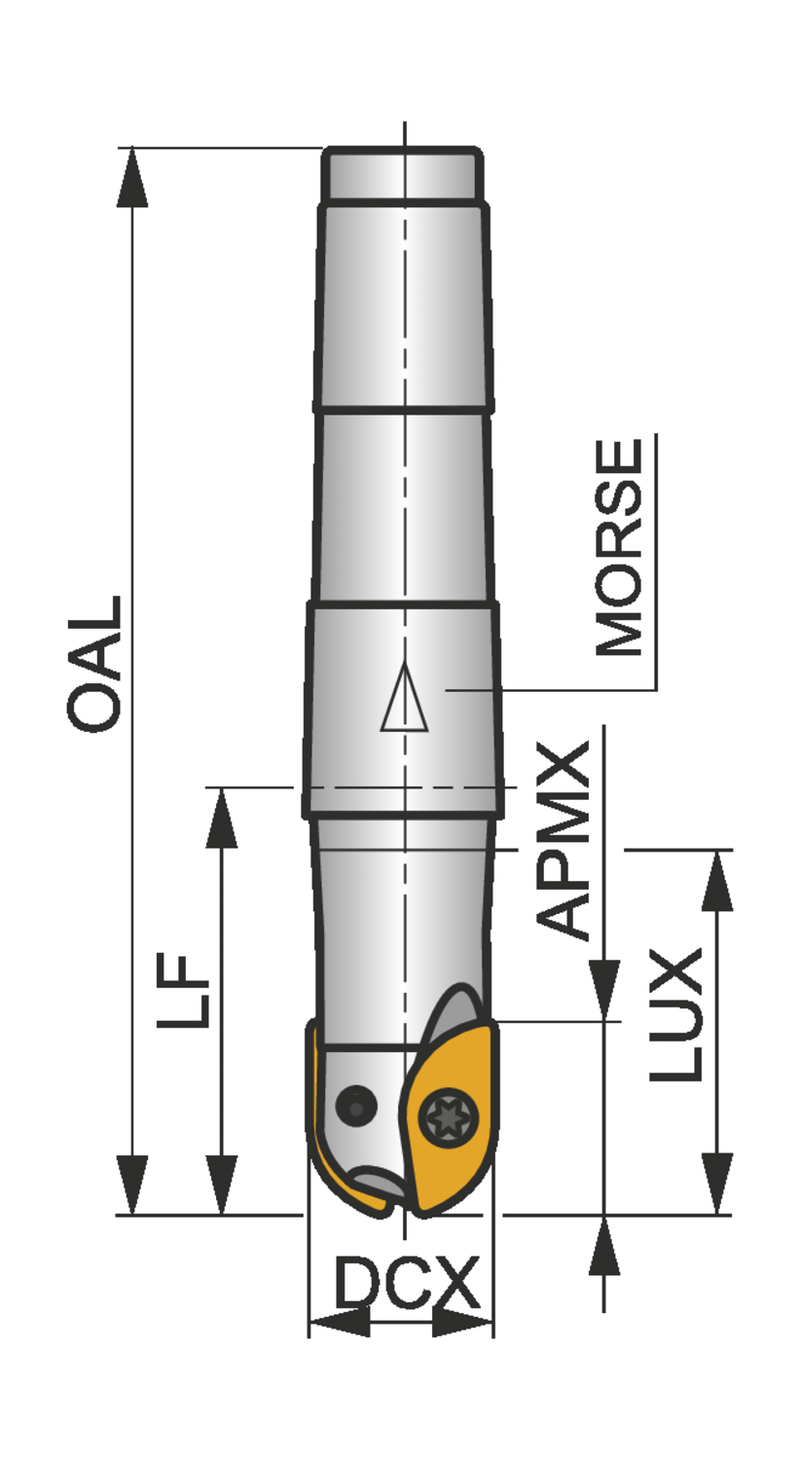

Identification
Ordering Code (ANSI/ISO)25L2R110E04-SZP25
Product Number6761657
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)22.3 mm
Dimensions
Overall Length — in (OAL)8.386"
Overall Length — mm (OAL)213.0 mm
Functional Length — mm (LF)110.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankQueue conique Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6761657
EAN3603602970039
File Type Download
25L2R110E04-SZP25 — 3D Model STP Download
25L2R110E04-SZP25 — 2D Model DXF Download
25L2R110E04-SZP25 — Line Drawing PDF Download
