32L2R100E04-SZP32
32L2R100E04-SZP32
32L2R100E04-SZP32

32L2R100E04-SZP32

UGC DOR6761658
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$826.00 CAD - $826.00 CAD
$826.00 CAD
$826.00 CAD - $826.00 CAD
$826.00 CAD

Vendu en lots de : 1

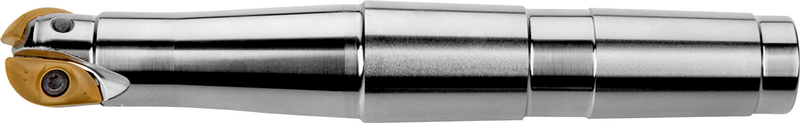

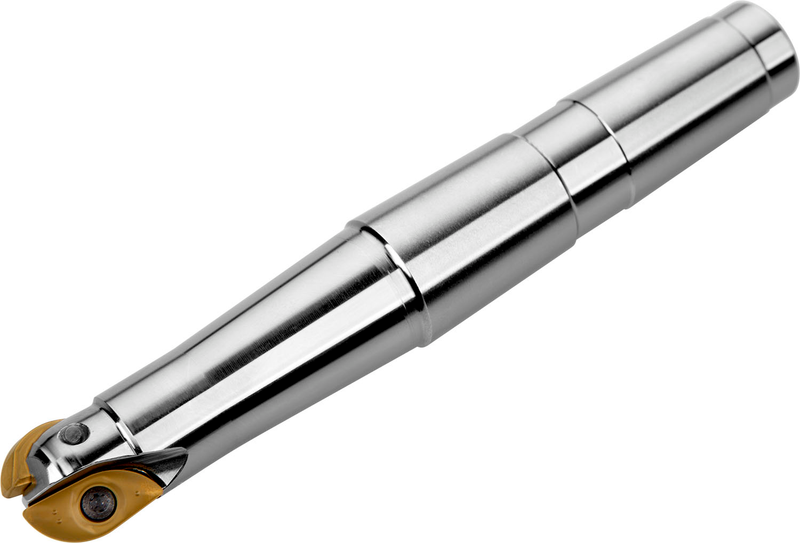

Fraise à copier avec géométrie double négative qui utilise 2 plaquettes simple face ZP 32.., diamètre de coupe 32mm avec queue conique Morse MT 4 selon DIN 228-1A, longueur totale 203mm pour le copiage avec une profondeur de coupe maximale de 28,6mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32L2R100E04-SZP32
Product Number6761658
Product FamilyL2-SZP
Insert Geometry
Depth of Cut Max — mm (APMX)28.6 mm

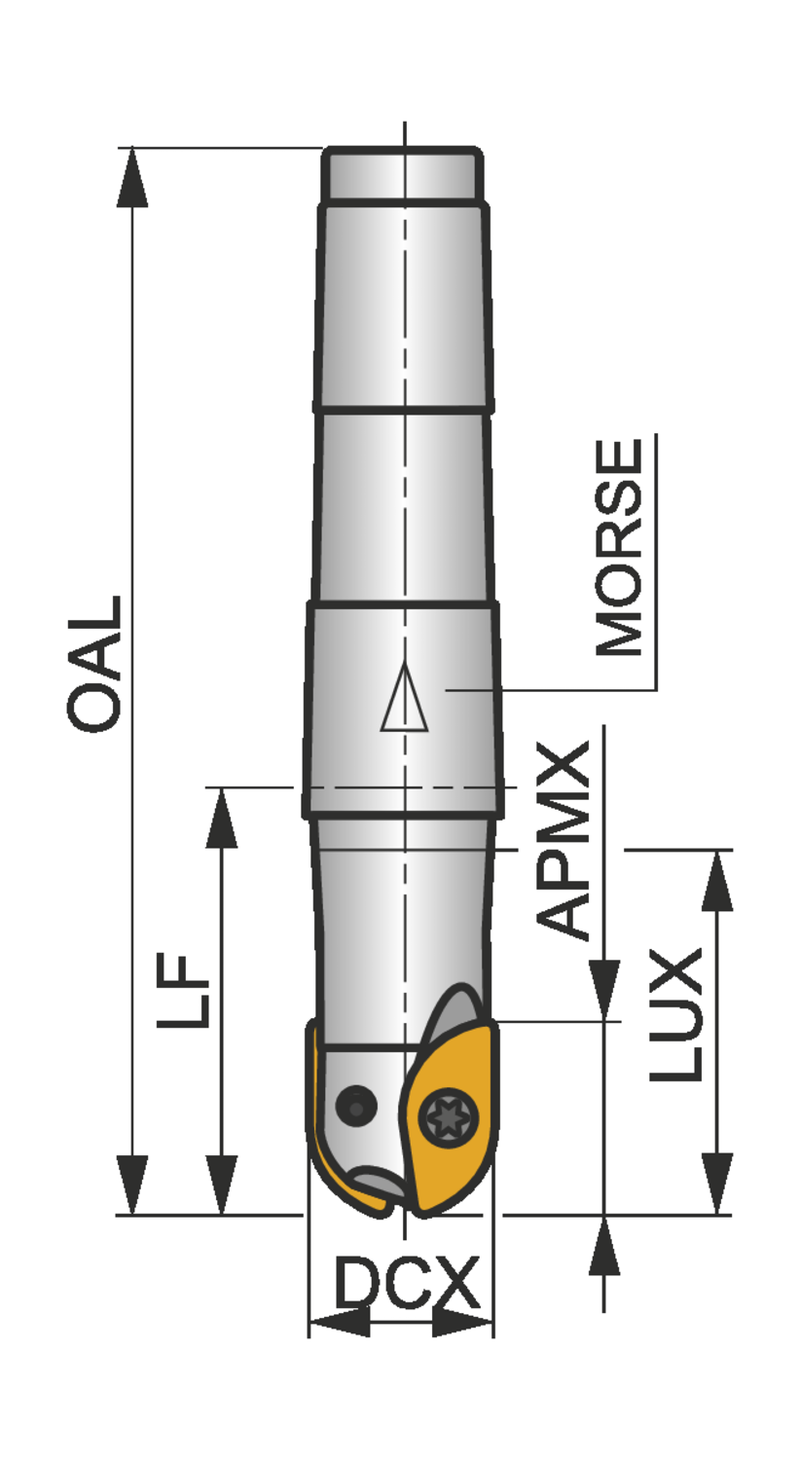

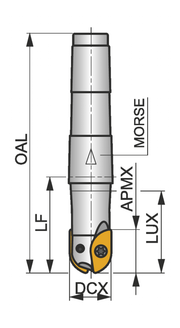

Dimensions
Overall Length — in (OAL)7.992"
Overall Length — mm (OAL)203.0 mm
Functional Length — mm (LF)100.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignL2-SZP
ShankCône Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6761658
EAN3603602970046
File Type Download
32L2R100E04-SZP32 — 3D Model STP Download
32L2R100E04-SZP32 — 2D Model DXF Download
32L2R100E04-SZP32 — Line Drawing PDF Download
