12L2R025M08-SZP12
12L2R025M08-SZP12
12L2R025M08-SZP12

12L2R025M08-SZP12

UGC DOR6761662
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$504.00 CAD - $504.00 CAD
$504.00 CAD
$504.00 CAD - $504.00 CAD
$504.00 CAD

Vendu en lots de : 1

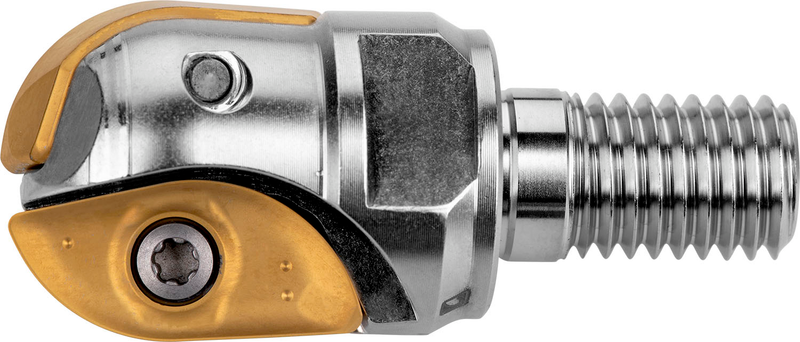

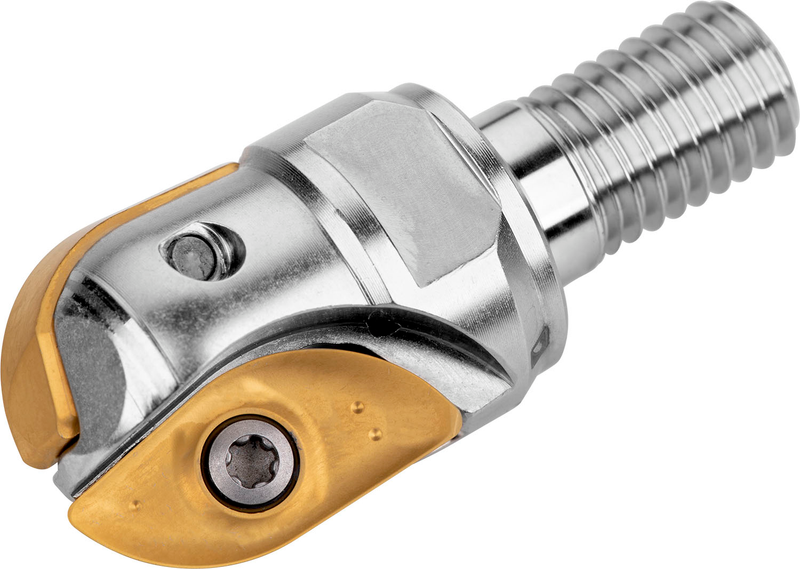

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 12.., diamètre de coupe de 12 mm avec queue filetée M8 pour porte-outils modulaires standards, longueur de projection de 25 mm pour le fraisage à copier avec une profondeur de coupe maximale de 10,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12L2R025M08-SZP12
Product Number6761662
Product FamilyL2-SZP

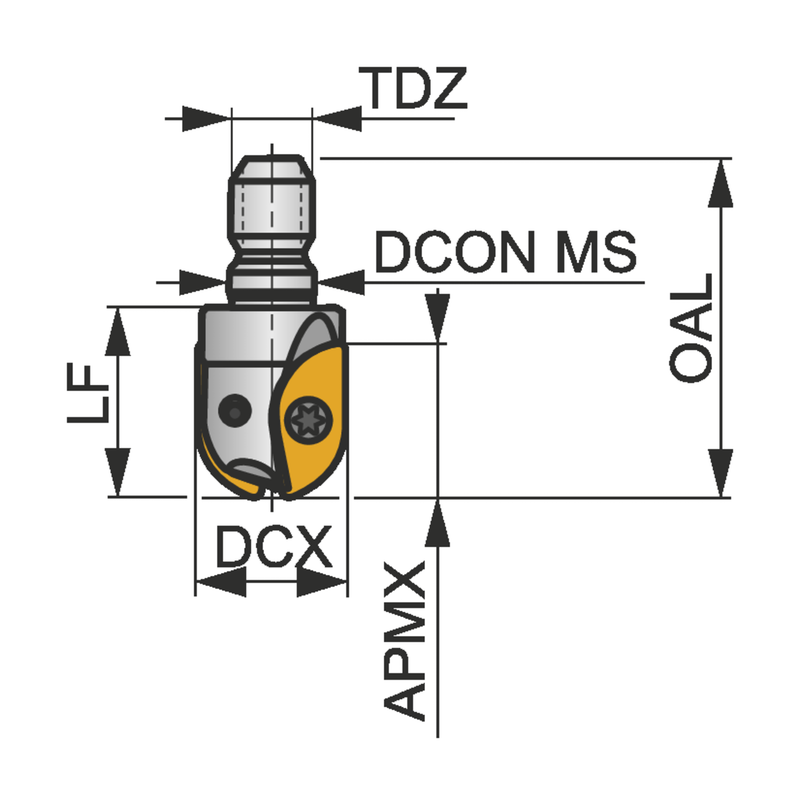

Insert Geometry
Depth of Cut Max — mm (APMX)10.7 mm
Dimensions
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignL2-SZP
ShankRaccord fileté
Direction of ToolD'accord
Reference Numbers
EDP Number6761662
EAN3603602970084
File Type Download
12L2R025M08-SZP12 — 3D Model STP Download
12L2R025M08-SZP12 — 2D Model DXF Download
12L2R025M08-SZP12 — Line Drawing PDF Download
