16L2R025M08-SZP16
16L2R025M08-SZP16
16L2R025M08-SZP16

16L2R025M08-SZP16

UGC DOR6761663
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$542.00 CAD - $542.00 CAD
$542.00 CAD
$542.00 CAD - $542.00 CAD
$542.00 CAD

Vendu en lots de : 1

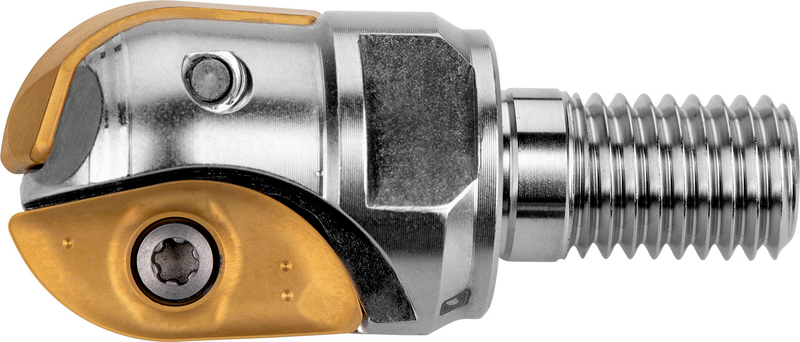

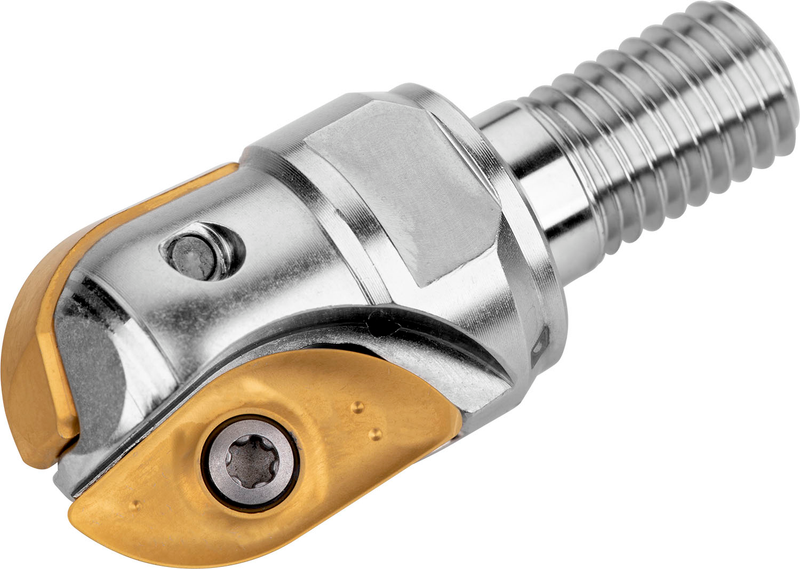

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 16.., diamètre de coupe 16mm avec queue filetée M8 pour porte-outils modulaires standard, longueur de dépassement de 25mm pour le fraisage en plongée avec une profondeur de coupe maximale de 14,4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16L2R025M08-SZP16
Product Number6761663
Product FamilyL2-SZP

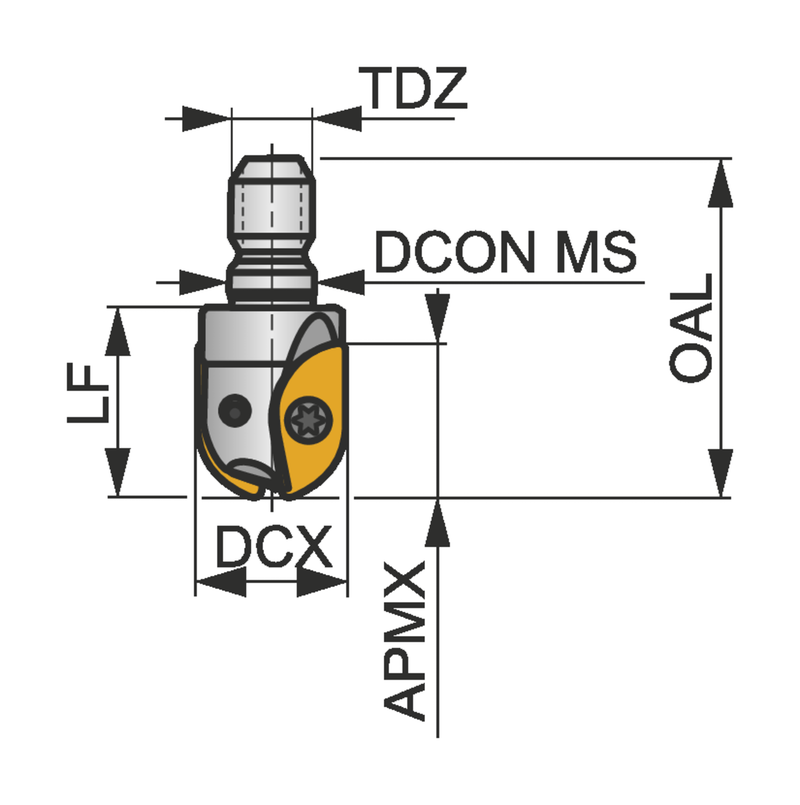

Insert Geometry
Depth of Cut Max — mm (APMX)14.4 mm
Dimensions
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignL2-SZP
ShankRaccord fileté
Direction of ToolD'accord
Reference Numbers
EDP Number6761663
EAN3603602970091
File Type Download
16L2R025M08-SZP16 — 3D Model STP Download
16L2R025M08-SZP16 — 2D Model DXF Download
16L2R025M08-SZP16 — Line Drawing PDF Download
