20L2R030M10-SZP20-C
20L2R030M10-SZP20-C
20L2R030M10-SZP20-C

20L2R030M10-SZP20-C

UGC DOR6761664
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$577.00 CAD - $577.00 CAD
$577.00 CAD
$577.00 CAD - $577.00 CAD
$577.00 CAD

Vendu en lots de : 1

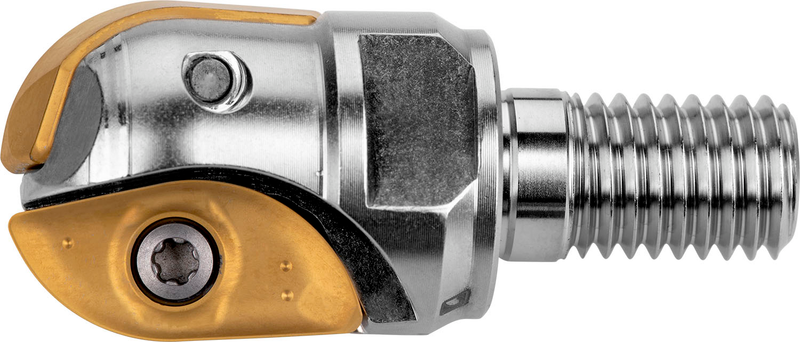

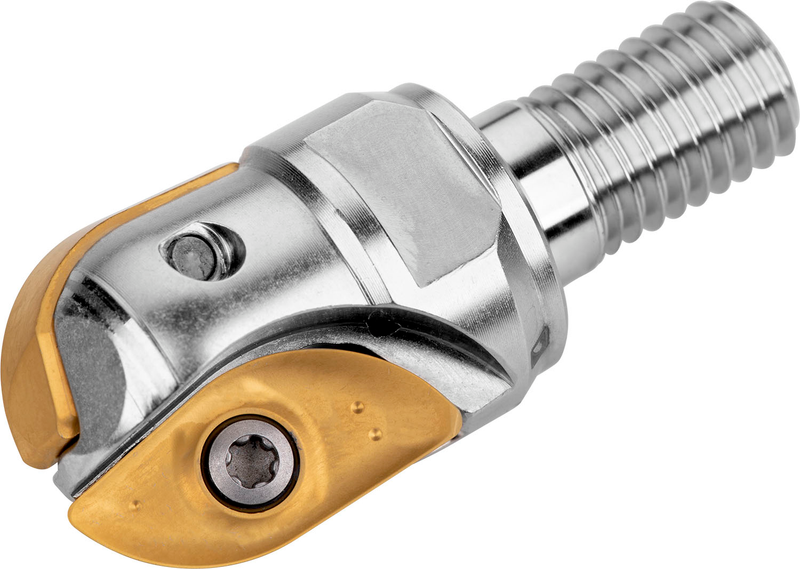

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple-face ZP 20.., diamètre de coupe 20mm avec queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement 30mm, arrosage central pour fraisage en copiage avec une profondeur de coupe maximale de 17,9mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20L2R030M10-SZP20-C
Product Number6761664
Product FamilyL2-SZP

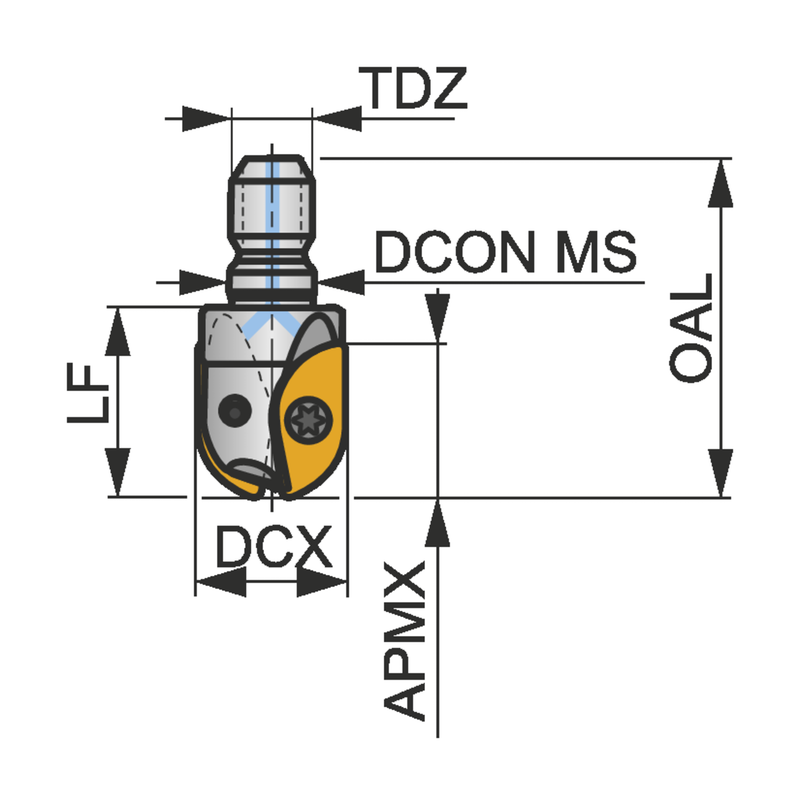

Insert Geometry
Depth of Cut Max — mm (APMX)17.9 mm
Dimensions
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignL2-SZP
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761664
EAN3603602970107
File Type Download
20L2R030M10-SZP20-C — 3D Model STP Download
20L2R030M10-SZP20-C — 2D Model DXF Download
20L2R030M10-SZP20-C — Line Drawing PDF Download
