25L2R035M12-SZP25-C
25L2R035M12-SZP25-C
25L2R035M12-SZP25-C

25L2R035M12-SZP25-C

UGC DOR6761665
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$641.00 CAD - $641.00 CAD
$641.00 CAD
$641.00 CAD - $641.00 CAD
$641.00 CAD

Vendu en lots de : 1

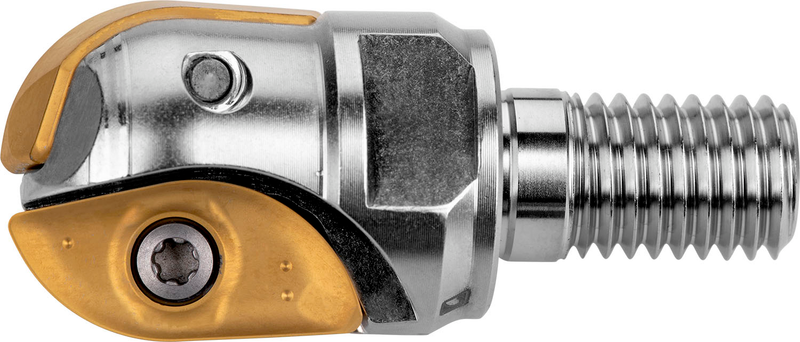

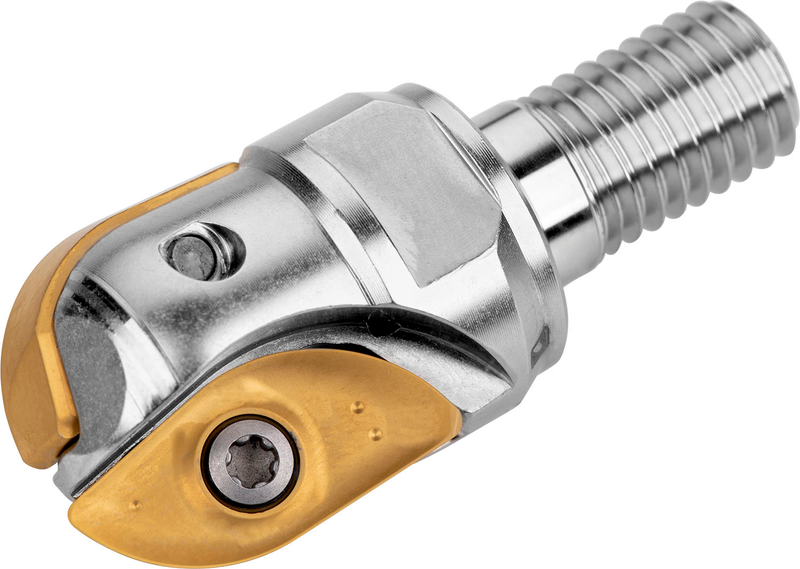

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face ZP 25..., diamètre de coupe 25 mm avec queue filetée M12 pour porte-outils modulaires standards, longueur de dépassement 35 mm, arrosage interne pour le fraisage en plongée avec une profondeur de coupe maximale de 22,3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25L2R035M12-SZP25-C
Product Number6761665
Product FamilyL2-SZP

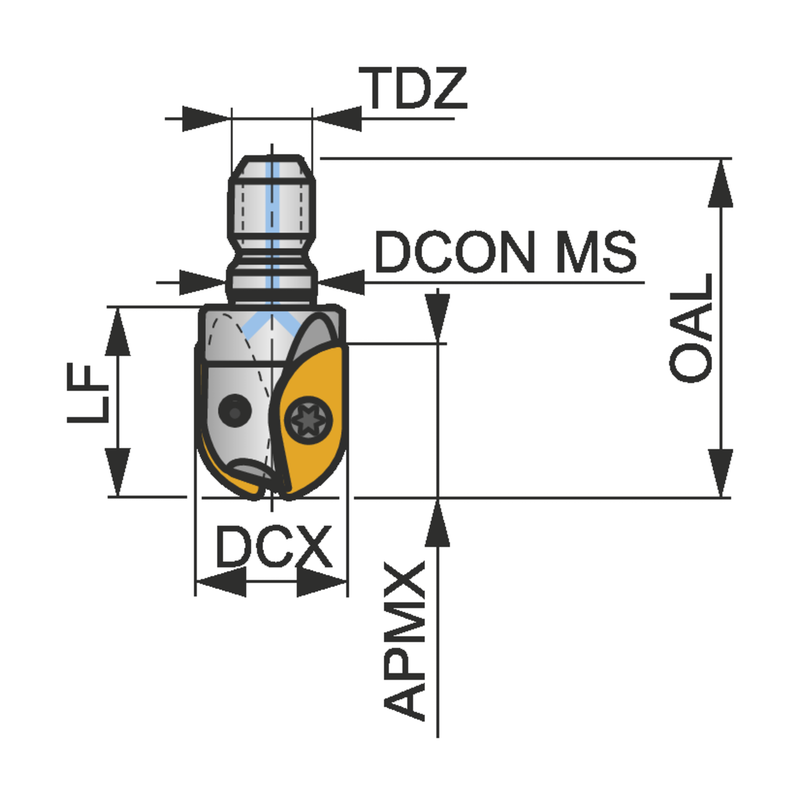

Insert Geometry
Depth of Cut Max — mm (APMX)22.3 mm
Dimensions
Functional Length — mm (LF)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignL2-SZP
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761665
EAN3603602970114
File Type Download
25L2R035M12-SZP25-C — 3D Model STP Download
25L2R035M12-SZP25-C — 2D Model DXF Download
25L2R035M12-SZP25-C — Line Drawing PDF Download
