32L2R045M16-SZP32-C
32L2R045M16-SZP32-C
32L2R045M16-SZP32-C

32L2R045M16-SZP32-C

UGC DOR6761666
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$736.00 CAD - $736.00 CAD
$736.00 CAD
$736.00 CAD - $736.00 CAD
$736.00 CAD

Vendu en lots de : 1

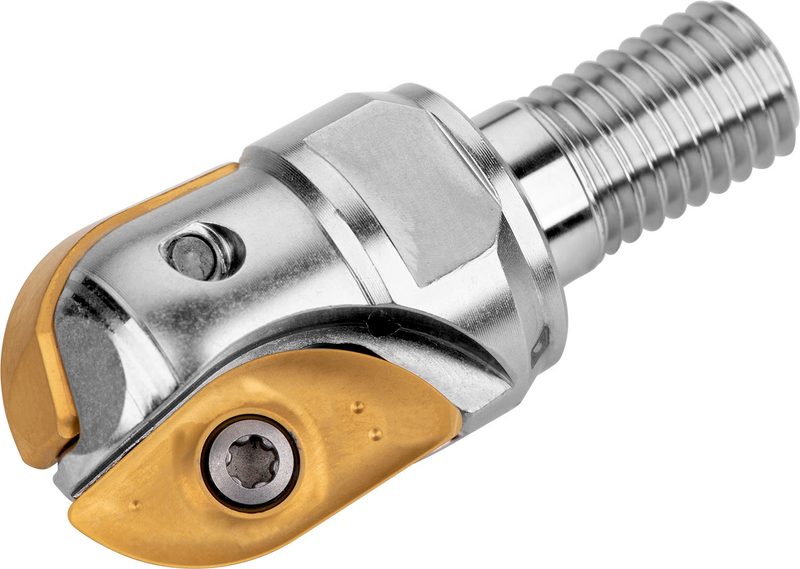

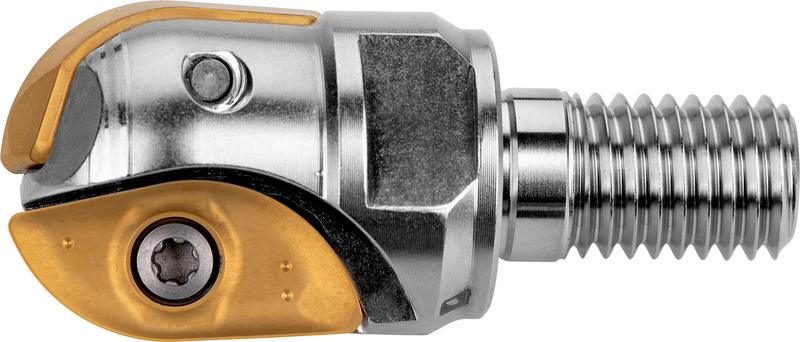

Fraise à copier avec double géométrie négative utilisant 2 plaquettes ZP 32 simple face, diamètre de coupe de 32 mm avec queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 45 mm, arrosage central pour le fraisage de reproduction avec une profondeur de coupe maximale de 27,9 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32L2R045M16-SZP32-C
Product Number6761666
Product FamilyL2-SZP

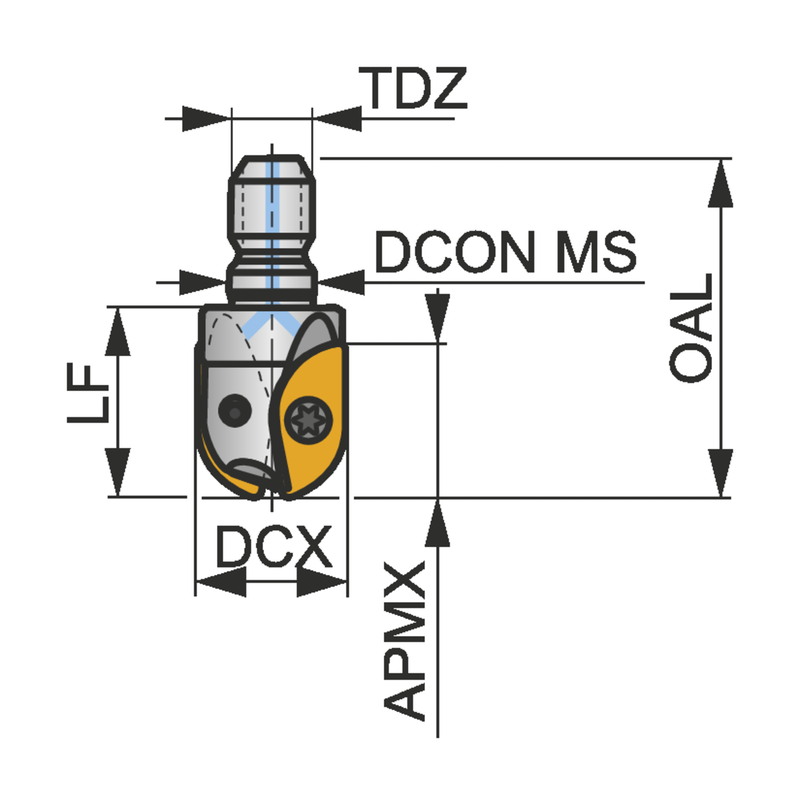

Insert Geometry
Depth of Cut Max — mm (APMX)27.9 mm
Dimensions
Functional Length — mm (LF)45.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignL2-SZP
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761666
EAN3603602970121
File Type Download
32L2R045M16-SZP32-C — 3D Model STP Download
32L2R045M16-SZP32-C — 2D Model DXF Download
32L2R045M16-SZP32-C — Line Drawing PDF Download
