100A05R-S57PN13
100A05R-S57PN13
100A05R-S57PN13

100A05R-S57PN13

UGC DOR6761667
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,302.00 CAD - $1,302.00 CAD
$1,302.00 CAD
$1,302.00 CAD - $1,302.00 CAD
$1,302.00 CAD

Vendu en lots de : 1

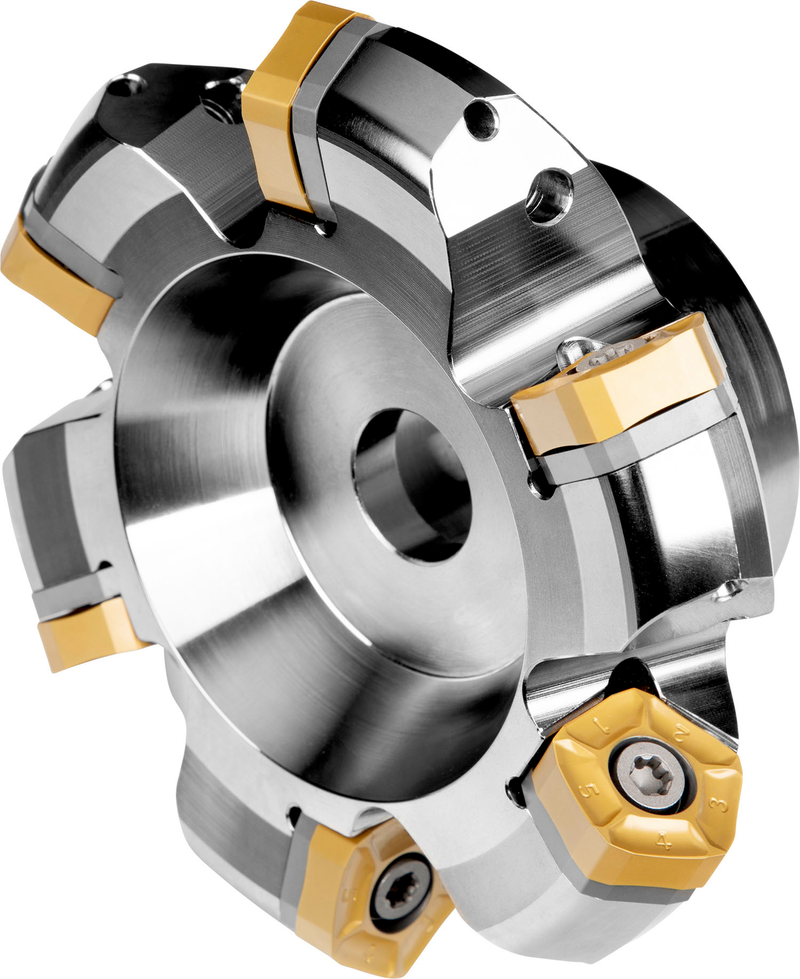

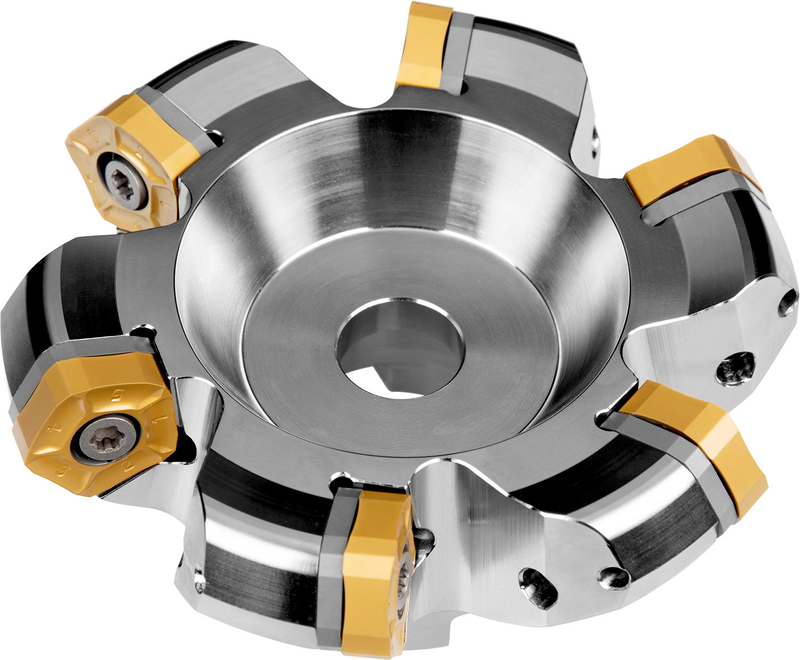

Fraise à surfacer à géométrie double négative qui utilise 5 plaquettes double face PNMU 1308DN.. ou PNMQ 1308DN.., diamètre de coupe 100 à maximum 115,8 mm avec un angle d'attaque de 57° et un alésage de connexion de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm pour le surfaçage avec une profondeur de coupe maximale de 10,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A05R-S57PN13
Product Number6761667
Product FamilySPN13
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

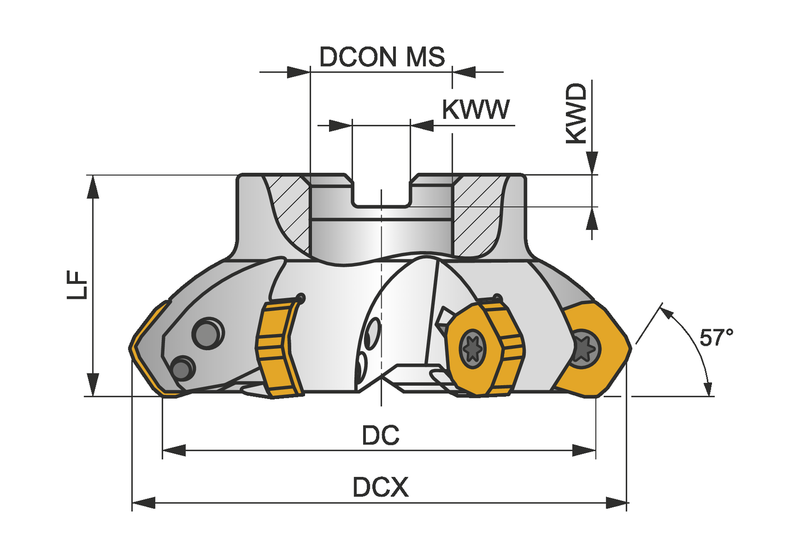

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPN13
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6761667
EAN3603602970138
File Type Download
100A05R-S57PN13 — 3D Model STP Download
100A05R-S57PN13 — 2D Model DXF Download
100A05R-S57PN13 — Line Drawing PDF Download
