125A06R-S57PN13
125A06R-S57PN13
125A06R-S57PN13

125A06R-S57PN13

UGC DOR6761673
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,581.00 CAD - $1,581.00 CAD
$1,581.00 CAD
$1,581.00 CAD - $1,581.00 CAD
$1,581.00 CAD

Vendu en lots de : 1

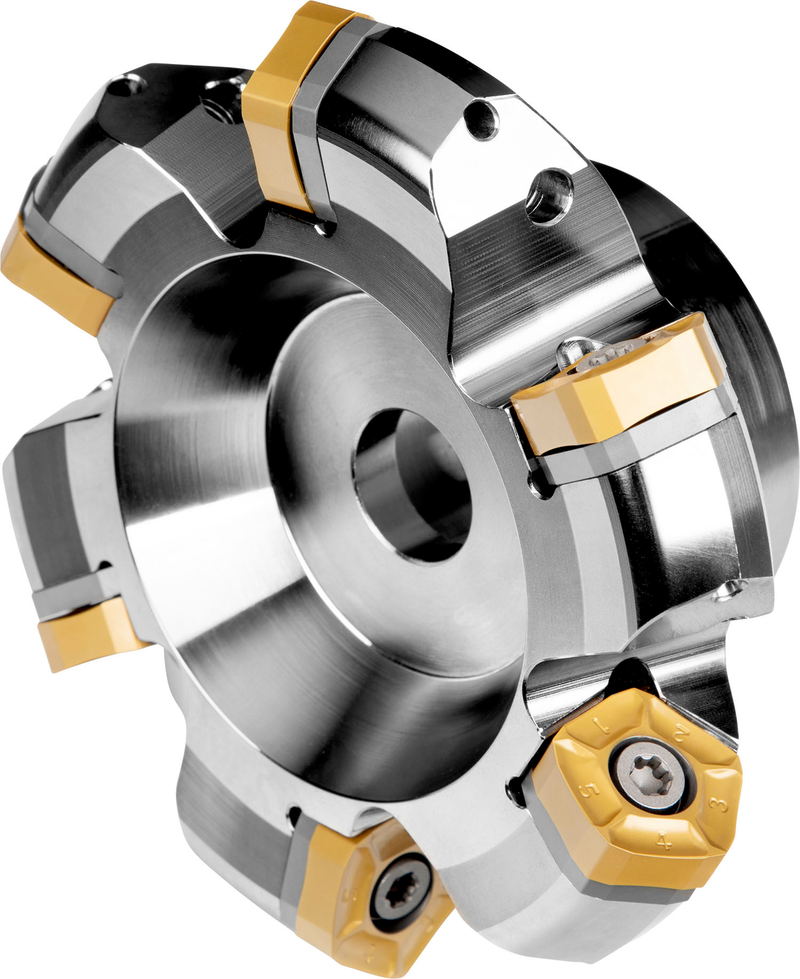

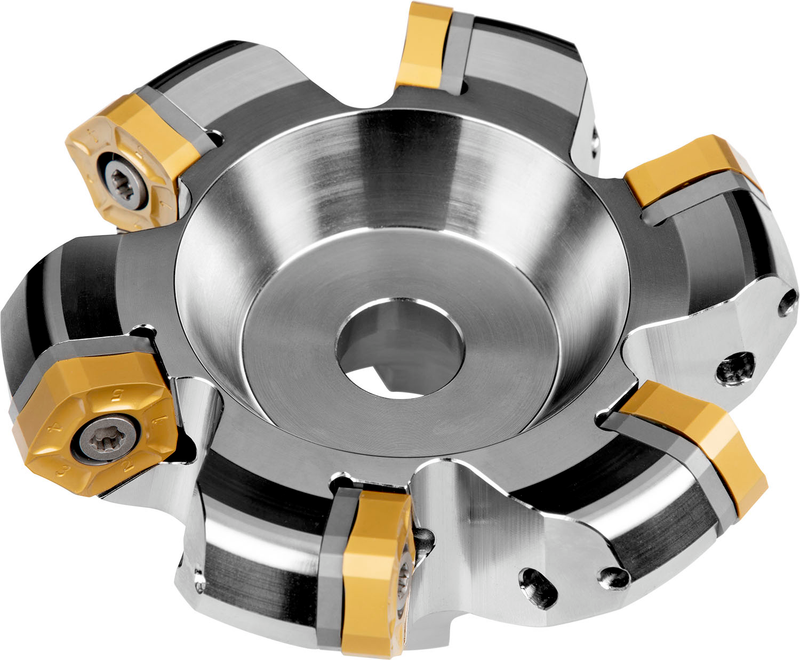

Fraise à surfacer avec géométrie double négative qui utilise 6 plaquettes double face PNMU 1308DN... ou PNMQ 1308DN..., diamètre de coupe de 125 à 140,8 mm maximum, avec un angle d'attaque de 57° et un alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm pour le surfaçage avec une profondeur de coupe maximale de 10,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A06R-S57PN13
Product Number6761673
Product FamilySPN13
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

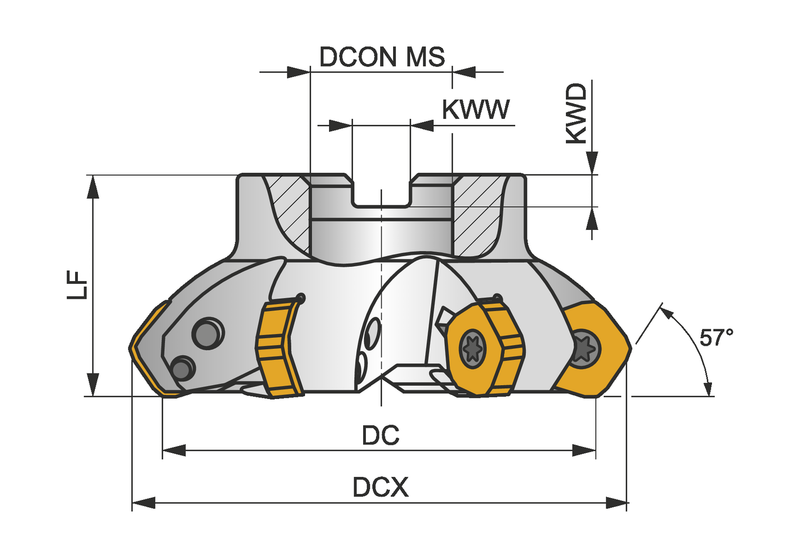

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSPN13
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6761673
EAN3603602970190
File Type Download
125A06R-S57PN13 — 3D Model STP Download
125A06R-S57PN13 — 2D Model DXF Download
125A06R-S57PN13 — Line Drawing PDF Download
