250C12R-S57PN13
250C12R-S57PN13
250C12R-S57PN13

250C12R-S57PN13

UGC DOR6761676
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,415.00 CAD - $3,415.00 CAD
$3,415.00 CAD
$3,415.00 CAD - $3,415.00 CAD
$3,415.00 CAD

Vendu en lots de : 1

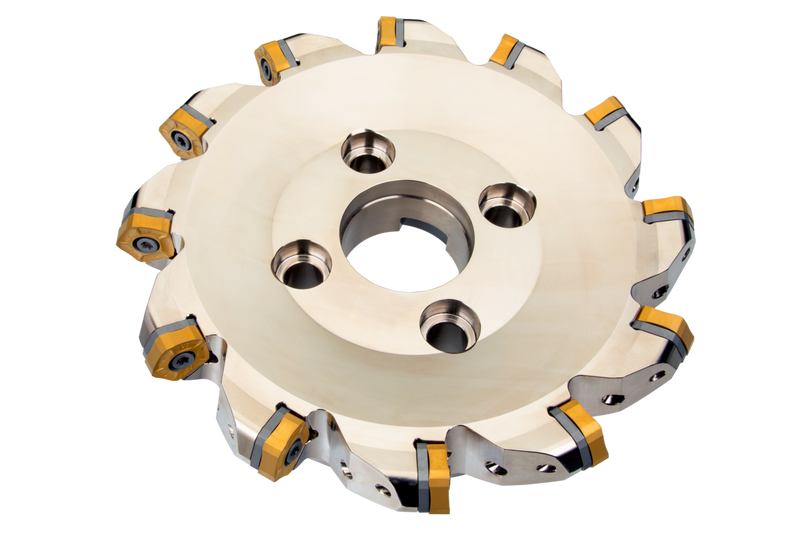

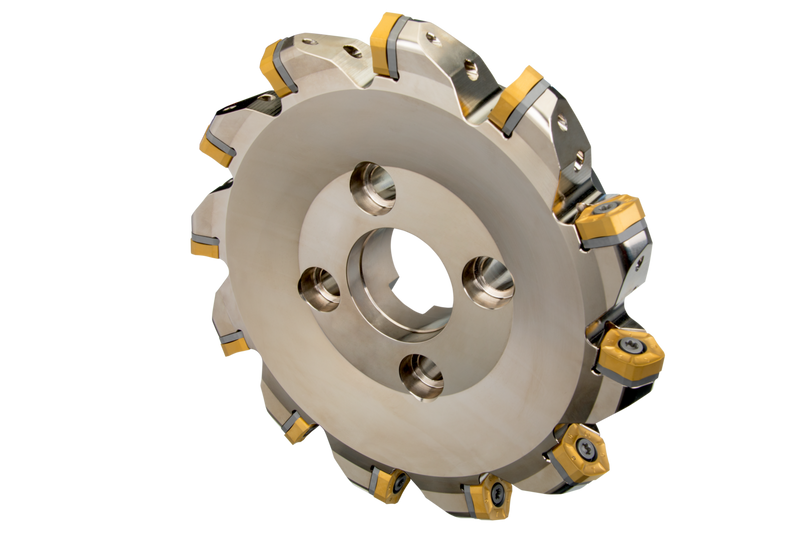

Fraise à surfacer avec géométrie double négative qui utilise 12 plaquettes double face PNMU 1308DN.. ou PNMQ 1308DN.., diamètre de coupe de 250 à 265,8 mm maximum avec un angle d'attaque de 57° et un alésage de raccordement de 60 mm selon DIN 8030-C, longueur de saillie de 63 mm pour le surfaçage avec une profondeur de coupe maximale de 10,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250C12R-S57PN13
Product Number6761676
Product FamilySPN13
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

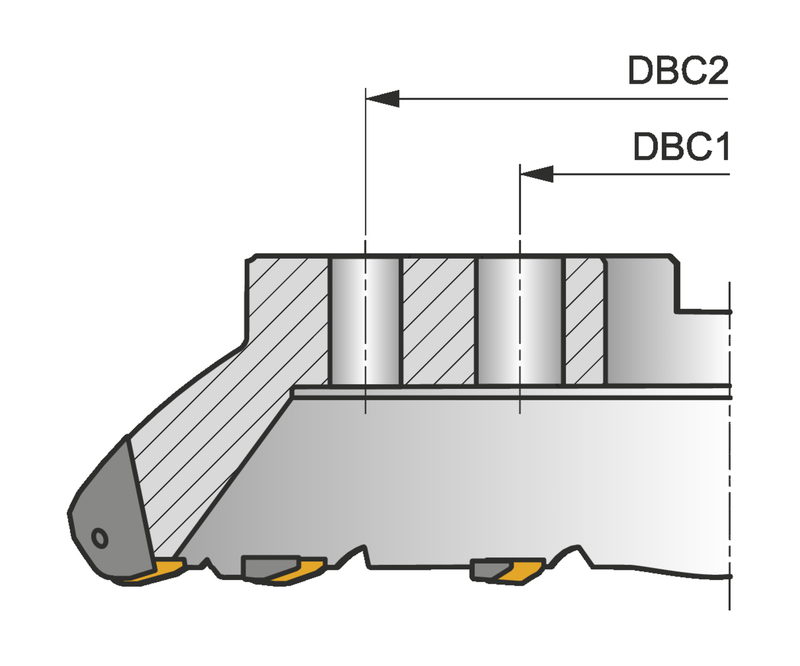

Dimensions
Cutting Diameter — in (DC)9.843"
Cutting Diameter — mm (DC)250.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSPN13
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Reference Numbers
EDP Number6761676
EAN3603602970220
File Type Download
250C12R-S57PN13 — 3D Model STP Download
250C12R-S57PN13 — 2D Model DXF Download
250C12R-S57PN13 — Line Drawing PDF Download
