315C14R-S57PN13
315C14R-S57PN13
315C14R-S57PN13

315C14R-S57PN13

UGC DOR6761677
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5,153.00 CAD - $5,153.00 CAD
$5,153.00 CAD
$5,153.00 CAD - $5,153.00 CAD
$5,153.00 CAD

Vendu en lots de : 1

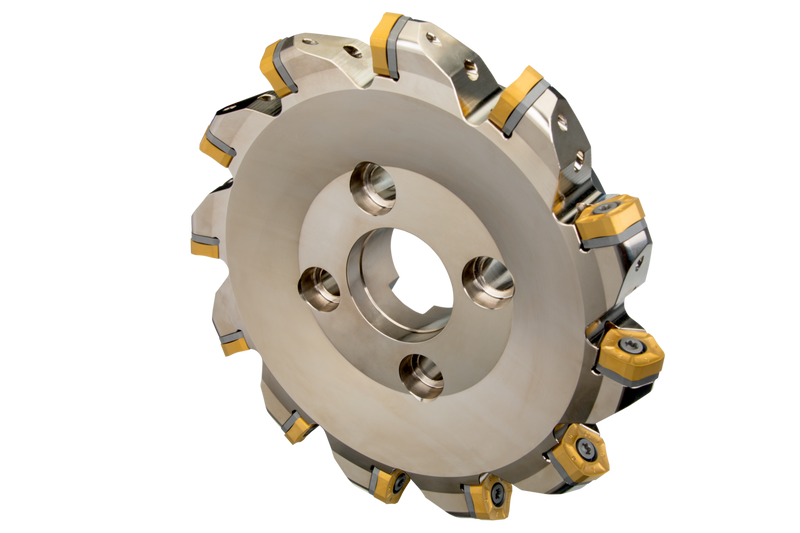

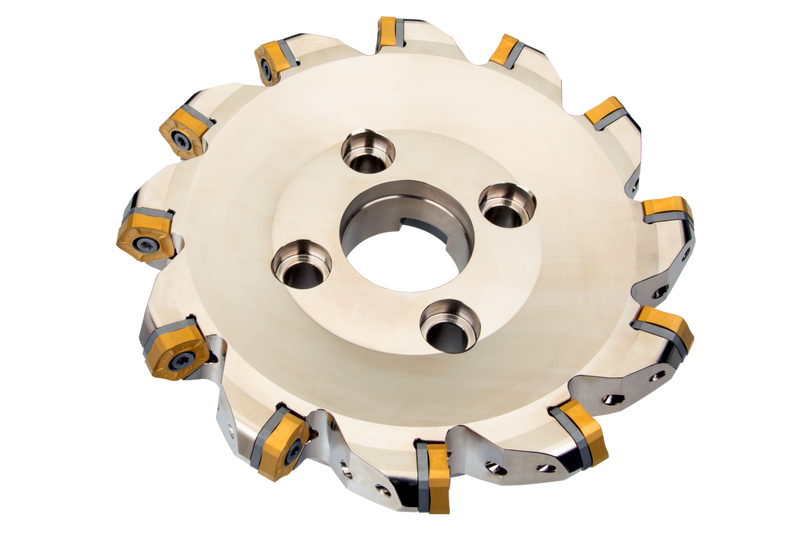

Fraise à surfacer à géométrie doublement négative qui utilise 14 plaquettes double-face PNMU 1308DN.. ou PNMQ 1308DN.., diamètre de coupe de 315 à 330,8 mm maximum avec un angle d'attaque de 57° et un alésage de connexion de 60 mm selon la norme DIN 8030-C, longueur de dépassement de 80 mm pour le surfaçage avec une profondeur de coupe maximale de 10,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)315C14R-S57PN13
Product Number6761677
Product FamilySPN13
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

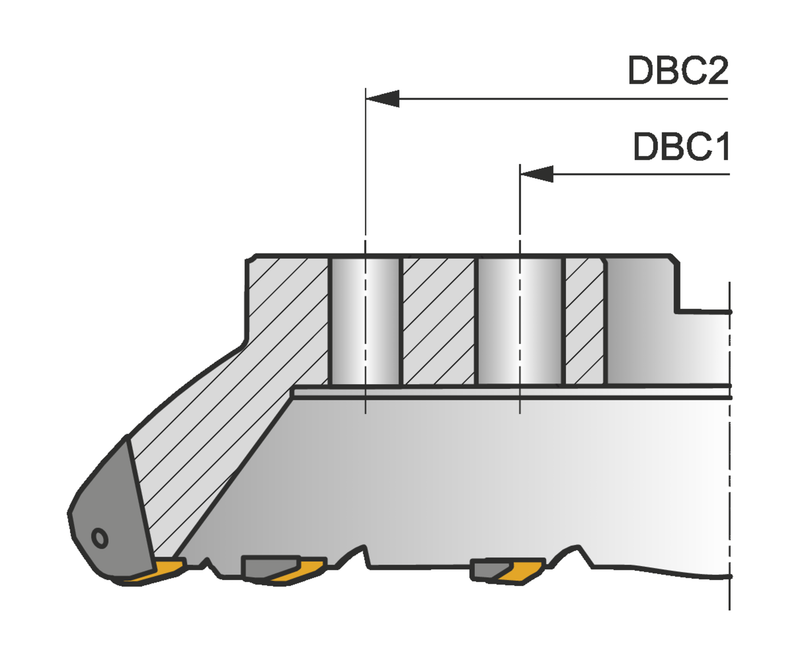

Dimensions
Cutting Diameter — in (DC)12.402"
Cutting Diameter — mm (DC)315.0 mm
Functional Length — mm (LF)80.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignSPN13
ShankFraise-scie DIN 8030 C
Direction of ToolD'accord
Reference Numbers
EDP Number6761677
EAN3603602970237
File Type Download
315C14R-S57PN13 — 3D Model STP Download
315C14R-S57PN13 — 2D Model DXF Download
315C14R-S57PN13 — Line Drawing PDF Download
